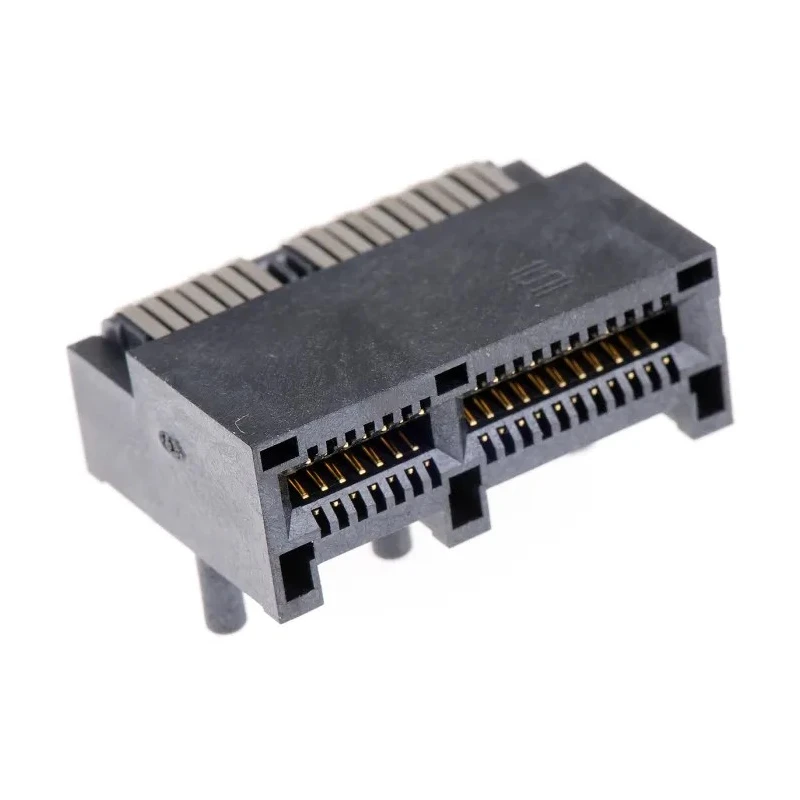

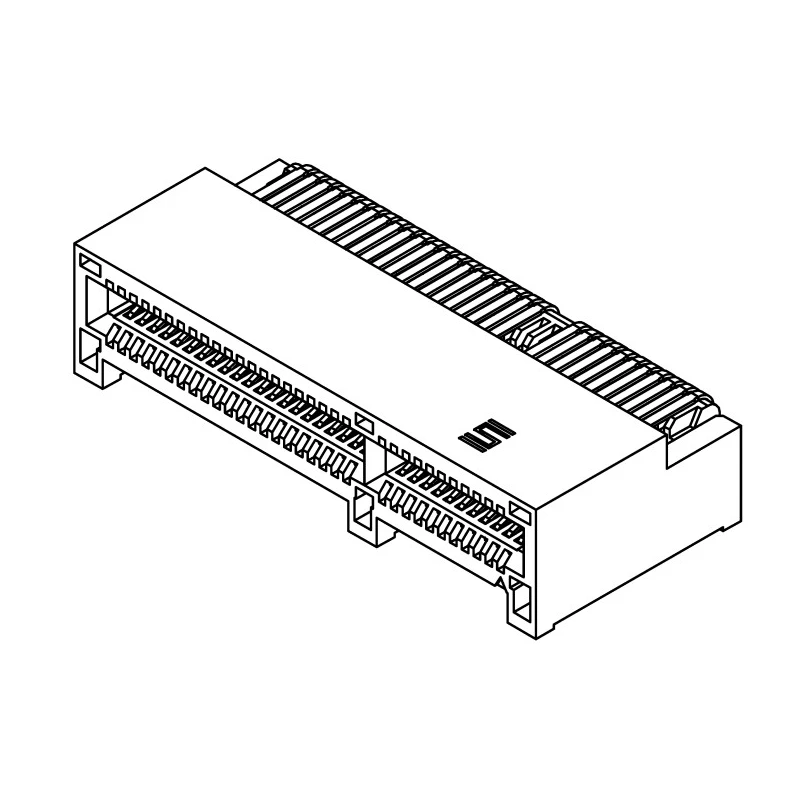

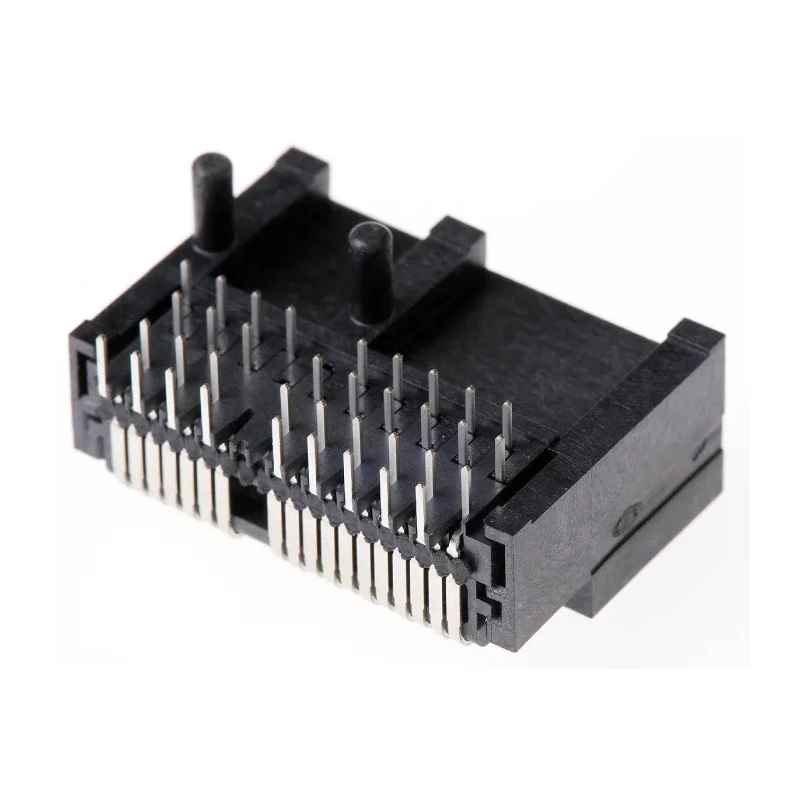

Samtec PCIe Series Right Angle Edge Connector Female, Through Hole, 36 Contacts, 1 mm Pitch, 2 Row, Gold PCIE-036-02-F-D-RA

Samtec PCIE-036-02-F-D-RA is a high-quality right angle edge connector designed specifically for PCIe 3.0 cards. Featuring 36 female contacts arranged in 2 rows with 1 mm pitch, this connector provides secure and reliable connections for computer graphics, networking, and other peripheral interface cards. Its nickel and gold-plated phosphor bronze contacts ensure superior conductivity and resistance to corrosion, critical for maintaining signal integrity in industrial and commercial electronic applications.

The connector body is made from durable nylon material, which delivers excellent insulation and mechanical stability under demanding temperatures ranging from -55°C to 125°C. Its through-hole solder mounting type and housing alignment pins guarantee a straightforward and robust attachment to PCBs, facilitating efficient assembly processes for manufacturers.

Designed for a maximum current rating of 2.4A and voltage rating of 215V AC, this Samtec Edge Connector supports a broad range of applications including home computer assembly, industrial robotics, and beverage production machinery requiring reliable, high-speed peripheral connectivity.

This product incorporates safety features such as polarising keys to prevent misalignment of cards, protecting sensitive equipment from damage during installation. Its right angle configuration helps save PCB space while maintaining excellent accessibility.

Right angle orientation allows compact PCB layouts. High quality gold plated phosphor bronze contacts ensure electrical reliability and corrosion resistance. Nylon housing provides electrical insulation and toughness. Wide operating temperature range suited for industrial environments.

Solder termination enables solid electrical and mechanical connection. Polarising keys protect against incorrect card insertion. Supports PCIe 3.0 standard and PCI card types for compatibility. Alignment pins simplify proper mounting and assembly.

Ideal for use in electronics manufacturing, industrial automation, telecommunications, and other commercial electronics where robust PCIe connectivity is essential. Browse more connectors and related components in EnvMart’s comprehensive catalog.
