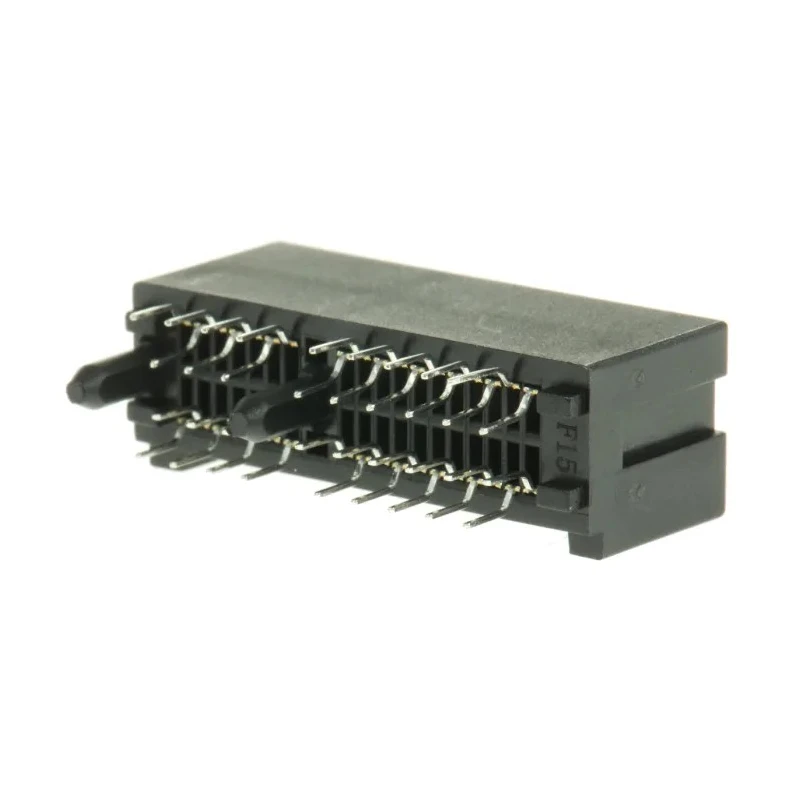

Samtec PCIe Series Straight Edge Connector Female 36-Contacts 1 mm Pitch 2 Row Through Hole 2.5A Current PCIE-036-02-F-D-TH

Samtec PCIE-036-02-F-D-TH PCIe Series Straight Edge Connector Female is designed for professional electronic assemblies requiring robust PCB edge connectivity. This connector features 36 female contacts arranged in two rows with a 1 mm pitch, supporting a maximum current rating of 2.5A. It mounts through hole with solder termination, ensuring secure mechanical and electrical connections.

The connector's gold over nickel contact plating enhances corrosion resistance for durability even in humid environments while the phosphor bronze contacts provide excellent signal conductivity supporting speeds of up to 14 Gbps. Its nylon housing offers effective insulation, protecting against electrical shock risks.

Engineered for reliable operation in harsh environments, it tolerates temperature ranges from -55°C to 125°C. The connector is compatible with 1.6 mm thick expansion cards, common in PCIe applications. Its compact overall dimensions of 25 mm length, 7.5 mm width, and 11 mm depth allow seamless integration in confined electronic assemblies.

Installation is straightforward; users insert the integrated pins through PCB holes and solder to fix the connector firmly. Alignment pins assist in precise placement to prevent misalignment during board assembly.

This edge connector is ideal for diverse industrial and commercial uses including server infrastructure, gaming systems, smart home appliances, and military-grade equipment where reliable signal transmission and electrical performance are critical.

Polarized for correct mating to prevent damage. Alignment pins ensure precise board positioning. Compact size for densely packed PCB environments. Gold over nickel plating resists corrosion. Phosphor bronze contacts speed signal transmission.

Nylon housing provides insulation and safety. Supports wide operating temperature range (-55°C to 125°C). Compatible with 1.6 mm thick expansion cards. Through hole mount with solder termination for secure connection. Explore the Electronics Components category at EnvMart for a wide range of high-quality connectors including other PCIe Edge Connectors from renowned brands such as Samtec.
