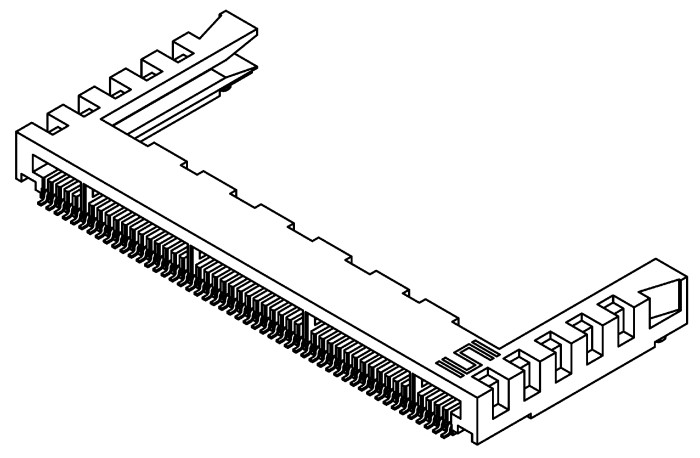

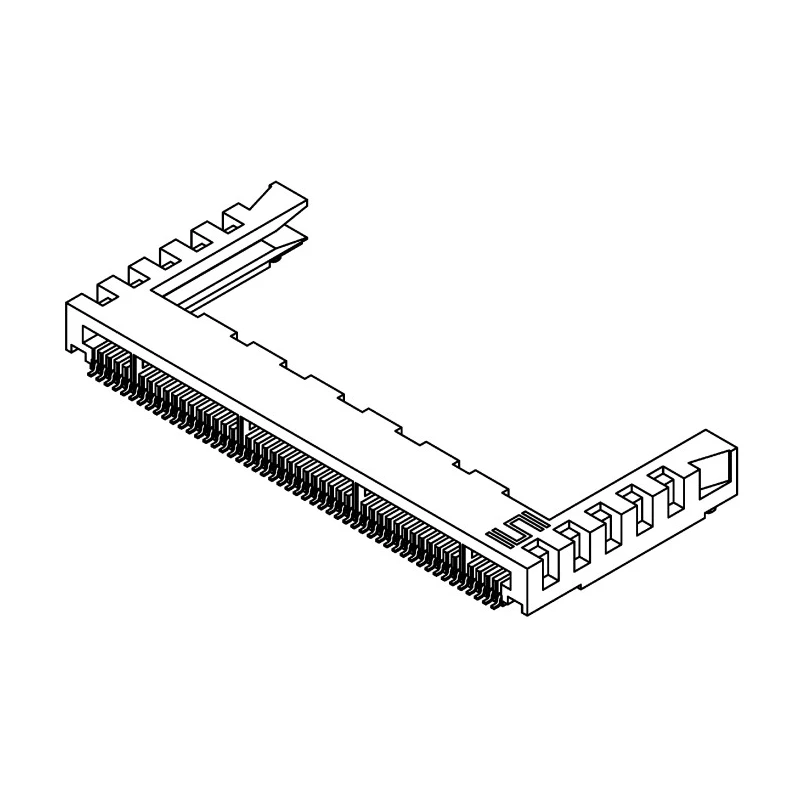

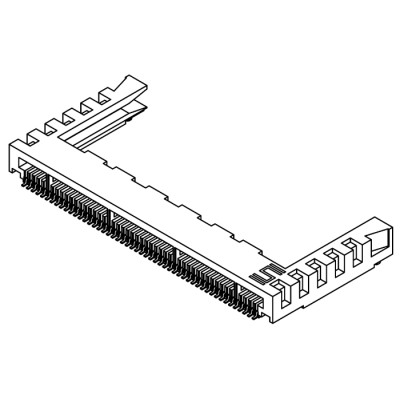

Samtec MB1 Series Straight Edge Connector Female Surface Mount 50 Contacts 1 mm Pitch 1 Row Solder MB1-150-01-L-S-01-SL
Specifications
| Country of Origin | India |
|---|---|
| Brand | Samtec |
| Orientation | Straight |
| Current | 2.2A |
| Model | MB1-150-01-L-S-01-SL |
| Mount Type | Surface |
| Housing Material | Liquid Crystal Polymer |
| Contact Material | Beryllium Copper Alloy |
| Series | MB1 |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 1 |
| Pitch | 1mm |
| Contact Plating | Gold over Nickel |
| Number of Contacts | 50 |
| Contact Gender | Female |
| Connector Gender | Female |
| Card Type | Edge |
| Card Thickness | 0.8mm |
| Insulator Material | Black LCP |
| MB1-1xx-01-L-S-02-SL | take 1.6 mm thick cards |
| MB1-1xx-01-L-S-01-SL | take 0.8 mm thick cards |
Key Features
- This connector accommodates a single-row edge card with a thickness of 0.8 mm.
- Contact plating is gold over nickel, ensuring reliable low resistance connections and corrosion resistance.
- It supports a maximum operating temperature of 125°C and a minimum temperature of -55°C, suitable for harsh environments.
- The contact material is beryllium copper alloy for high conductivity and durability.
- Termination type is solder, providing secure electrical and mechanical connections.
- The housing is constructed from black liquid crystal polymer (LCP) providing excellent insulation and mechanical strength.
- It is part of the MB1 series family of mini edge card sockets with precise insertion depth and gold plating on contacts.
- Suitable for industrial electronics, computing, telecommunication, and embedded systems requiring reliable edge connection interfaces.
Product Description
Samtec MB1-150-01-L-S-01-SL is a high-quality edge connector designed for female contacts in a straight orientation with surface mount technology. It features 50 contacts arranged in a single row with a 1 mm pitch, accommodating 0.8 mm thick edge cards.
Its contacts are plated with 0.25 μm gold over nickel for reliable signal transmission and resistance to oxidation, utilizing beryllium copper alloy as the contact material for superior conductivity and mechanical resilience.
The connector operates reliably in temperatures ranging from -55°C to 125°C, suitable for demanding industrial and electronic environments. The housing is made from durable black liquid crystal polymer, which provides excellent insulation and a rugged form factor.
Termination is by solder, enabling robust mechanical and electrical connections on printed circuit boards. This MB1 series connector is engineered with guides for proper card insertion with an insertion depth between 5.26 mm and 6.1 mm, improving assembly precision and connector lifespan.
This product is widely used in electronics manufacturing, telecommunications equipment, computing hardware, and embedded systems where secure and stable edge card connections are critical.
This edge connector's compact design supports 0.8 mm thick cards for versatile applications. Gold over nickel plating delivers low contact resistance and long service life. Beryllium copper alloy contacts ensure excellent electrical and mechanical performance.
Robust black liquid crystal polymer housing offers high thermal and mechanical endurance. Surface mount termination provides reliable solder joint integrity. Suitable for industrial, telecommunications, computing, and embedded system applications.
Designed for high volume manufacturing environments ensuring efficient installation. Part of Samtec's MB1 series known for precision and quality in Edge Connectors. Explore more quality industrial connectors and components from Samtec on EnvMart for your electronic system design and manufacturing projects.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum current rating for this model is 2.2A.
The pitch size of the contacts is 1 mm.
It operates safely within a temperature range of -55°C to 125°C.
The contacts are made from beryllium copper alloy, which provides high conductivity and durability.
This connector has a total of 50 contacts.
This model uses solder termination for secure electrical and mechanical connections.
The housing is constructed from black liquid crystal polymer (LCP), offering excellent insulation and mechanical strength.
It accommodates edge cards with a thickness of 0.8 mm.
The orientation of this connector is straight.
Yes, it is suitable for high-temperature environments with a maximum operating temperature of 125°C.
This connector is commonly used in industrial electronics, computing, telecommunications, and embedded systems.
The country of origin for this connector is India.
