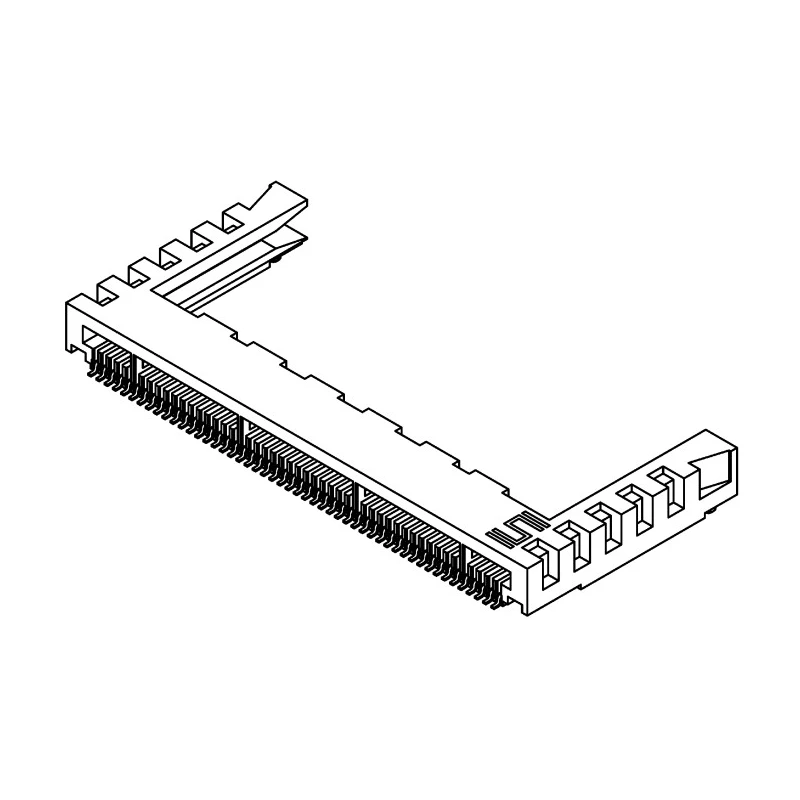

Samtec MB1 Series Straight Edge Connector Female, Surface Mount, 50 Contacts, 1 mm Pitch, 1 Row, Solder MB1-150-01-L-S-01-SL
Specifications
| Country of Origin | India |
|---|---|
| Brand | Samtec |
| Orientation | Straight |
| Current | 2.2A |
| Model | MB1-150-01-L-S-01-SL |
| Mount Type | Surface |
| Housing Material | Liquid Crystal Polymer |
| Contact Material | Beryllium Copper Alloy |
| Series | MB1 |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 1 |
| Pitch | 1mm |
| Contact Plating | Gold over Nickel |
| Number of Contacts | 50 |
| Contact Gender | Female |
| Connector Gender | Female |
| Card Type | Edge |
| Card Thickness | 0.8mm |
| Insulator Material | Black LCP |
| MB1-1xx-01-L-S-02-SL | take 1.6 mm thick cards |
| MB1-1xx-01-L-S-01-SL | take 0.8 mm thick cards |
Key Features
- Designed for precision edge card connection with 1 row configuration.
- Constructed with beryllium copper alloy contacts plated with gold over nickel for superior conductivity.
- Suitable for card thickness of 0.8 mm and operates from -55°C to 125°C.
- Solder termination type enables reliable mounting on PCB surfaces.
- Housing made from liquid crystal polymer offers enhanced durability and electrical insulation.
- Supports a maximum current rating of 2.2 A for robust electrical performance.
- Ideal for industrial electronics, computing, and embedded systems connectivity.
- Series MB1 ensures compatibility with various edge card sockets and connectors.
Product Description
The Samtec MB1-150-01-L-S-01-SL is a high-quality straight edge connector designed for female connectors in a surface mount configuration. It features 50 gold-over-nickel plated contacts arranged in a single row with a 1 mm pitch, engineered for precise and reliable connection to edge card systems.
This connector accepts edge cards with a 0.8 mm thickness and operates within a temperature range of -55°C to 125°C, making it suitable for challenging industrial environments. The contacts are made from a beryllium copper alloy that guarantees durability and excellent electrical conductivity.
The housing is crafted from black liquid crystal polymer, providing excellent mechanical strength and insulating properties. Its solder termination enables secure attachment to printed circuit boards for consistent performance.
With a current rating of 2.2 A, this connector is optimal for power and signal applications in electronics manufacturing, industrial control systems, and embedded computing modules.
Designed for precision edge card connection with 1 row configuration. Constructed with beryllium copper alloy contacts plated with gold over nickel for superior conductivity. Suitable for card thickness of 0.8 mm and operates from -55°C to 125°C.
Solder termination type enables reliable mounting on PCB surfaces. Housing made from liquid crystal polymer offers enhanced durability and electrical insulation. Supports a maximum current rating of 2.2 A for robust electrical performance.
Ideal for industrial electronics, computing, and embedded systems connectivity. Series MB1 ensures compatibility with various edge card sockets and connectors. This connector is widely used in electronic components, power and connectors, and is suitable for USB, D Sub, and computing connectors applications.
Explore the extensive range of reliable Edge Connectors by Samtec to enhance your electronic assembly performance at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum current rating for this model is 2.2 A, making it suitable for power and signal applications in various electronic systems.
The contacts in this edge connector have a pitch of 1 mm, which is designed for precise connections in edge card systems.
This connector operates within a temperature range of -55°C to 125°C, suitable for challenging industrial environments.
The contacts are made from beryllium copper alloy plated with gold over nickel, while the housing is constructed from liquid crystal polymer.
This model features 50 contacts, arranged in a single row configuration for effective edge card connection.
This connector is designed to accept edge cards with a thickness of 0.8 mm.
It uses a solder termination type, enabling reliable mounting on printed circuit boards.
The orientation of this connector is straight, designed for straightforward edge card connections.
Yes, it is ideal for industrial electronics, computing, and embedded systems connectivity.
The insulator material for this connector is black liquid crystal polymer, which provides excellent electrical insulation.
This connector belongs to the MB1 series, which ensures compatibility with various edge card sockets and connectors.
The country of origin for this connector is India.
