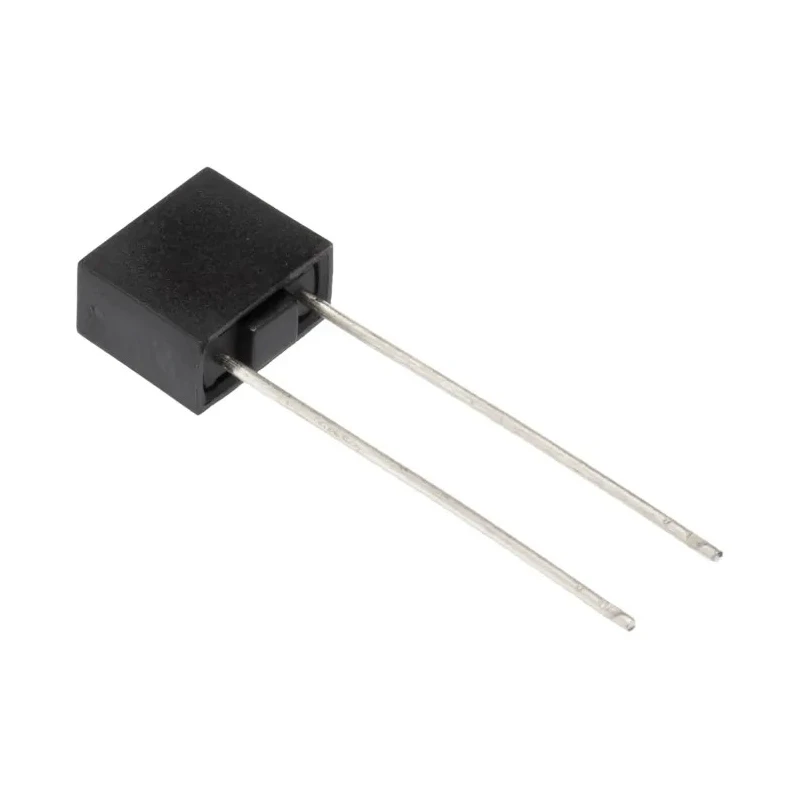

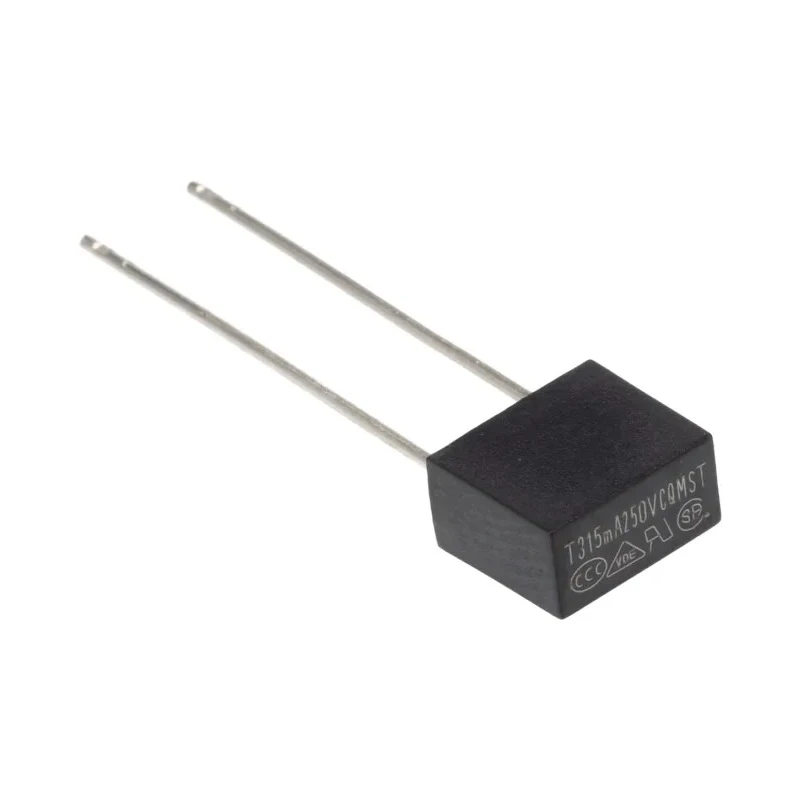

RS PRO Non-Resettable Fuse Radial 315mA 250V AC Thermoplastic Body 8.35mm Length 767-5020
Specifications
| Country of Origin | Taiwan |
|---|---|
| Voltage | 250V ac |
| Diameter | 0.62mm |
| Brand | RS PRO |
| Body Material | Thermoplastic |
| Height | 7.7mm |
| Length | 8.35mm |
| Model | 767-5020 |
| Width | 4.3mm |
| Current Rating | 315mA |
| Series | RS PRO |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Lead Length | 22mm |
| Breaking Capacity | 35A |
| Standards/Approvals | RoHS, CSA |
| Fuse Characteristics | Time Delay |
| Lead Orientation | Radial |
Key Features
- Features a thermoplastic body ensuring durability and heat resistance.
- Rated for 315mA current with a time delay fuse characteristic.
- Operates efficiently at voltages up to 250V AC.
- Compact dimensions with 8.35mm length, 4.3mm width, and 7.7mm height for easy integration.
- Radial lead orientation with 22mm lead length facilitates straightforward PCB mounting.
- High breaking capacity of 35A guarantees safety during overload conditions.
- Operates within temperature range from -55°C to 125°C for varied environmental conditions.
- Compliant with RoHS and CSA standards ensuring safety and environmental requirements.
Product Description
RS PRO 767-5020 Non-Resettable Fuse Radial 315mA 250V AC is engineered to provide reliable, time delay protection to electrical circuits, ideal for industrial, electronic, and automation systems requiring precise current regulation. Its thermoplastic polyamide body offers robust insulation and resistance to thermal and mechanical stress, ensuring long-term durability.
This fuse features radial lead orientation with tin-plated copper pins, allowing easy PCB mounting in compact spaces. The fuse's high breaking capacity of 35A safeguards circuits against overloads and short circuits effectively. It operates within a wide temperature range from -55°C to 125°C, suitable for harsh environmental conditions encountered in manufacturing, laboratory, and industrial environments.
Tested to rigorous military standards for vibration and salt spray resistance, this fuse assures operational stability and reliability over its lifecycle. Its certifications including RoHS and CSA compliance confirm adherence to global safety and environmental standards.
Durable thermoplastic polyamide body with UL 94-V0 rating. Radial lead design with 22mm length copper leads. Time delay (slow blow) fuse characteristic for temporary surges. Wide operating temperature range from -55°C to 125°C.
35A breaking capacity ensuring circuit protection. Compliant with RoHS and CSA safety standards. High insulation resistance of 10,000 ohms minimum after opening. Resistance to solder heat and thermal shock per MIL-STD-202G testing.
RS PRO 767-5020 fuse is suitable for use in industrial automation, electrical equipment, laboratory instrumentation, and commercial electronics applications requiring reliable fuse protection. Ensure circuit safety and maintain system integrity with this quality-certified Non-Resettable Fuse.
Explore more RS PRO products and electrical protection components on EnvMart for your industrial and commercial needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The current rating of this fuse is 315mA.
It operates efficiently at voltages up to 250V AC.
This model has a length of 8.35mm, a width of 4.3mm, and a height of 7.7mm.
The breaking capacity is 35A, which ensures safety during overload conditions.
It operates within a temperature range from -55°C to 125°C.
This fuse features a time delay (slow blow) characteristic, making it suitable for temporary surges.
The fuse has a radial lead orientation with a lead length of 22mm, facilitating straightforward PCB mounting.
It features a thermoplastic body, providing durability and heat resistance.
Yes, it is compliant with RoHS and CSA standards, ensuring safety and environmental requirements.
This non-resettable fuse is suitable for industrial automation, electrical equipment, laboratory instrumentation, and commercial electronics applications.
The country of origin for this fuse is Taiwan.
It has a high insulation resistance of 10,000 ohms minimum after opening.
