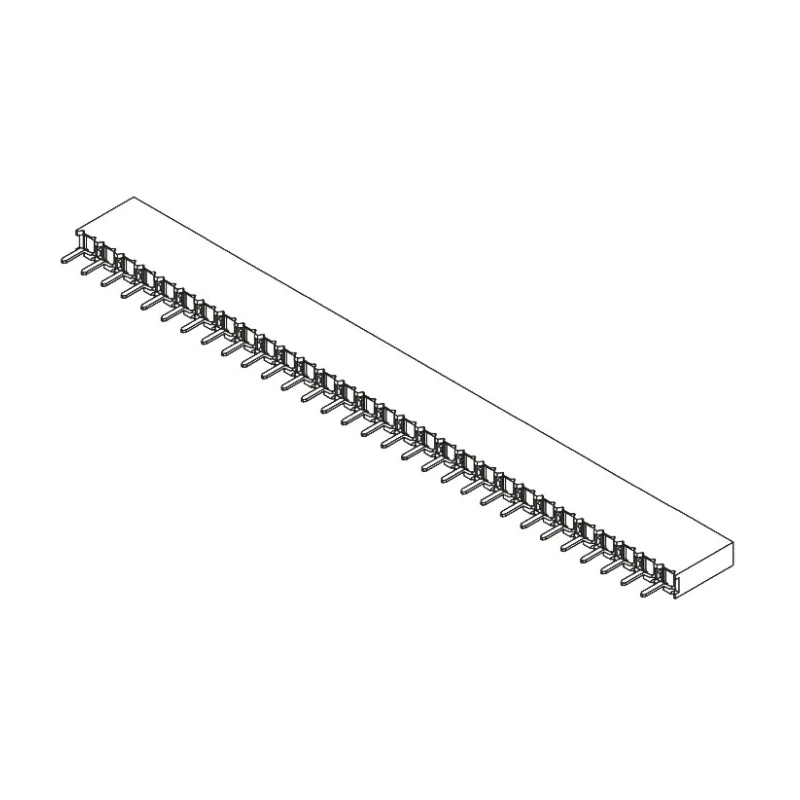

Samtec Board-to-Board 30-Contact 1 Row 2.54 mm Pitch Straight Through Hole PCB Socket BCS-130-L-S-TE
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 475V |
| Brand | Samtec |
| Orientation | Straight |
| Current | 4.6A |
| Model | BCS-130-L-S-TE |
| Mount Type | Through Hole |
| Housing Material | Liquid Crystal Polymer |
| Contact Material | Bronze |
| Series | BCS |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Sub Type | Board-to-Board |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 1 |
| Pitch | 2.54mm |
| Standards/Approvals | CHINA RoHS, EU REACH, EU RoHS |
| Contact Plating | Gold |
| Number of Contacts | 30 |
| Connector System | Board-to-Board |
| Row Pitch | 0.1in |
Key Features
- 30 contacts in a single row with 2.54 mm pitch.
- Current rating of 4.6A and voltage up to 475V.
- Housing made of durable liquid crystal polymer.
- Phosphor bronze contacts with 0.25μm gold plating.
- Through hole mount with straight orientation and solder termination.
- Operating temperature range from -55°C to +125°C.
- Meets CHINA RoHS, EU REACH, and EU RoHS standards.
- Compatible with Samtec TSW, TSM, DW, and EW series headers and stackers.
Product Description
Samtec BCS-130-L-S-TE is a high-quality board-to-board PCB socket featuring 30 contacts arranged in a single row with a standard 2.54 mm pitch. This straight through hole socket is constructed with a durable black liquid crystal polymer housing, ensuring structural integrity and reliability in industrial and electronic PCB assembly applications.
The contacts consist of phosphor bronze material with a gold plating thickness of 0.25 micrometers on the contact area, enhancing conductivity and resistance to oxidation. The tail end of the contacts is matte tin plated, optimized for solder termination to through hole PCB pads.
This connector supports an electrical current rating of 4.6 amperes and a voltage rating up to 475 volts, suitable for diverse power and signal transfer applications. It is designed to operate efficiently within a wide temperature range from -55 degrees Celsius up to +125 degrees Celsius, making it compatible with harsh environments.
The BCS series sockets are available in both top entry (TE) and horizontal entry (HE) configurations; this model is the top entry variant. It is fully compatible with complementary Samtec components including TSW and TSM series square post headers, as well as DW and EW series flexible board stackers.
Compliance with CHINA RoHS, EU REACH, and EU RoHS regulations guarantees that the product meets current environmental protection standards. The typical packaging format is a tube that facilitates handling and automated insertion during PCB assembly processes.
This PCB socket is ideal for industrial electronics, communication systems, instrumentation, and other manufacturing applications requiring board stacking or interconnection. Its robust build and material composition ensure longevity and consistency in electrical performance over repeated connect-disconnect cycles.
Careful design allows easy mating with Samtec headers and stackers to accommodate various board to board spacing requirements.
Choose Samtec BCS-130-L-S-TE for dependable, standardized PCB connectivity designed to meet demanding industrial and electronic component assembly needs. Explore more PCB Sockets and connectors available at EnvMart to complete your electronic hardware design and manufacturing requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The current rating of this model is 4.6 amperes.
It can handle a maximum voltage of up to 475 volts.
The contacts are arranged with a pitch of 2.54 mm.
The housing is made of liquid crystal polymer, and the contacts are made of phosphor bronze with a gold plating.
It operates efficiently within a temperature range from -55°C to +125°C.
Yes, it meets CHINA RoHS, EU REACH, and EU RoHS standards.
This model uses solder termination for through hole mounting.
It features a total of 30 contacts arranged in a single row.
The orientation of this socket is straight.
It is compatible with Samtec TSW, TSM, DW, and EW series headers and stackers.
The country of origin for this PCB socket is India.
The typical packaging format is a tube, which facilitates handling and automated insertion during PCB assembly processes.
