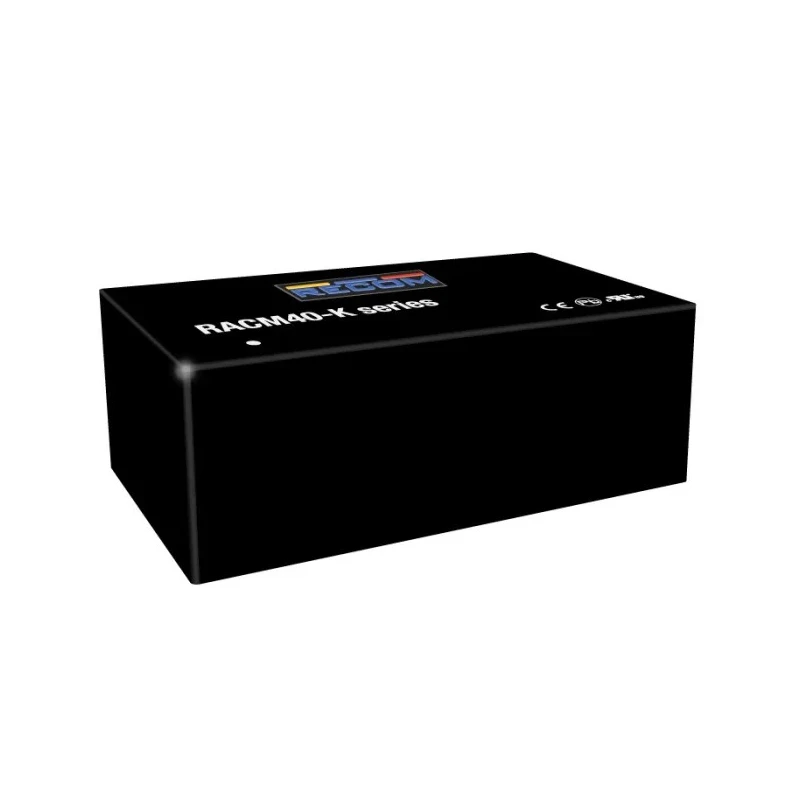

Recom Switching Power Supply 24V DC 40W AC 80-264V Chassis Mount RACM40-24SK-T
Specifications
| Country of Origin | China |
|---|---|
| Brand | Recom |
| Power | 40W |
| Efficiency | 90% |
| Length | 83.23mm |
| Model | RACM40-24SK-T |
| Width | 46.43mm |
| Mount Type | Chassis |
| Series | RACM40 |
| Output Current | 1.667A |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -40°C |
| Number of outputs | 1 |
| Maximum Input Voltage | 264V ac |
| Maximum Output Voltage | 24V dc |
| SMPS Output Current | 1.67A |
| Minimum Input Voltage | 80V ac |
Key Features
- Supports universal input voltage range from 80 to 264V AC for versatile deployment.
- Provides 24V DC output at a maximum current of 1.667A.
- Compact enclosure measuring 83.23mm length and 46.43mm width for space-saving installations.
- Certified for medical safety standards with 2xMOPP approval and low leakage current under 75µA.
- Operates reliably in temperatures between -40°C and +85°C.
- Built-in Class B EMC filter reduces electromagnetic interference.
- High efficiency of 90% ensures energy savings and reduced heat generation.
- Suitable for medical, industrial, and commercial power supply applications.
Product Description
Recom RACM40-24SK-T switching power supply offers a compact and efficient AC-DC conversion solution supplying 24V DC at up to 40W power. Designed with a chassis mount form factor, it supports a universal input voltage range of 80 to 264V AC, making it adaptable to a wide variety of power environments. The unit measures approximately 83.23mm in length and 46.43mm in width, enabling installation in constrained spaces.
This power supply is engineered for high safety and reliability, certified with 2xMOPP medical safety approvals, ensuring leakage current remains below 75 microamperes. Its certifications include EN 62233, ANSI AAMI ES 60601-1, CAN CSA-C22.2 No. 60601-1, IEC 60601-1, IEC 61010-1, IEC 61558-1, IEC 61558-2-16, and EN 62368-1, enabling medical and industrial compliance.
Featuring a built-in Class B EMC filter and a high efficiency rating of 90%, the RACM40-24SK-T maintains low electromagnetic emissions and energy consumption. It is rated to operate within a broad temperature range from -40°C to +85°C with appropriate derating beyond certain limits, suitable for demanding industrial, laboratory, medical, and commercial environments.
Typical applications include medical devices, laboratory instruments, industrial control equipment, and other scenarios requiring dependable 24V DC power supply with high safety standards. The device's chassis mount type facilitates easy, secure installation in electrical panels and control cabinets.
Supports universal input voltage from 80 to 264V AC for flexible use. Delivers stable 24V DC output at maximum 1.667A current. Compact chassis mount design measuring 83.23mm by 46.43mm. Medical safety approvals provide 2xMOPP protection with leakage current under 75µA.
High efficiency of 90% reduces energy usage and heat. Wide operating temperature range from -40°C to +85°C ensures durability. Includes Class B EMC filter to minimize interference. Complies with multiple international safety and performance standards.
Ideal for industrial, medical, and commercial power supply needs. Explore more Recom Switching Power Supplies and other high-quality power solutions at EnvMart for efficient and certified electrical components.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model provides a stable output voltage of 24V DC at a maximum current of 1.667A.
The unit measures approximately 83.23mm in length and 46.43mm in width, allowing for compact installations.
It has a high efficiency rating of 90%, which helps in reducing energy consumption and heat generation.
It operates reliably within a temperature range of -40°C to +85°C, suitable for demanding environments.
This power supply features a chassis mount design, facilitating secure installation in electrical panels and control cabinets.
It is certified with 2xMOPP medical safety approvals and complies with multiple international standards including IEC 60601-1 and EN 62368-1.
Yes, it includes a built-in Class B EMC filter to minimize electromagnetic interference.
It is suitable for medical devices, laboratory instruments, industrial control equipment, and other applications requiring reliable 24V DC power.
This model provides a single output, delivering 24V DC power.
The leakage current is maintained below 75µA, ensuring safety in medical applications.
