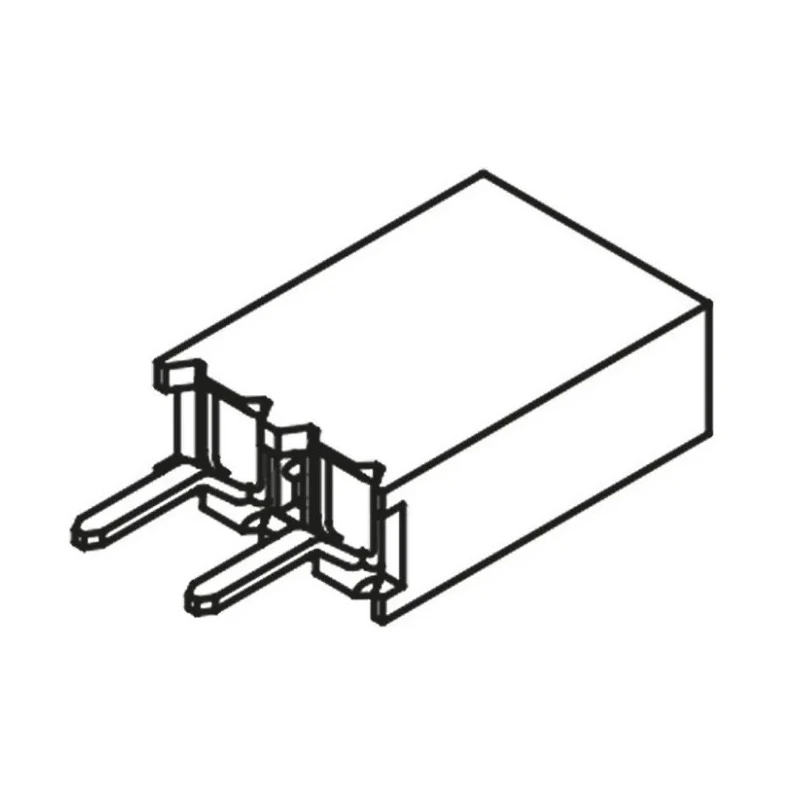

Samtec BCS Series Straight Through Hole PCB Socket, 2-Contact, 1 Row, 2.54 mm Pitch, Through Hole Mount BCS-102-L-S-TE
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 475V |
| Brand | Samtec |
| Orientation | Straight |
| Current | 4.6A |
| Model | BCS-102-L-S-TE |
| Mount Type | Through Hole |
| Housing Material | Liquid Crystal Polymer |
| Contact Material | Bronze |
| Series | BCS |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Sub Type | Board-to-Board |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 1 |
| Pitch | 2.54mm |
| Standards/Approvals | EU RoHS, CHINA RoHS, EU REACH |
| Contact Plating | Gold |
| Number of Contacts | 2 |
| Connector System | Board-to-Board |
| Row Pitch | 0.1in |
Key Features
- Standard 2.54 mm pitch ensures compatibility with industry-standard connectors.
- Constructed from black liquid crystal polymer housing for durable, heat-resistant performance.
- Contacts are phosphor bronze with 0.25μm gold plating for reliable electrical connections.
- Supports current up to 4.6 A and voltage ratings up to 475 V for versatile applications.
- Operating temperature range from -55°C to 125°C suits a wide range of industrial environments.
- Straight orientation with through hole mounting provides secure mechanical and electrical connection.
- Surface complies with EU RoHS, China RoHS, and EU REACH environmental standards.
- Mates with multiple Samtec headers and stackers, improving design flexibility.
Product Description
Samtec BCS-102-L-S-TE BCS Series Straight Through Hole PCB Socket is a high-performance board-to-board connector designed for reliable electrical connections in industrial, laboratory, and electronic manufacturing environments. Featuring a 2-contact, single row configuration with a 2.54 mm pitch, this socket supports through hole mounting and straight orientation, allowing easy integration into printed circuit boards.
The connector housing is made of black liquid crystal polymer, providing excellent mechanical durability and thermal stability with an operating temperature range of -55°C to 125°C. Contacts crafted from phosphor bronze with a 0.25μm gold plating on the contact surface and a matte tin tail plating guarantee excellent conductivity and corrosion resistance.
Rated for 4.6 A current and a maximum voltage of 475 V, this socket can handle demanding electronic applications. It meets international environmental standards including EU RoHS, China RoHS, and EU REACH, ensuring compliance with regulations for hazardous substances.
BCS series sockets mate seamlessly with Samtec TSW through hole square post headers, TSM SMT square post headers, and DW and EW flexible square board stackers, offering design flexibility across multiple board interconnect applications.
Standard 2.54 mm pitch for industry-standard compatibility. Durable liquid crystal polymer housing suitable for harsh operating environments. Gold-plated phosphor bronze contacts ensure reliable electrical conduction. Suitable for continuous operation in a wide temperature range.
Compliant with major environmental and safety standards. Designed for through hole mounting with straight orientation. Compatible with multiple Samtec connector series for versatile system design.
This PCB socket is an ideal choice for applications in electronics manufacturing, telecommunications, automotive electronics, and industrial control systems requiring secure, high-quality board-to-board connections. Explore more products in the PCB Sockets category on EnvMart for complementary components and accessories.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum current rating for this model is 4.6 A, allowing it to handle demanding electronic applications effectively.
This socket has a voltage rating of up to 475 V, making it suitable for various high-voltage applications.
The pitch of this model is 2.54 mm, which ensures compatibility with industry-standard connectors.
It features a housing made from liquid crystal polymer and contacts made from phosphor bronze with gold plating for reliable electrical connections.
This model operates within a temperature range of -55°C to 125°C, suitable for a wide range of industrial environments.
The socket is designed for through hole mounting, providing a secure mechanical and electrical connection to printed circuit boards.
It complies with EU RoHS, China RoHS, and EU REACH environmental standards, ensuring it meets regulations for hazardous substances.
The BCS-102-L-S-TE features 2 contacts, making it suitable for specific board-to-board connection needs.
This socket uses solder termination, facilitating easy integration into PCB designs.
It is compatible with multiple Samtec headers and stackers, including TSW through hole square post headers and TSM SMT square post headers, enhancing design flexibility.
The orientation of this model is straight, which aids in the alignment and connection processes during installation.
The Samtec BCS-102-L-S-TE is manufactured in India, ensuring adherence to quality standards during production.
