Recom Switching Power Supply 15V DC, 40 W, Chassis Mount RACM40-15SK/OF

Free Delivery in India | Lowest Global Shipping Charges

Recom Switching Power Supply 15V DC, 40 W, Chassis Mount RACM40-15SK/OF

Name: Recom Switching Power Supply 15V DC, 40 W, Chassis Mount RACM40-15SK/OF
Brand: Recom
SKU: 337740
Price: 20.22 USD
Availability: InStock



Category Switching Power Supplies Brand Recom Condition New

Specifications

Country of Origin	China
Brand	Recom
Power	40W
Efficiency	90%
Length	65mm
Model	RACM40-15SK/OF
Gross Weight	74g
Width	40.6mm
Mount Type	Chassis
Series	RACM40-K/OF
Output Current	2.667A
Maximum Operating Temperature	85°C
Minimum Operating Temperature	-40°C
Number of outputs	1
Maximum Input Voltage	264V ac
Maximum Output Voltage	15V dc
SMPS Output Current	2.67A
Minimum Input Voltage	80V ac
CSA/CAN-C222 No 60601-1	14 certified

Key Features

Delivers highly efficient 90% energy conversion for reliable performance.
Supports wide input voltage range from 80V AC to 264V AC.
Output current capacity of 2.67 amperes for stable power delivery.
Compact dimensions of 65mm length and 40.6mm width suitable for space-constrained applications.
Operates within temperature range of -40°C to 85°C with excellent thermal management.
Complies with multiple safety and EMC standards including IEC and EN certifications.
Designed for industrial, household, and medical grade applications requiring robust power supply.
Equipped with built-in class B EMC filter supporting Class I and II installations.

Product Description

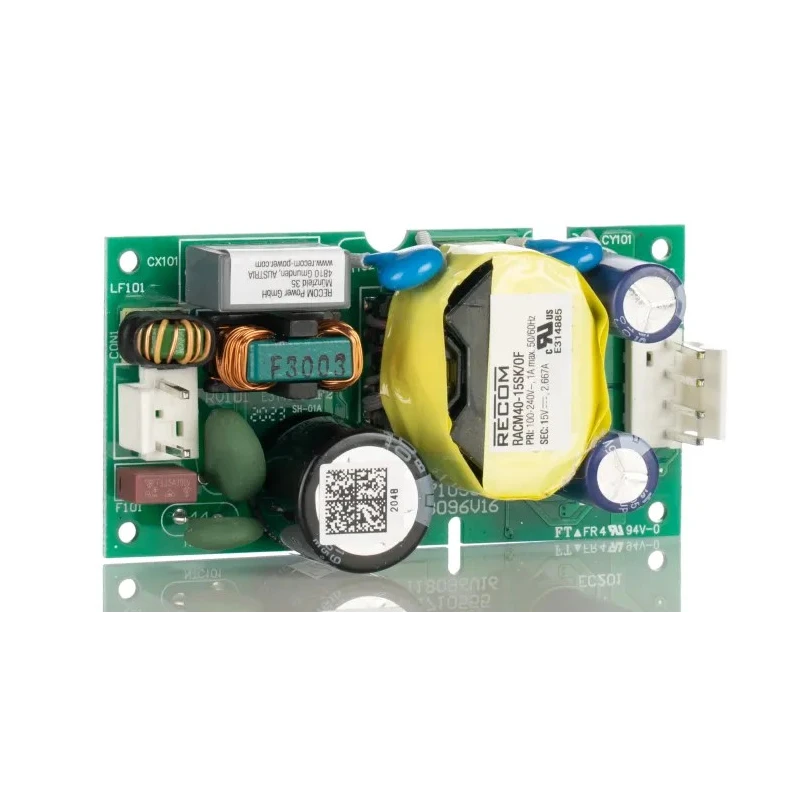

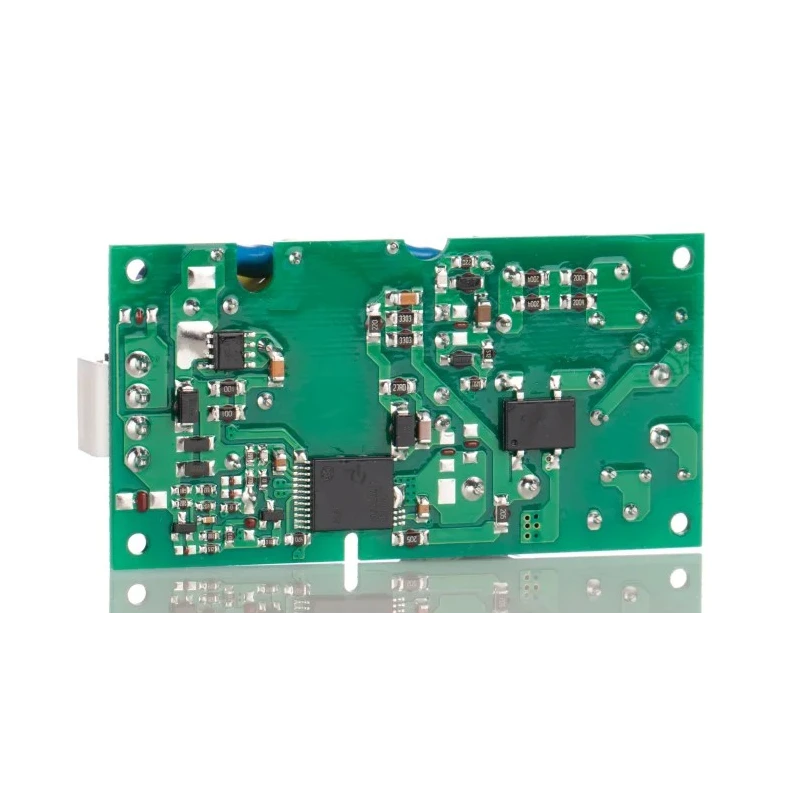

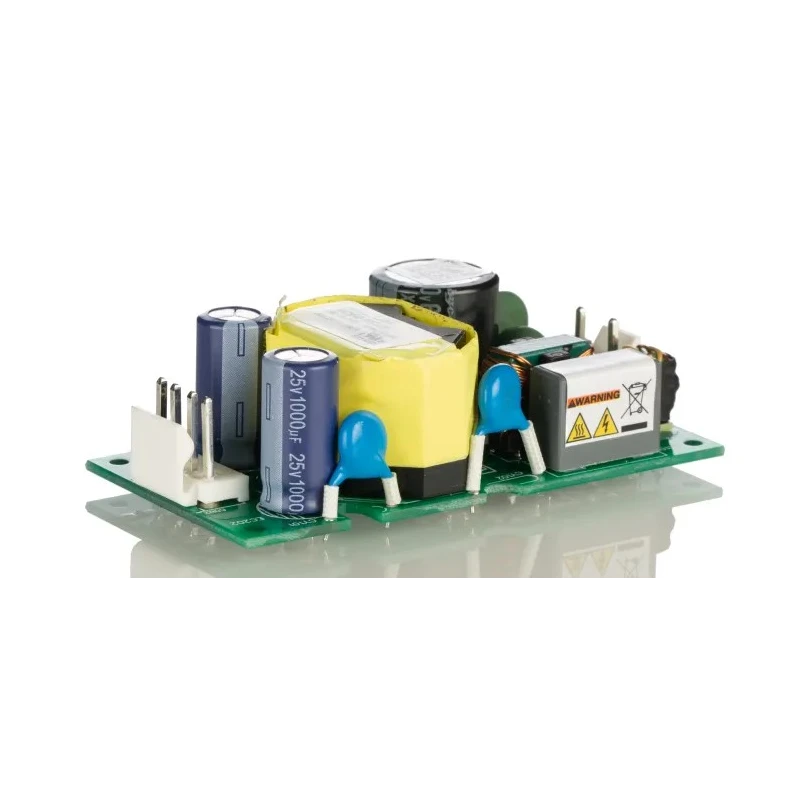

Recom RACM40-15SK/OF switching power supply is an ultra-compact, versatile industrial-grade AC/DC converter delivering a fixed 15V DC output with a power rating of 40 watts. This chassis mount unit supports a wide input voltage range of 80V AC to 264V AC, ensuring compatibility with diverse power sources. It offers an output current of 2.667A and achieves an efficiency of 90%, making it ideal for energy-conscious applications.

The power supply operates effectively within a temperature range from -40°C up to 85°C, allowing deployment in harsh environments with natural convection or forced cooling. Its compact dimensions of 65mm length by 40.6mm width and a lightweight of 74 grams enable easy integration into space-constrained industrial, household, or medical equipment.

Designed with robust safety and electromagnetic compatibility in mind, the RACM40-15SK/OF features a built-in class B EMC filter. It supports Class I and Class II PELV output installations and complies with comprehensive international standards including EN 62233, EN 62368-1, IEC 60335-1, IEC 60601-1, IEC 61010-1, IEC 61558 series, and RoHS directives.

This power supply is ANSI/AAMI ES60601-1 and CSA/CAN-C222 No 60601-1:14 certified, ensuring suitability for medical and IT equipment requiring B and BF classification. Furthermore, it supports operation at altitudes up to 5000 meters for wider application environments.

Delivers stable 15V DC, 40W power output with 2.67A current capacity. Wide input voltage range from 80V AC to 264V AC enables global operation. Compact chassis mount form factor with efficient thermal performance. Lightweight design weighing just 74 grams for easy equipment integration.

Certified to major international safety and EMC standards for industrial and medical use. Equipped with class B EMC filter, supporting safety-critical applications. Operates reliably between -40°C and +85°C with natural or forced cooling.

Multiple approvals including ANSI, CSA, and RoHS ensure compliance and reliability.

Ideal for industrial machines, laboratory equipment, medical devices, and household electrical systems requiring dependable Switching Power Supplies. Explore more high-quality power solutions in the Recom switching power supply category at EnvMart.
