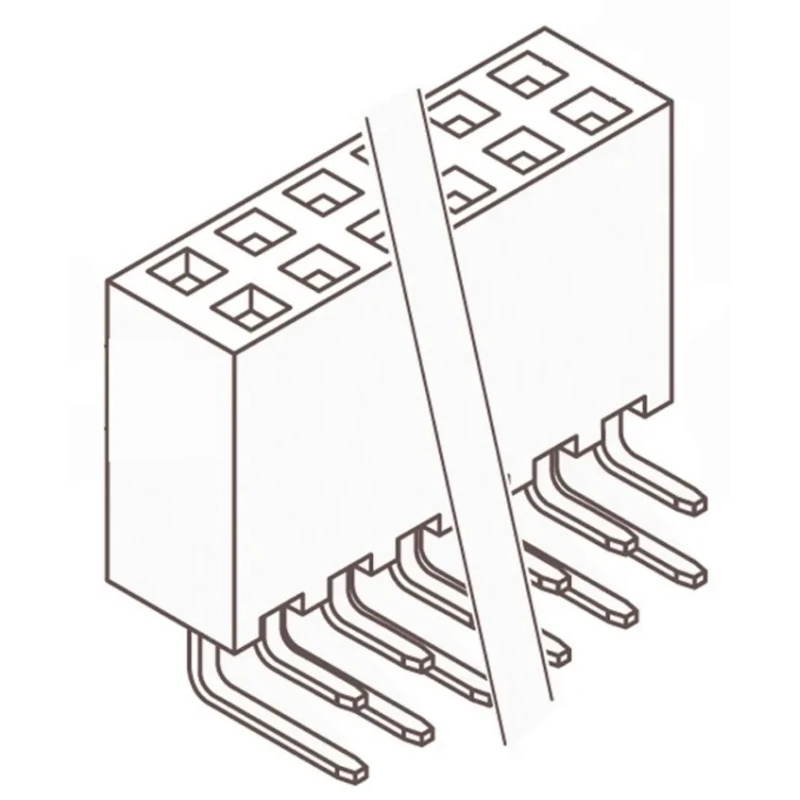

Samtec SSW Series Right Angle Through Hole PCB Socket, 40-Contact, 2 Row, 2.54 mm Pitch Solder SSW-120-02-G-D-RA

Samtec SSW-120-02-G-D-RA is a right angle through hole PCB socket designed for robust board-to-board electrical connections featuring 40 contacts arranged in 2 rows with a 2.54 mm pitch. This connector utilizes a solder termination type, providing secure and durable mechanical and electrical bonds suitable for industrial applications.

The socket housing is made of high-grade Liquid Crystal Polymer, offering excellent mechanical strength and thermal stability. The contacts are fabricated from phosphor bronze with a gold plating thickness of 0.51 μm, ensuring low contact resistance and enhanced corrosion protection. It is designed to manage a current capacity of 6.9 A and withstand voltages up to 550 V effectively.

This connector is optimized for use in environments ranging from -55°C to 125°C, making it suitable for demanding industrial, commercial, and electronic manufacturing processes. Its right angle orientation supports compact PCB designs by efficiently managing space constraints.

The SSW series sockets mate with compatible through-hole or SMT headers and offer consistent performance and ease of integration for board-to-board connectivity solutions. This connector features a solder termination type ensuring robust electrical and mechanical connections.

It accommodates a current rating of 6.9 A and supports voltage up to 550 V. Constructed with a black Liquid Crystal Polymer housing for high-performance durability. Phosphor bronze contacts plated with 0.51 μm gold for reliable conductivity and corrosion resistance.

Operates reliably within a temperature range of -55°C to 125°C, suitable for demanding environments. Designed with a right-angle orientation for space-saving PCB layouts. Features female contact gender and a row pitch of 2.5 mm for precise mating.

Ideal for industrial, electronic, and manufacturing sectors requiring secure PCB connections.

This product is suitable for applications in electronics manufacturing, industrial control systems, telecommunications, and other sectors requiring reliable and durable PCB connections. Samtec’s SSW series offers quality and performance aligned with industrial and electronic component standards.
