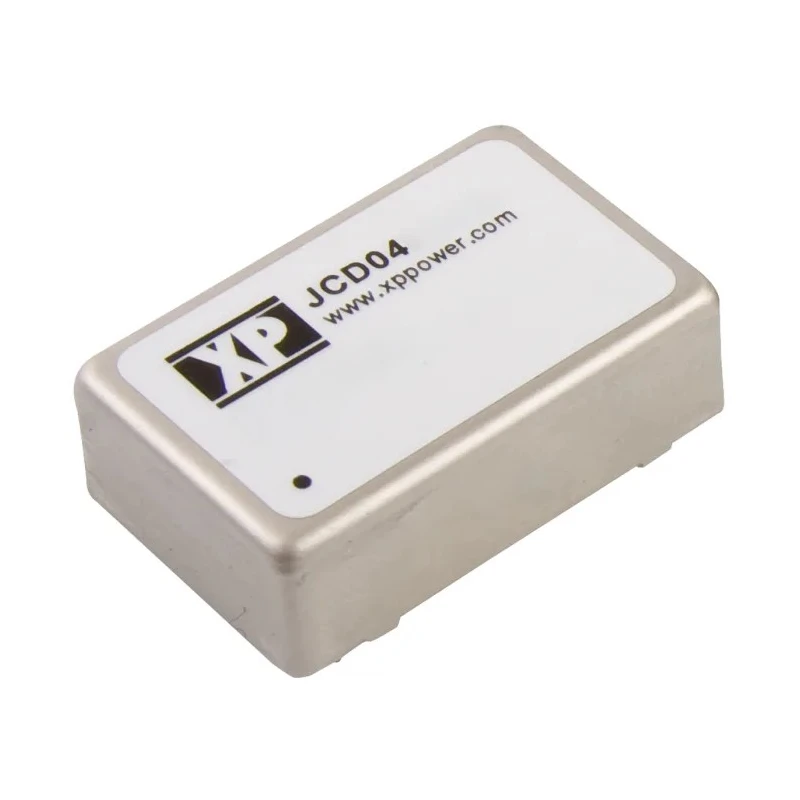

XP Power JCD Series 5W Dual Output Isolated DC/DC Converter, 15V DC, 133mA, 36V Max Input, Through Hole Mount JCD0424D15
Specifications
| Country of Origin | Taiwan |
|---|---|
| Voltage | Converters / DC-DC Converters XP Power JCD DC/DC Converter, 15V dc/ 133 mA, 36V |
| Brand | XP Power |
| Efficiency | 82% |
| Length | 31.75mm |
| Model | JCD0424D15 |
| Depth | 10.4mm |
| Width | 20.32mm |
| Mount Type | Through Hole |
| Series | JCD |
| Maximum Operating Temperature | 100°C |
| Package Type | DIP |
| Minimum Operating Temperature | -40°C |
| MTBF | 1100000h |
| Number of outputs | 2 |
| Maximum Output Power | 5W |
| Maximum Input Voltage | 36V dc |
| Standards/Approvals | RoHS |
| Minimum Input Voltage | 18V |
| Number of Pins | 8 |
| Output Voltage 1 | 15V dc |
| Output Current 1 | 133mA |
| Output Voltage Adjustment Range | ±14.85 V dc, ±15.15 V dc |
| Isolation Voltage | 1.6kV dc |
| Input Ratio | 2:1 |
| Input Ratio2 | 1 |
| Output Voltage 2 | -15V dc |
Key Features
- Offers dual outputs with ±15V voltage adjustment range.
- Input voltage range supports 18V to 36V DC for flexible power supply.
- High isolation voltage of 1.6 kV DC ensures electrical safety.
- Compact DIP package with through hole mount type for easy PCB integration.
- Operating temperature range from -40°C up to 100°C for reliable operation.
- Efficiency up to 82%, minimizing energy loss during operation.
- Designed for continuous short circuit protection enhancing durability.
- MTBF rating of 1,100,000 hours guarantees long-term reliability.
Product Description
XP Power JCD0424D15 is a high-quality dual output isolated DC/DC converter designed for electronic components requiring efficient voltage conversion with isolation.
This model provides 5 watts of output power with output voltages of ±15V DC at 133mA currents per output channel, suitable for sensitive industrial, laboratory, and embedded system applications.
The converter supports a wide input voltage range from 18V minimum up to 36V maximum DC voltage, accommodating variable power sources. It employs a standard DIP package with through-hole pins, simplifying mounting on printed circuit boards.
Rated for an operating temperature range of -40°C to +100°C, the device performs reliably across harsh environmental conditions typical in industrial, manufacturing, and power supply systems.
Dual isolated outputs with ±15V adjustable voltage range. High isolation voltage rating of 1.6 kV DC for safety compliance. Continuous short circuit protection to prevent damage. Compact dimensions: 31.75mm length, 20.32mm width, and 10.4mm depth.
Operates with 2:1 input voltage ratio enhancing versatility. 82% efficiency reducing thermal losses and improving power utilization. Long MTBF rated at 1,100,000 hours ensuring dependable operation.
This DC/DC converter is ideal for powering control systems, measurement instruments, communication devices, and other industrial electronic equipment where isolated, stable power supply is critical.
Country of origin is Taiwan, Province of China. Explore more DC/DC Converters and related power supplies on EnvMart for your electronic design and manufacturing needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model provides a maximum output power of 5 watts.
The input voltage range for the JCD0424D15 is from 18V to 36V DC.
It offers dual outputs of +15V DC and -15V DC, with an adjustable voltage range of ±14.85 V DC to ±15.15 V DC.
The isolation voltage rating is 1.6 kV DC, ensuring electrical safety during operation.
The efficiency of the JCD0424D15 is up to 82%, which helps minimize energy loss during operation.
It operates reliably within a temperature range of -40°C to +100°C.
This model features a through-hole mounting type, designed for easy integration onto printed circuit boards.
This DC/DC converter has two outputs, providing both +15V and -15V DC.
The dimensions are 31.75mm in length, 20.32mm in width, and 10.4mm in depth.
The mean time between failures (MTBF) rating is 1,100,000 hours, indicating long-term reliability.
This model complies with RoHS standards, ensuring it meets environmental regulations.
It is suitable for powering control systems, measurement instruments, communication devices, and other industrial electronic equipment.
