Samtec Right Angle Through Hole 16-Contact 2 Row 2.54 mm Pitch PCB Socket SSW-108-02-G-D-RA

Free Delivery in India | Lowest Global Shipping Charges

Samtec Right Angle Through Hole 16-Contact 2 Row 2.54 mm Pitch PCB Socket SSW-108-02-G-D-RA

Name: Samtec Right Angle Through Hole 16-Contact 2 Row 2.54 mm Pitch PCB Socket SSW-108-02-G-D-RA
Brand: Samtec
SKU: 366051
Price: 3.49 USD
Availability: InStock



Category PCB Socket Brand Samtec Condition New

Specifications

Country of Origin	India
Voltage	550V
Brand	Samtec
Orientation	Right Angle
Current	6.9A
Model	SSW-108-02-G-D-RA
Mount Type	Through Hole
Housing Material	Liquid Crystal Polymer
Contact Material	Bronze
Series	SSW
Termination Type	Solder
Maximum Operating Temperature	125°C
Sub Type	Board-to-Board
Minimum Operating Temperature	-55°C
Number of Rows	2
Pitch	2.54mm
Contact Plating	Gold
Number of Contacts	16
Contact Gender	Female
Connector System	Board-to-Board
Row Pitch	2.5mm

Key Features

The socket features solder termination suitable for secure PCB mounting.
It utilizes a black liquid crystal polymer housing for high durability.
Contacts are made of bronze with 0.51μm gold plating for corrosion resistance.
Rated to carry currents up to 6.9 A and voltages of 550 V.
Designed for operating temperatures from -55°C to 125°C.
The socket features a board-to-board connector system with female contact gender.
Row pitch is 2.5 mm ensuring reliable spacing between contact rows.
Mount type is through hole with right angle orientation for compact PCB layouts.

Product Description

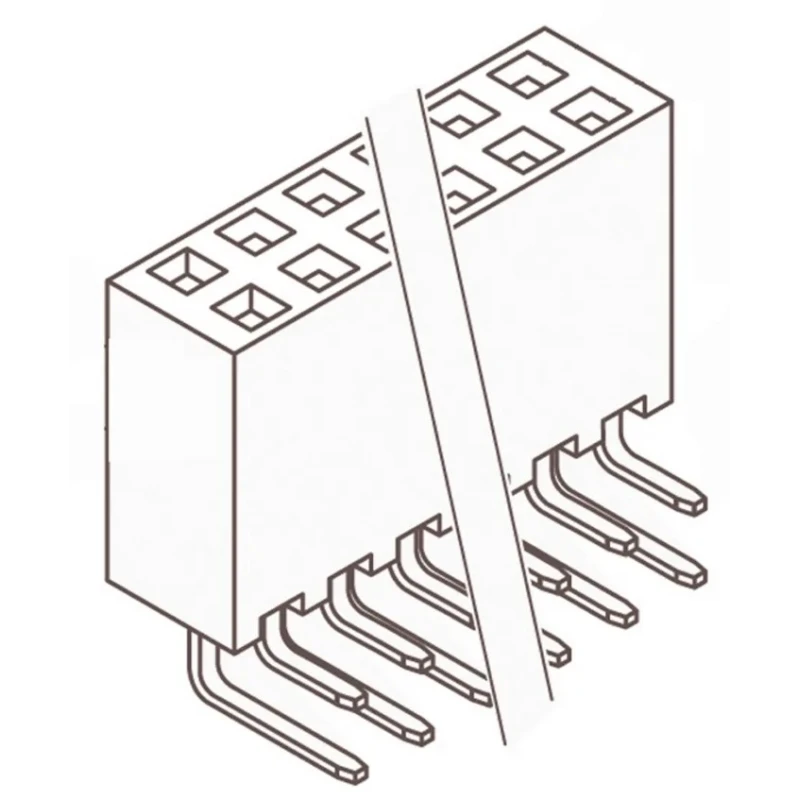

Samtec SSW-108-02-G-D-RA is a high-quality right angle through hole PCB socket designed for board-to-board connections requiring a 16-contact interface arranged in 2 rows and a 2.54 mm pitch. This connector features solder tail termination, allowing robust attachment to printed circuit boards in industrial and electronic applications.

The socket housing is made from liquid crystal polymer, providing excellent mechanical strength and thermal stability. Contacts are constructed from bronze material, plated with 0.51μm of gold on the contact surfaces and gold flash on the solder tails, ensuring consistent electrical performance and extended durability under demanding conditions.

This PCB socket supports current handling up to 6.9 amperes and voltage ratings up to 550 volts, making it suitable for a variety of power and signal applications in electronics manufacturing, industrial equipment, and instrumentation. The operating temperature range extends from -55°C to 125°C to meet harsh environmental requirements.

The connector system is female with a right angle orientation, optimized for space-constrained PCB layouts. The row pitch of 2.5 mm between contacts further enhances the mechanical reliability of the connections.

This SSW series socket is compatible with corresponding Samtec headers including the TSW series through hole 2.54 mm square post headers and TSM series SMT 2.54 mm square post headers, providing versatile board-to-board connectivity solutions.

The socket features solder termination suitable for secure PCB mounting. Durable liquid crystal polymer housing ensures mechanical and thermal stability. Gold plated bronze contacts provide corrosion resistance and reliable conductivity.

Rated for 6.9 A current and 550 V voltage for diverse industrial applications. Operates reliably between -55°C and 125°C across various environments. Right angle orientation optimizes space usage on PCB assemblies. Compatible with Samtec TSW and TSM series headers for flexible solutions.

This product is ideal for electronics manufacturing, industrial automation, instrumentation, and other technical applications requiring robust board-to-board connectors. Explore the extensive Samtec SSW series at EnvMart for quality PCB Socket solutions.
