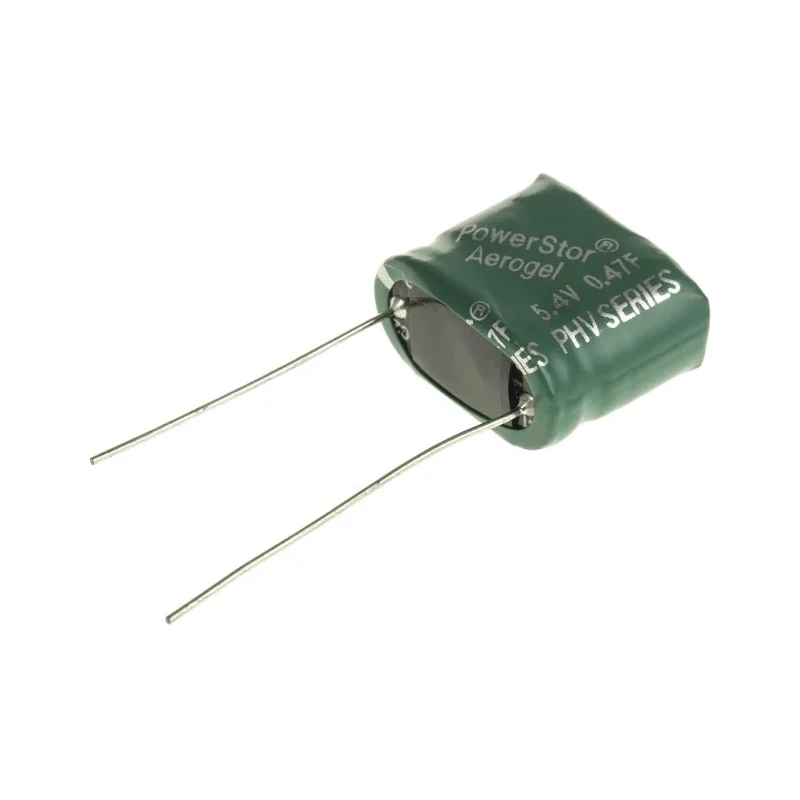

Eaton 0.47 F 5.4V dc Electric Double Layer Supercapacitor PHV Series Through Hole Cylindrical -10 to 30 % PHV-5R4V474-R

Eaton PHV-5R4V474-R is an advanced electric double layer supercapacitor with 0.47 Farad capacitance and a rated voltage of 5.4V dc, featuring a through hole cylindrical design. It is engineered for high power density and energy storage in demanding industrial, electronic, and power management applications.

Featuring ultra-low Equivalent Series Resistance (ESR) and a leakage current of only 13 microamps, this capacitor delivers efficient energy transfer and retention capabilities. The tolerance ranges from -10 to 30 percent, allowing designers to accommodate variations in capacitance to suit application needs.

The device operates reliably within a wide temperature range of -40°C to 65°C and has a specified lifetime of 1000 hours, making it well-suited for electronics subjected to thermal stresses in industrial or commercial environments. Its positive polarity and through hole mounting option enable straightforward integration into PCB layouts requiring durability.

Its compact cylindrical package measures 10.5 mm diameter with 14.5 mm height and depth, and it is supplied in bag packaging with solder terminals and 0.5 mm lead diameter pins spaced at 11.8 mm pitch. Eaton's PHV series (PowerStor) supercapacitors use electrochemical double layer capacitor (EDLC) technology and premium materials for superior performance.

Certified with RoHS and UL standards, this supercapacitor is compliant with environmental and safety criteria important for modern electronic components. The capacitance value is 0.47 Farads, suitable for high energy density applications.

This supercapacitor has a tolerance range of -10 to 30 percent, providing flexibility in circuit design. It features a low Equivalent Series Resistance (ESR) of 400 milliohms for efficient power delivery. Leakage current is minimal at 13 microamps, ensuring long-term energy retention.

The unit supports an operating temperature range from -40°C to 65°C for varied environmental conditions. Comes with a 1000-hour lifetime rating indicating durability in industrial applications. Physical dimensions include a diameter of 10.5 mm, height and depth both 14.5 mm, and lead diameter of 0.5 mm.

Designed as a through hole mount device with solder terminals for easy PCB integration. Polarized with positive polarity, intended for specialized circuit configurations. Meets RoHS and UL standards, confirming compliance with safety and environmental norms.

This Eaton supercapacitor series is ideal for use in industrial electronics, power management systems, energy storage applications, and electronic component manufacturing where high capacitance and reliability are critical.
