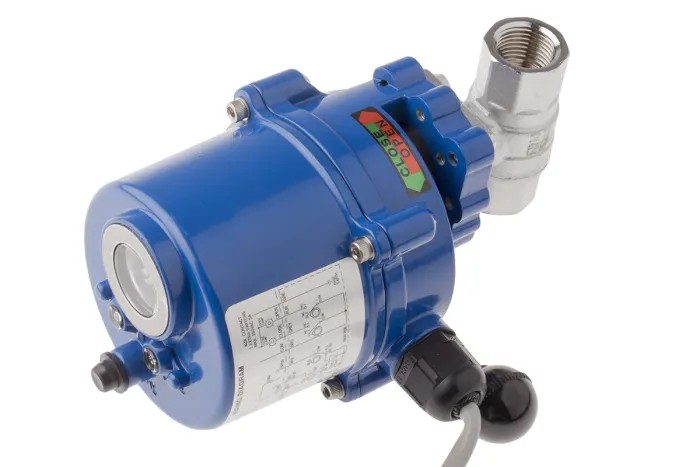

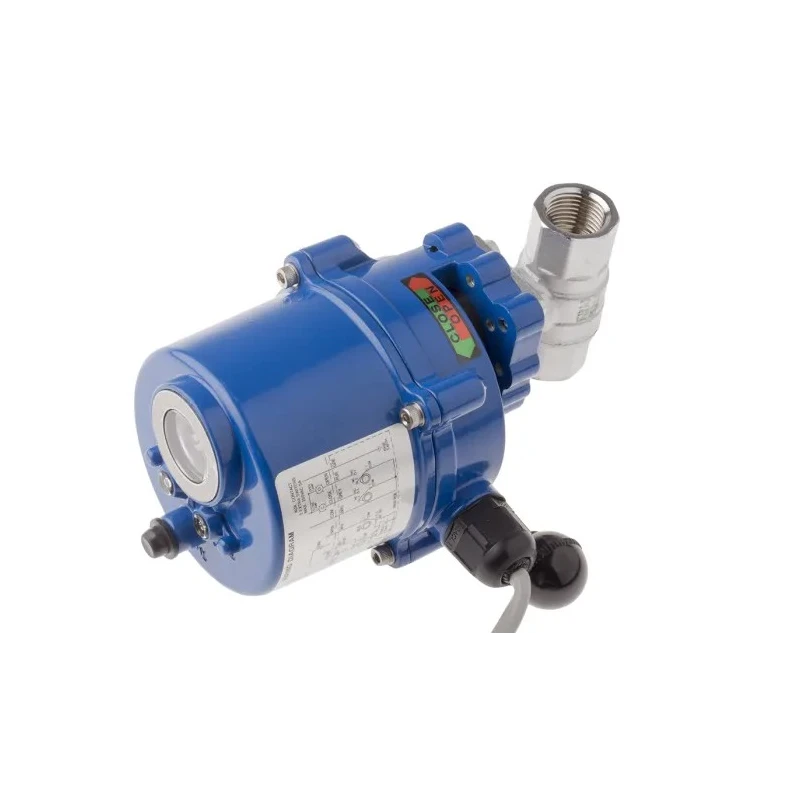

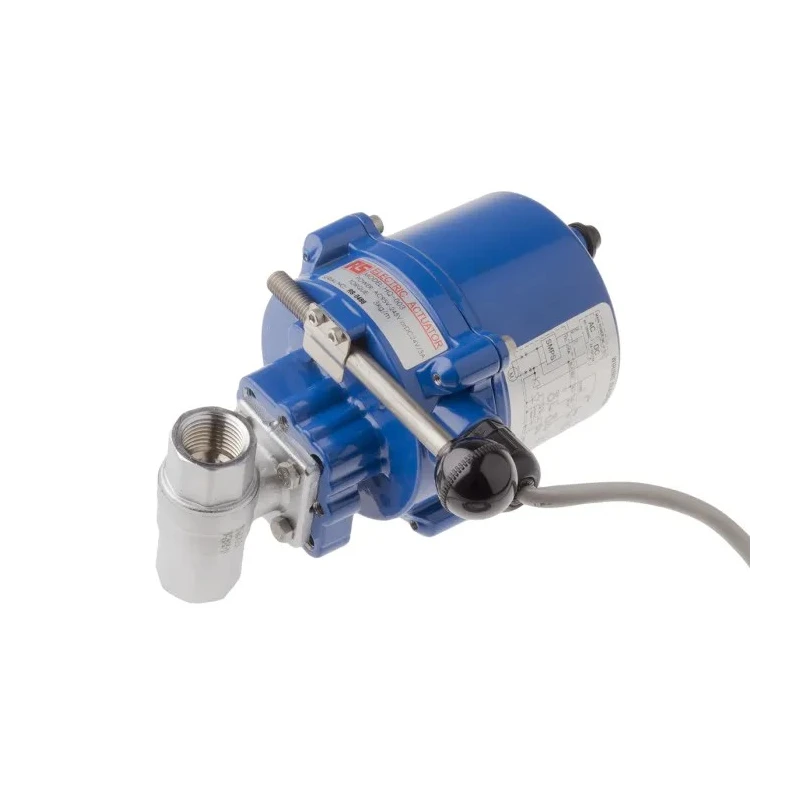

RS PRO Ball Type Pneumatic Actuated Valve 1/2 in BSP Female Threaded Connections 40 bar 24Vdc Weatherproof IP67 760-5680

RS PRO 760-5680 is a ball type pneumatic actuated valve featuring a robust hot pressed brass valve body and end cap, providing enhanced mechanical strength and corrosion resistance. It incorporates a brass chrome-plated ball to ensure reliable sealing and long service life.

This valve has threaded BSP female connections of 1/2 inch inlet and outlet port sizes facilitating secure piping integration. The valve operates with a direct action return type in its default normally closed (NC) position, suitable for automated fluid control systems.

It is equipped with a weatherproof electric actuator rated IP67, compatible with multiple voltages including 24Vdc and 95-240Vac, and features LED indicators for open/close status and a manual override push button lever for emergency operations. The actuator includes both primary and auxiliary limit switches rated for 250Vac at 6A, enabling precise position monitoring.

The valve functions efficiently across an ambient temperature range from -20°C to 60°C, making it suitable for various industrial environments including HVAC, fluid power systems, water treatment, and manufacturing automation.

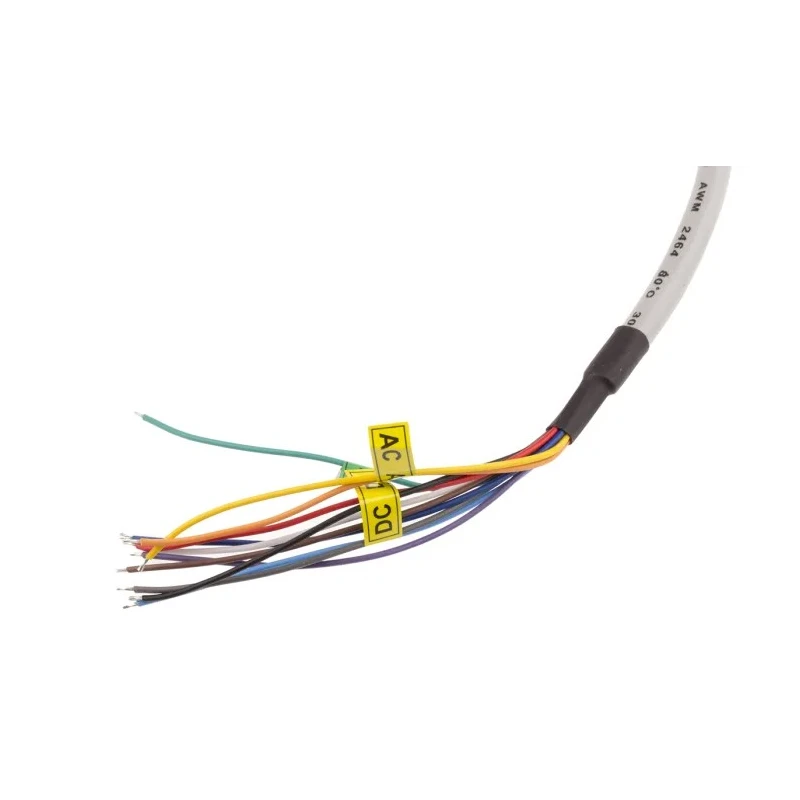

Conduit entry is designed as 1 X PG11 with a 3-meter flying lead featuring 11 wires for electrical connections. Mounting is according to ISO5211 standards with F03/04/05 flange sizes and an 11mm double square drive ensuring actuator compatibility and easy installation.

RS PRO 760-5680 pneumatic actuated valve is manufactured in the United Kingdom and offers reliable performance for demanding pneumatic and fluid control applications. Constructed with hot pressed brass body, end cap, and brass chrome-plated ball for durability.

Equipped with PTFE seat ring and body seal ensuring tight leak-free operation. Operates within temperature range from -20°C to 60°C for versatile industrial applications. Weatherproof electric actuator with IP67 rating with LED indicator and manual override push button.

Includes limit switches (2 x open/close SPDT) and auxiliary limit switches rated 250Vac 6A for position control. Conduit entry with 3m flying lead and 11 wires for safe electrical connection. ISO5211 mounting with F03/04/05 flange and 11mm double square drive for actuator compatibility.

This Pneumatic Actuated Valve is ideal for industrial fluid power tasks including HVAC systems, manufacturing process control, water treatment plants, and other pneumatic automation environments. It combines robust material construction with advanced actuator features for precision and reliability.
