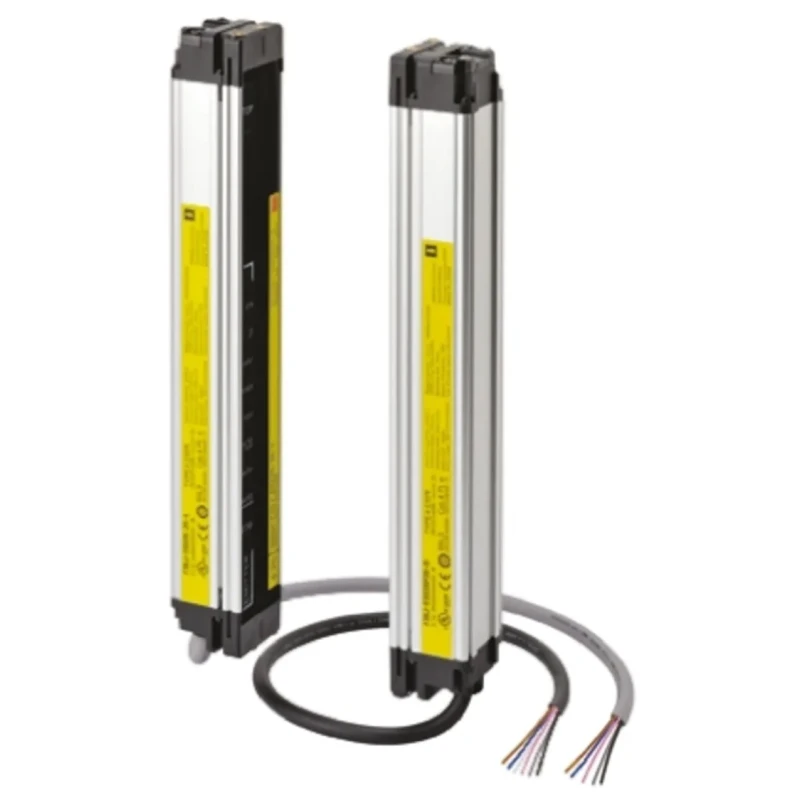

Omron F3SJ Series Light Curtain Receiver, Sender 22 Beam Type 4 Safety 24V DC 465mm Protective Height
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | Omron |
| Height | 534mm |
| Length | 30mm |
| Model | F3SJ |
| Number of Beams | 22 |
| Width | 30mm |
| Series | F3SJ |
| Terminal type | M12 Connector |
| Component Type | Receiver, Sender |
| Standards/Approvals | e |
| Maximum Supply Voltage | 24V dc |
| Safety Type | Type 4 |
| Protective Height | 465mm |
| Maximum Protective Width | 7m |
| Minimum Scanning Distance | 0.2m |
| Maximum Scanning Distance | 7m |
| Maximum Response Time | 15, 70ms |
| Beam Resolution | 20mm |
Key Features
- Protects apertures up to 7 meters wide for industrial safety.
- 465 mm protective height with compact installation profile.
- Operates on 24 V DC supply with M12 Connector terminals.
- Type 4 safety rating for high-risk machine protection.
- Fast response times of 15 ms on-to-off and 70 ms off-to-on.
- Minimum scanning distance of 0.2 meters for precise detection.
- Complies with IEC 61496, EN ISO 13849-1 PLe Cat.4, and SIL3 standards.
- Suitable for press, stamping, robotic cell, and conveyor safeguarding.
Product Description
Omron F3SJ-E0465P25 Light Curtain Receiver and Sender deliver reliable, non-contact safeguarding for industrial automation environments. With a 22-beam arrangement and 20 mm beam resolution, this Type 4 safety sensor system offers precise object detection and enhanced protection against hazardous machine access.
Designed for compact installations, the receiver unit features a protective height of 465 mm and a narrow housing width of 30 mm, facilitating easy panel alignment and integration in assembly lines and production settings.
Operating on a 24 V DC supply via M12 Connector terminals, the device supports rapid hazard interruption with a swift 15 ms on-to-off response and resumes detection within 70 ms after clearing an interruption. The system operates effectively across a scanning distance ranging from 0.2 m to 7 m, covering guarded apertures up to 7 meters wide.
Conforming to IEC, EN ISO, UL, TUV, cULus, and CE standards, including IEC 61496-1 and SIL3 safety integrity levels, the F3SJ series light curtain meets the stringent demands of high-risk protection applications. Applications include safeguarding press and stamping machines, robotic cell perimeter protection, conveyor transfer points, packaging machinery openings, and automated assembly line safety control.
22-beam arrangement for higher detection redundancy and protection of small objects. 20 mm beam spacing to reduce nuisance trips and improve detection accuracy. Type 4 safety rating compliant with international electro-sensitive protective equipment standards.
Compact form factor enables easy mounting in various industrial environments. Robust connection via M12 Connector allows seamless wiring integration.
This Omron light curtain receiver and sender system ensures enhanced safety in industrial, manufacturing, material handling, and automation control applications. Its precise detection capabilities and global safety approvals make it an essential component for safeguarding personnel and equipment. Discover more advanced safety sensors and control devices in our comprehensive product catalog at EnvMart.
Explore more products in our Safety Light Curtains category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The protective height of this light curtain is 465 mm.
This model features a 22-beam arrangement for enhanced detection redundancy.
The maximum scanning distance is 7 meters, allowing it to cover wide apertures.
The minimum scanning distance is 0.2 meters, enabling precise object detection.
It operates on a 24 V DC power supply.
The maximum response time is 15 ms for on-to-off and 70 ms for off-to-on detection.
The dimensions are 534 mm in height, 30 mm in width, and 30 mm in length.
It uses M12 Connector terminals for connection.
It complies with IEC 61496, EN ISO 13849-1 PLe Cat.4, and SIL3 standards.
It is suitable for safeguarding press and stamping machines, robotic cells, conveyor transfer points, and packaging machinery openings.
The beam resolution is 20 mm, which helps reduce nuisance trips and improve detection accuracy.
The maximum protective width is 7 meters, accommodating larger areas for safety.
