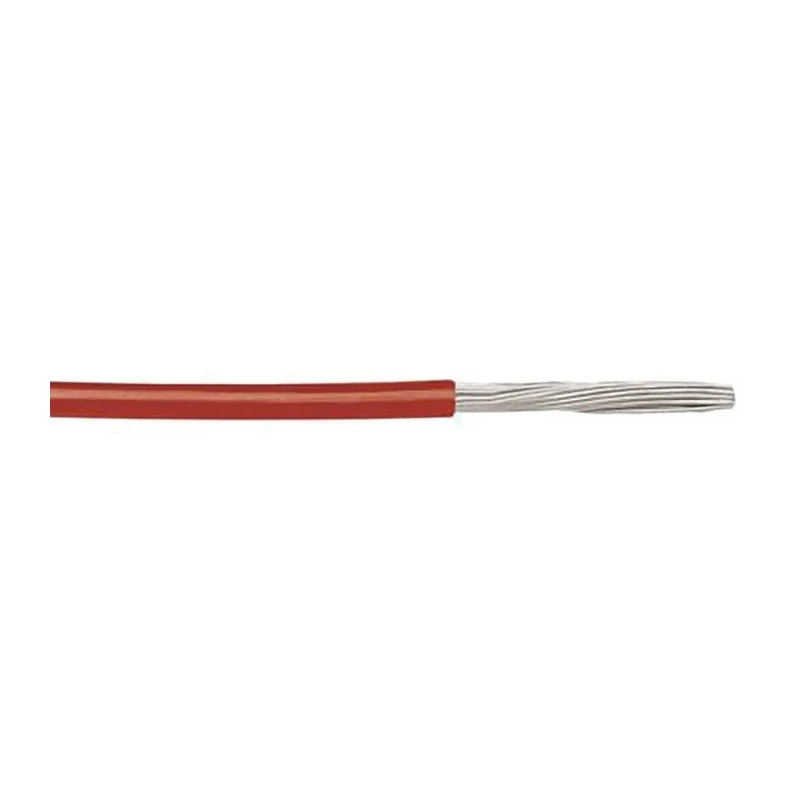

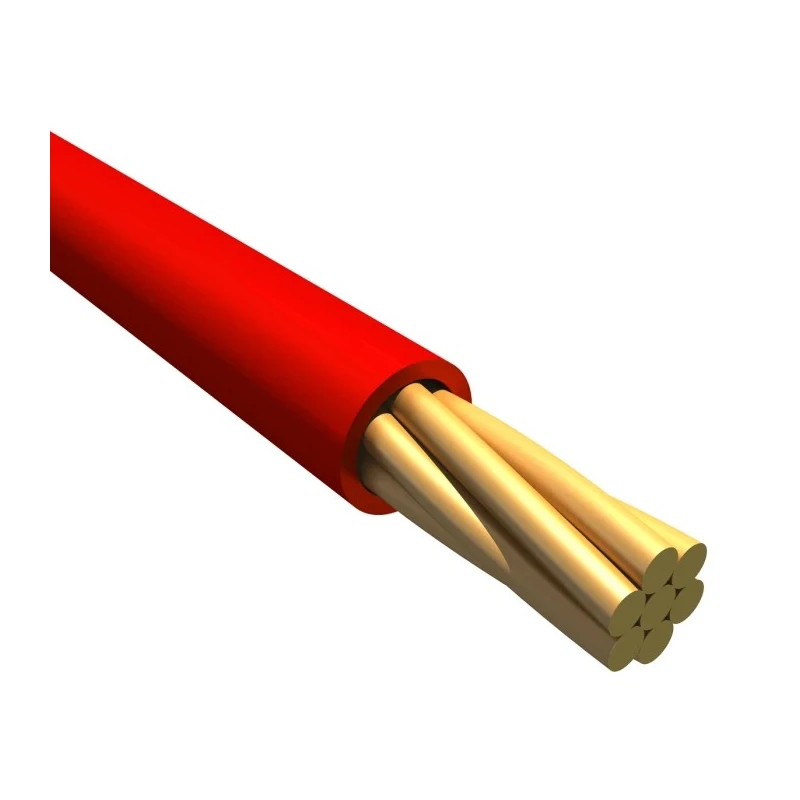

RS PRO Ecogen Ecowire Plus Series Red 0.33 mm² 22 AWG Hook Up Wire, 7/0.25 mm Core Strands, 30 m Length, MPPE 6823 RD005
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 300V |
| Brand | RS PRO |
| Temperature range | - 40°C to +110°C |
| CROSS SECTIONAL AREA | 0.33mm² |
| Model | 6823 RD005 |
| Cable Length | 30m |
| Series | Ecogen Ecowire Plus |
| Outside diameter | 1.17mm |
| Maximum Operating Temperature | 110°C |
| Conductor Material | Copper |
| Sub Type | EcoWire Plus |
| Insulation Thickness | 0.008 Inch (0.20 mm) |
| Wire Diameter | 0.046 Inch (1.17 mm) |
| Minimum Operating Temperature | -40°C |
| Conductor Size | 22 AWG (0.35 mm²) |
| Jacket Material | MPPE |
| Standards/Approvals | CE, ISO 6722, Reach compliant, RoHS compliant |
| Jacket Colour | Red |
| Fire Behaviour | Flame Retardant, Low Smoke Halogen Free |
| American Wire Gauge | 22AWG |
| Number of Strands | 7 |
| Core Strands | 7 x 0.25mm |
| Size of Strands | 0.25mm |
| Stranding | 7/30 (7 x 0.25) |
Key Features
- Constructed with stranded bare copper conductors for optimum conductivity.
- Features flame retardant, low smoke halogen free MPPE jacket for safety and durability.
- Operates reliably in temperatures ranging from -40°C to +110°C.
- Provides excellent resistance to hazardous fluids including oils, solvents, and fuels.
- Rated for 300 volts maximum operating voltage.
- EcoWire Plus insulation enhances fluid resistance and reduces wall thickness.
- Meets CE, ISO 6722, RoHS, and REACH standards for quality and compliance.
- Ideal for solar, transportation, wind power, medical, and industrial factory uses.
Product Description
Alpha Wire 6823 RD005 Ecogen Ecowire Plus Series is a premium 0.33 mm² (22 AWG) hook-up wire featuring 7 strands of 0.25 mm diameter copper conductors with MPPE insulation. This flame retardant, low smoke halogen free wire operates safely within a wide temperature range from -40°C up to +110°C and is rated for a maximum voltage of 300 V.
The EcoWire Plus insulation is made from modified polyphenylene ether (MPPE), making it lighter, tougher, and more dielectric than traditional PVC insulation. It offers exceptional resistance to hazardous fluids such as oils, solvents, and fuels, making it well suited for demanding industrial environments.
Stranding of 7/0.25 mm core strands provides flexibility while maintaining high performance conductivity. The wire diameter is approximately 1.17 mm, with an insulation thickness of 0.20 mm (0.008 inch), supporting precise installation in complex applications.
Certifications including CE, ISO 6722, RoHS, and REACH ensure compliance with international standards, while the product's recyclable mPPE insulating material supports environmental sustainability requirements like WEEE.
Constructed with stranded bare copper conductors for reliable conductivity. Flame retardant and low smoke halogen free MPPE jacket for enhanced safety. Wide operational temperature range from -40°C to +110°C. Rated for 300 V maximum operating voltage, suitable for various electrical systems.
Excellent resistance to oils, solvents, fuels, and other hazardous liquids. Meets CE, ISO 6722, RoHS, and REACH standards for quality assurance. EcoWire Plus insulation offers reduced wall thickness and lighter weight. Applications include solar power, transportation, wind power, industrial, and medical sectors.
Alpha Wire's Ecogen Ecowire Plus is an ideal choice for professionals requiring high-performance hook-up wire with superior environmental and electrical properties. Explore more products in the Wires & Cables category at EnvMart to find matching components and accessories to complete your project.
Explore more products in our Hook Up Wire category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating voltage of this model is 300 volts.
This unit operates reliably within a temperature range of -40°C to +110°C.
It features stranded bare copper conductors and is insulated with a flame retardant, low smoke halogen free MPPE jacket.
The wire length is 30 meters.
The outside diameter of the wire is approximately 1.17 mm, with an insulation thickness of 0.20 mm (0.008 inch).
The cross-sectional area of this hook-up wire is 0.33 mm² (22 AWG).
It meets CE, ISO 6722, RoHS, and REACH standards for quality and compliance.
The wire is insulated with EcoWire Plus, made from modified polyphenylene ether (MPPE), which enhances fluid resistance.
This model has 7 strands of 0.25 mm diameter copper conductors.
It is ideal for applications in solar power, transportation, wind power, medical, and industrial sectors.
The wire is rated as flame retardant and low smoke halogen free, enhancing safety in use.
The weight of the wire is not specified in the provided data.
