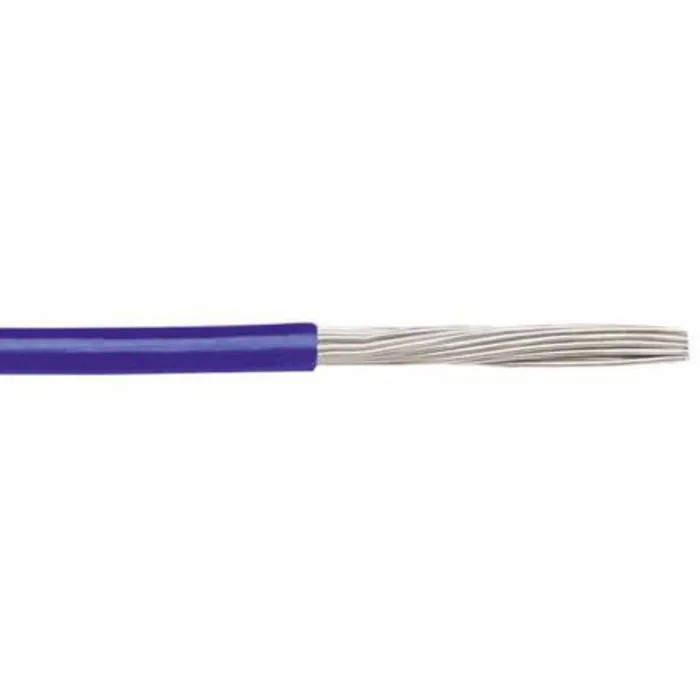

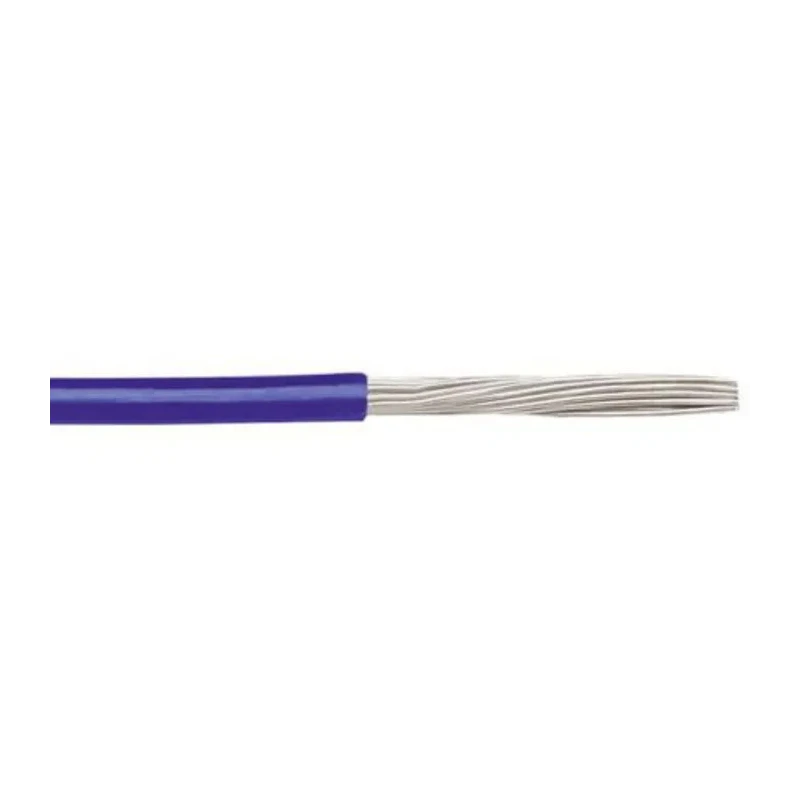

Alpha Wire Ecogen Ecowire Plus Series Blue 1.1 mm² Hook Up Wire, 17 AWG, 19/0.25 mm Core Strands, 30 m Length 6826 BL005
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 300V |
| Brand | Alpha Wire |
| Temperature range | - 40°C to +110°C |
| CROSS SECTIONAL AREA | 1.1mm² |
| Model | 6826 BL005 |
| Cable Length | 30m |
| Series | Ecogen Ecowire Plus |
| Outside diameter | 1.68mm |
| Maximum Operating Temperature | 110°C |
| Conductor Material | Copper |
| Insulation Thickness | 0.008 Inch (0.20 mm) |
| Wire Diameter | 0.066 Inch (1.68 mm) |
| Minimum Operating Temperature | -40°C |
| Conductor Size | 17 AWG (0.96 mm²) |
| Jacket Material | MPPE |
| Standards/Approvals | CE, ISO 6722, Reach compliant, RoHS compliant |
| Jacket Colour | Blue |
| Fire Behaviour | Flame Retardant, Halogen Free, Low Smoke |
| American Wire Gauge | 17AWG |
| Number of Strands | 19 |
| Core Strands | 19 x 0.25mm |
| Size of Strands | 0.25mm |
| Stranding | 19/30 (19 x 0.25) |
Key Features
- Stranded copper conductor with 19 strands of 0.25 mm diameter each to ensure flexibility.
- Supports 300 V voltage rating and withstands temperature range from -40°C to 110°C.
- MPPE jacket offers flame retardant, halogen free and low smoke characteristics for safety.
- Compliance with CE, ISO 6722, RoHS and REACH standards ensures reliable quality and environmental responsibility.
- Suitable for industrial, medical, solar, transportation and wind power applications.
- Lightweight insulation allows for reduced wall thickness without compromising durability.
- EcoWire Plus insulation provides enhanced fluid resistance for demanding factory environments.
- Wire diameter of 1.68 mm facilitates installation in compact electrical assemblies.
Product Description
Alpha Wire 6826 BL005 Ecogen Ecowire Plus Series Blue Hook Up Wire is a high-quality single core cable featuring a conductor size of 17 AWG with a cross-sectional area of 1.1 mm². Designed with 19 strands of 0.25 mm diameter copper wires, this 30-meter length cable offers excellent flexibility and reliable electrical conductivity for various industrial and commercial applications.

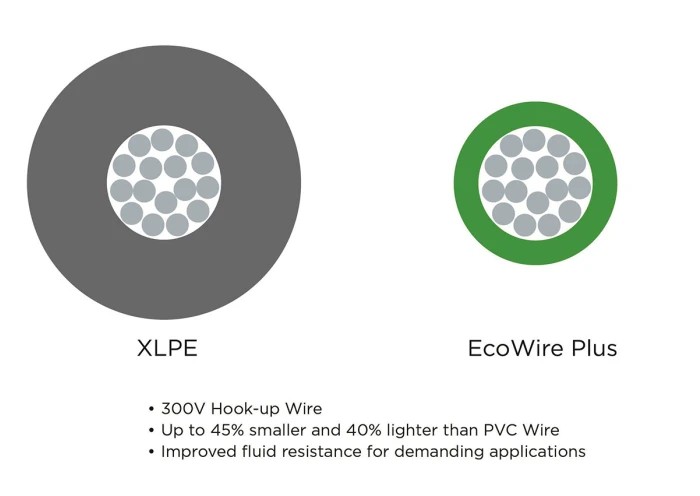

The wire is insulated with modified polyphenylene ether (MPPE) to provide superior dielectric strength, low specific gravity, and reduced insulation thickness. The insulation is flame retardant, halogen free, and produces low smoke in case of fire, ensuring safety compliance with global CE, ISO 6722, RoHS, and REACH standards.
With an operational voltage rating of 300 V and a temperature tolerance from -40°C to 110°C, this hook up wire is suited for demanding environments that require resistance to oils, solvents, fuels, and other hazardous fluids. Its lightweight and durable MPPE jacket makes it an eco-friendly, recyclable alternative to traditional PVC and XLPE insulated wires.
Stranded copper conductor with 19 strands, each 0.25 mm in diameter. 30 meters of cable length for versatile installations. Blue MPPE insulation providing excellent chemical resistance. Voltage rating of 300 volts and temperature range of -40°C to 110°C.
Compliant with CE, ISO 6722 thin wall, RoHS and REACH standards. Halogen free, flame retardant, and low smoke insulation for improved safety. EcoWire Plus insulation suitable for industrial automation, medical devices, renewable energy, and transportation sectors.
Wire diameter of 1.68 mm facilitates compact wiring layouts.
This product is ideal for manufacturers and engineers seeking a reliable, environmentally responsible hook up wire that meets rigorous performance and safety standards. Browse more Hook Up Wire options and related electrical cables in the EnvMart catalogue to find suitable solutions for your specific industrial or commercial electrical wiring needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The conductor size of this model is 17 AWG, which corresponds to a cross-sectional area of 1.1 mm².
This hook up wire supports a voltage rating of 300 V.
It can operate within a temperature range of -40°C to 110°C.
The wire is insulated with modified polyphenylene ether (MPPE), which is flame retardant, halogen free, and produces low smoke.
The outside diameter of the wire is 1.68 mm, and it has an insulation thickness of 0.008 inches (0.20 mm).
The conductor consists of 19 strands, each with a diameter of 0.25 mm.
It complies with CE, ISO 6722, RoHS, and REACH standards.
This model is suitable for industrial, medical, solar, transportation, and wind power applications.
The total length of this wire is 30 meters.
The core material is copper, which ensures reliable electrical conductivity.
The insulation is flame retardant, halogen free, and produces low smoke in case of fire.
The country of origin for this wire is India.
