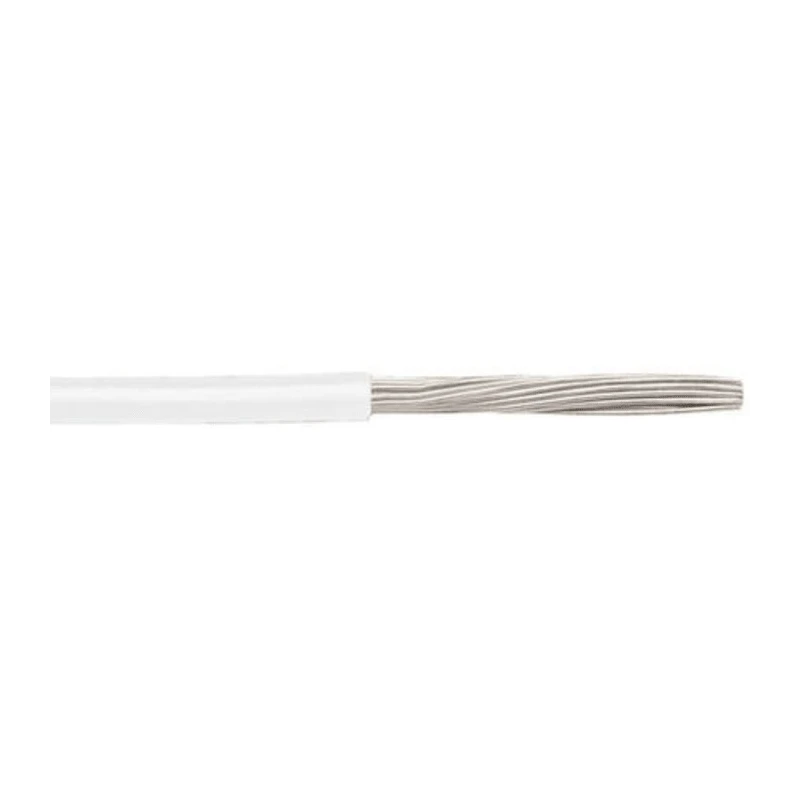

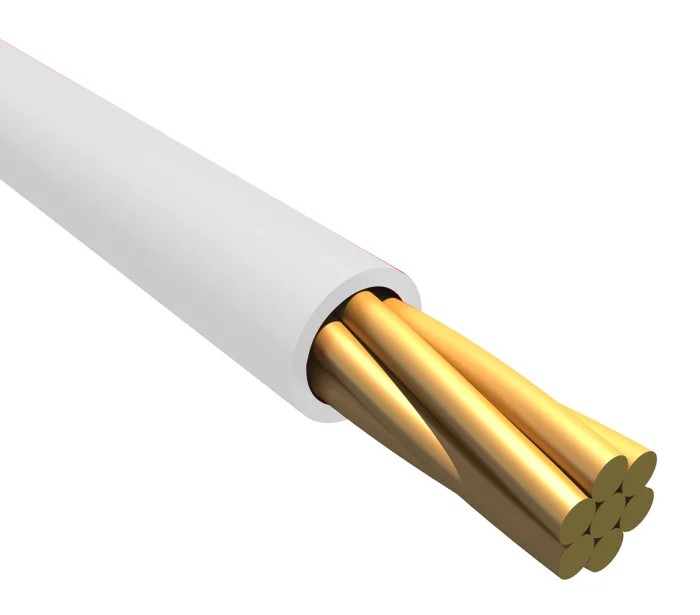

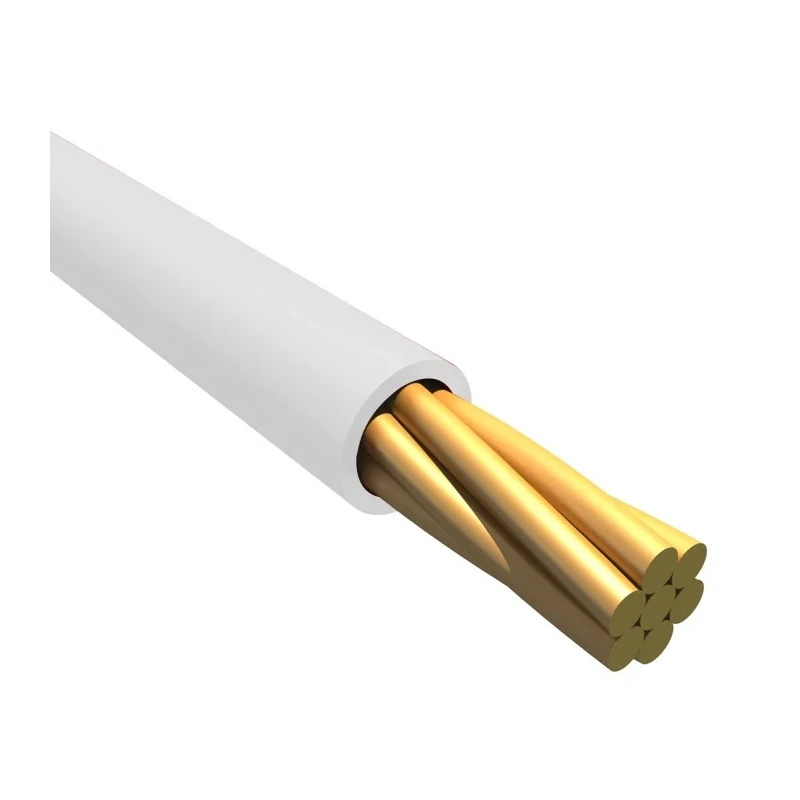

Alpha Wire Ecogen Ecowire Plus Series White 0.33 mm² 22 AWG Hook Up Wire 7/0.25 mm Core Strands 30 m MPPE 6823 WH005

Free Delivery in India | Lowest Global Shipping Charges

Alpha Wire Ecogen Ecowire Plus Series White 0.33 mm² 22 AWG Hook Up Wire 7/0.25 mm Core Strands 30 m MPPE 6823 WH005

Name: Alpha Wire Ecogen Ecowire Plus Series White 0.33 mm² 22 AWG Hook Up Wire 7/0.25 mm Core Strands 30 m MPPE 6823 WH005
Brand: ALPHA WIRE
SKU: 363310
Price: 77.76 USD
Availability: InStock



Category Hook Up Wire Brand ALPHA WIRE Condition New

Specifications

Country of Origin	India
Voltage	300V
Brand	Alpha Wire
Temperature range	- 40°C to +110°C
CROSS SECTIONAL AREA	0.33mm²
Model	6823 WH005
Cable Length	30m
Series	Ecogen Ecowire Plus
Outside diameter	1.17mm
Maximum Operating Temperature	110°C
Conductor Material	Copper
Insulation Thickness	0.008 Inch (0.20 mm)
Wire Diameter	0.046 Inch (1.17 mm)
Minimum Operating Temperature	-40°C
Conductor Size	22 AWG (0.35 mm²)
Jacket Material	MPPE
Standards/Approvals	CE, ISO 6722, Reach compliant, RoHS compliant
Jacket Colour	White
Fire Behaviour	Flame Retardant, Halogen Free, Low Smoke
American Wire Gauge	22AWG
Number of Strands	7
Core Strands	7 x 0.25mm
Size of Strands	0.25mm
Stranding	7/30 (7 x 0.25)

Key Features

Constructed with stranded bare copper conductors for excellent conductivity.
Features modified polyphenylene ether (MPPE) insulation offering superior fluid resistance and dielectric strength.
Rated for 300 V voltage and operating temperatures from -40°C to 110°C.
Complies with CE, ISO 6722, RoHS, and Reach standards ensuring quality and environmental compliance.
White jacket color with flame retardant, halogen free, and low smoke characteristics.
Insulation thickness of 0.008 inch (0.20 mm) ensures reduced wall thickness without sacrificing protection.
Wire diameter is 1.17 mm (0.046 inch), with 7 strands of 0.25 mm each enhancing flexibility.
EcoWire® Plus series providing an eco-friendly and recyclable alternative to traditional PVC wiring.

Product Description

Alpha Wire 6823 WH005 Ecogen Ecowire Plus Series White Hook Up Wire with a cross-sectional area of 0.33 mm² (22 AWG) and a cable length of 30 meters designed for high durability and efficiency.

Constructed with stranded bare copper conductors (7 strands of 0.25 mm) that promote excellent electrical conductivity and mechanical flexibility, this wire features modified polyphenylene ether (MPPE) insulation that is lighter, tougher, and offers superior dielectric strength in comparison to conventional PVC insulation.

The insulation thickness of 0.008 inch (0.20 mm) allows for a reduced wall thickness while maintaining protection and flame retardant, halogen free, low smoke behavior enhances safety in industrial environments.

Rated for 300 V and an operating temperature range between -40°C to 110°C, this hook up wire meets CE, ISO 6722, Reach, and RoHS compliance standards ensuring reliable performance and environmental responsibility.

EcoWire Plus is resistant to oils, solvents, fuels, and other hazardous liquids, making it ideal for challenging applications in solar power installations, transportation sectors, wind power systems, industrial machinery, and medical devices.

Stranded bare copper conductors ensure excellent electrical performance. MPPE insulation provides chemical resistance and superior dielectric properties. Flame retardant, halogen free, and low smoke characteristics improve workplace safety.

Complies with international standards including CE, ISO 6722, RoHS, and Reach. Wire diameter of 1.17 mm supports flexible installation. Cable length of 30 meters suits extensive wiring needs. Eco-friendly and fully recyclable material supports sustainable manufacturing.

Wide temperature range from -40°C to 110°C supports diverse industrial conditions.

The pack contains one reel of 30 meters of high-quality hook up wire from the EcoWire Plus series by Alpha Wire. Suitable for industrial, electrical, automation, and manufacturing uses, this cable is engineered to meet harsh environmental and electrical standards.

Explore the comprehensive assortment of Hook Up Wires and related cables available in the Electronics & Electricals category at EnvMart for your specific technical requirements.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

This model is rated for a voltage of 300V, making it suitable for various electrical applications.

It operates within a temperature range of -40°C to +110°C, allowing for use in diverse industrial conditions.

The wire features stranded bare copper conductors for excellent conductivity and modified polyphenylene ether (MPPE) insulation for superior fluid resistance and dielectric strength.

The wire has an outside diameter of 1.17 mm (0.046 inch) and an insulation thickness of 0.008 inch (0.20 mm).

This unit comes with a cable length of 30 meters, suitable for extensive wiring needs.

It complies with CE, ISO 6722, RoHS, and Reach standards, ensuring quality and environmental compliance.

The wire has a stranding configuration of 7/30, consisting of 7 strands of 0.25 mm each, enhancing flexibility.

Yes, it features flame retardant, halogen free, and low smoke characteristics, improving safety in industrial environments.

It is ideal for applications in solar power installations, transportation sectors, wind power systems, industrial machinery, and medical devices.

The cross-sectional area of this hook up wire is 0.33 mm², corresponding to 22 AWG.

The MPPE insulation offers superior dielectric strength and chemical resistance, making it suitable for challenging environments.

This model consists of 7 strands, each measuring 0.25 mm, which contributes to its flexibility and conductivity.
