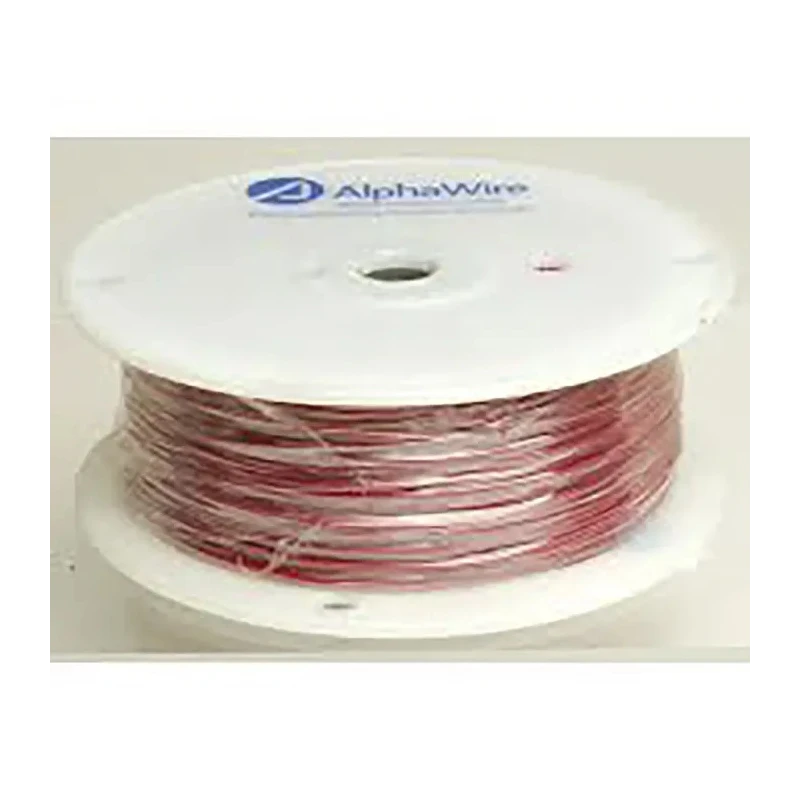

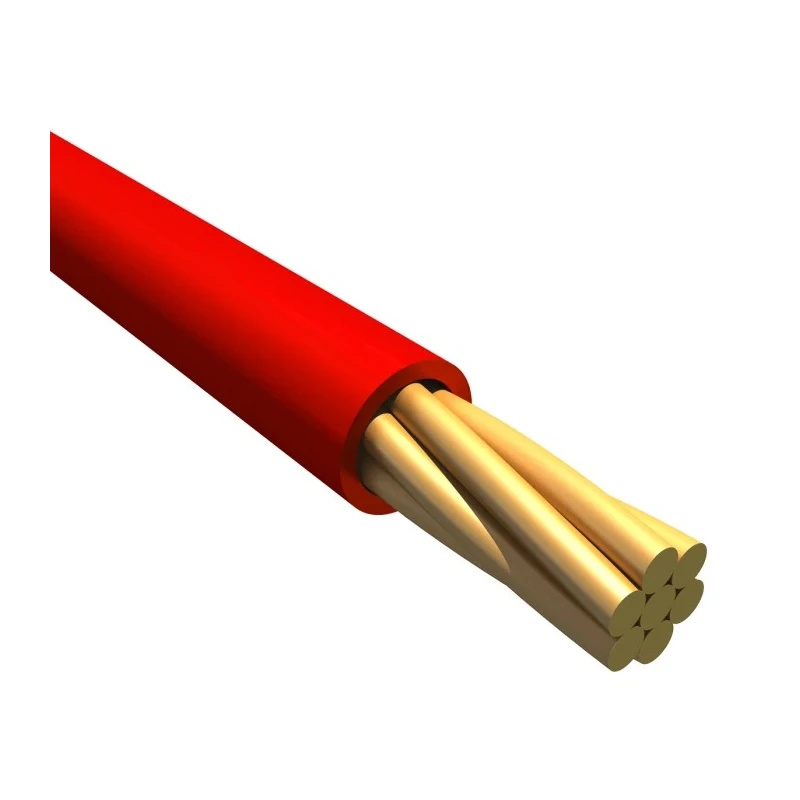

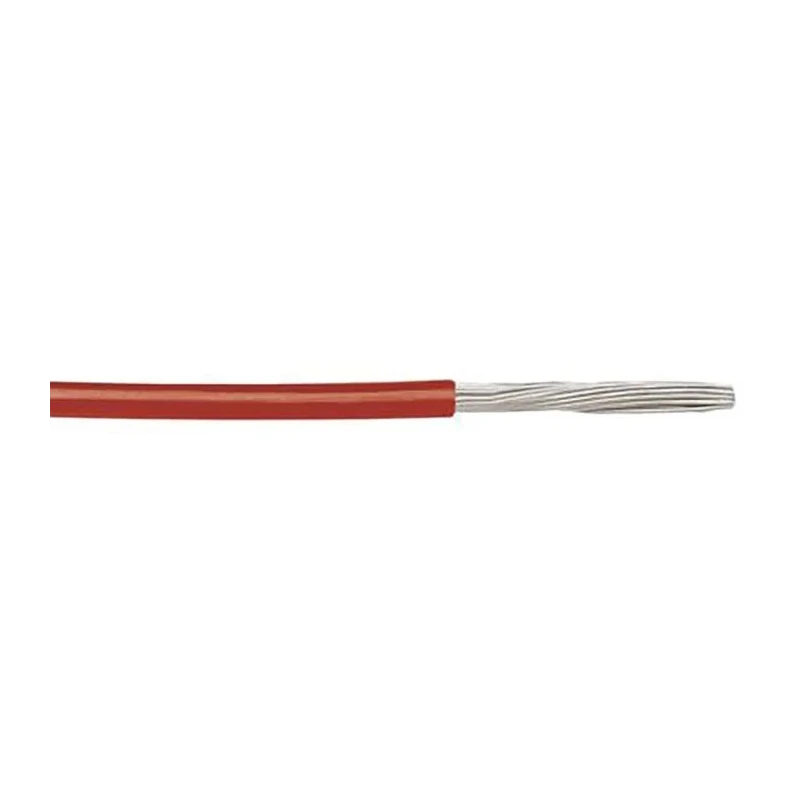

Alpha Wire Ecogen Ecowire Plus Series Red Hook Up Wire 0.08 mm² 28 AWG 7/0.12 mm Core Strands 30 m MPPE 6820 RD005
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 300V |
| Brand | Alpha Wire |
| Temperature range | - 40°C to +110°C |
| CROSS SECTIONAL AREA | 0.08mm² |
| Model | 6820 RD005 |
| Cable Length | 30m |
| Series | Ecogen Ecowire Plus |
| Outside diameter | 0.79mm |
| Maximum Operating Temperature | 110°C |
| Conductor Material | Copper |
| Insulation Thickness | 0.008 Inch (0.20 mm) |
| Wire Diameter | 0.031 Inch (0.79 mm) |
| Minimum Operating Temperature | -40°C |
| Conductor Size | 28 AWG (0.09mm²) |
| Jacket Material | MPPE |
| Standards/Approvals | CE, ISO 6722, Reach compliant, RoHS compliant |
| Jacket Colour | Red |
| Fire Behaviour | Flame Retardant, Halogen Free, Low Smoke |
| American Wire Gauge | 28AWG |
| Number of Strands | 7 |
| Core Strands | 7 x 0.12mm |
| Size of Strands | 0.12mm |
| Stranding | 7/36 (7 x 0.12) |
Key Features
- Constructed with stranded bare copper conductors for optimal conductivity.
- Features mPPE insulation that is halogen-free and flame retardant with low smoke characteristics.
- Designed for a voltage rating of 300 V and operating temperature range from -40°C to +110°C.
- Wire diameter is 0.79 mm with insulation thickness of approximately 0.20 mm.
- Suitable for demanding factory applications with excellent resistance to oils, solvents, and hazardous fluids.
- Eco-friendly and fully recyclable insulation compliant with RoHS and REACH standards.
- Stranding configuration is 7 strands each of 0.12 mm diameter to balance flexibility and strength.
Product Description
Alpha Wire 6820 RD005 Ecogen Ecowire Plus Series Red Hook Up Wire is a high-quality electrical wire designed for industrial and demanding applications. The product offers a cross-sectional area of 0.08 mm² (28 AWG) with stranded bare copper conductors configured as 7 strands of 0.12 mm diameter each, ensuring excellent electrical conductivity and flexibility.
The insulation material is modified polyphenylene ether (mPPE), which provides superior dielectric strength compared to conventional PVC insulation. This modified PPE insulation is halogen-free, flame retardant, low smoke, and environmentally friendly, meeting ROHS and REACH compliance requirements.
This wire supports a nominal voltage rating of 300 V and can operate reliably within a temperature range of -40°C to +110°C, making it suitable for use in industrial automation, solar power systems, transportation equipment, wind power installations, and medical devices.
The red-colored jacket enhances identification and is made of tough, lightweight mPPE which also improves fluid resistance, offering protection against oils, solvents, fuels, and other hazardous liquids common in industrial environments.
The wire has an overall diameter of 0.79 mm and an insulation thickness of 0.008 inches (0.20 mm), which allows for a reduced wall thickness without compromising on safety or performance characteristics. It is supplied in a convenient 30-meter reel.
Stranded bare copper conductors for optimal electrical performance. MPPE insulation offers excellent fluid resistance and environmental compliance. Operating range from -40 to +110 °C supports diverse industrial environments.
Meets CE, ISO 6722, RoHS, and Reach standards for quality assurance. Flame retardant, halogen-free, and low smoke jacket for safety and compliance. Eco-friendly, 100% recyclable alternative to traditional PVC or XLPE wires.
Ideal for use in demanding factory automation, solar, transportation, wind power, and medical applications. This Alpha Wire Ecogen Ecowire Plus Series wire combines durability, safety, and environmental responsibility in a compact flexible cable solution.
Browse more in the Electronics & Electricals Wires & Cables Hook Up Wire category on EnvMart for comprehensive wiring solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The wire has a voltage rating of 300 V, making it suitable for various industrial applications.
It operates reliably within a temperature range of -40°C to +110°C, accommodating diverse industrial environments.
It features stranded bare copper conductors configured as 7 strands of 0.12 mm diameter each, ensuring optimal electrical conductivity and flexibility.
The insulation is made of modified polyphenylene ether (mPPE), which is halogen-free, flame retardant, and low smoke, while the jacket is also made of mPPE.
The overall diameter of this wire is 0.79 mm, with an insulation thickness of approximately 0.20 mm.
It meets CE, ISO 6722, RoHS, and REACH compliance standards, ensuring quality assurance and environmental responsibility.
This model is supplied in a convenient 30-meter reel, suitable for various applications.
The wire is flame retardant, halogen-free, and has low smoke characteristics, enhancing safety in industrial environments.
It is suitable for demanding factory automation, solar power systems, transportation equipment, wind power installations, and medical devices.
The wire has 7 strands, each with a diameter of 0.12 mm, providing a balance of flexibility and strength.
Yes, the mPPE insulation is eco-friendly and fully recyclable, compliant with environmental standards.
The wire is rated at 28 AWG, which corresponds to a cross-sectional area of 0.08 mm².
