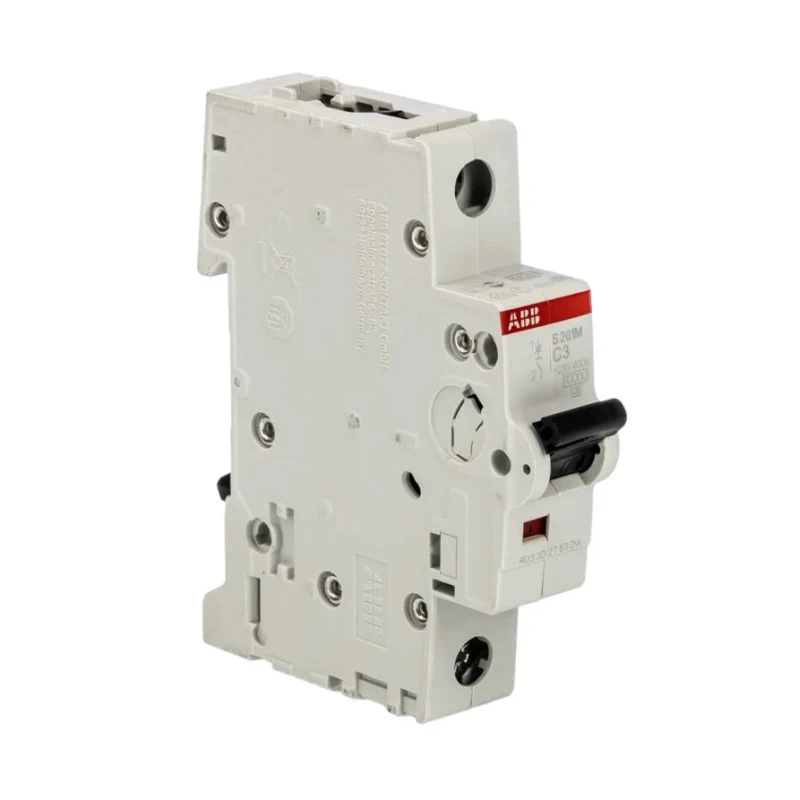

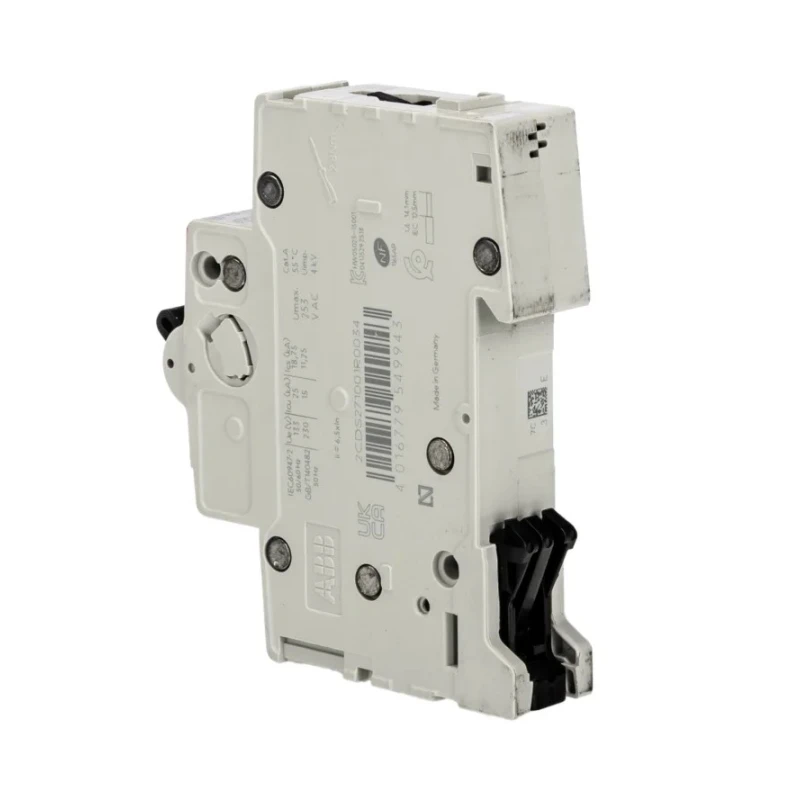

ABB System Pro M Compact S200M Miniature Circuit Breaker, 1-Pole, 3A, Type C, 230V AC, 72V DC, 10kA 2CDS271001R0034 S201M-C3

ABB 2CDS271001R0034 S201M-C3 System Pro M Compact S200M Miniature Circuit Breaker is a high-quality electrical protective device designed for commercial and industrial electrical installations. It is engineered to provide protection from overload current and short circuits, ensuring electrical systems operate safely and reliably.

This miniature circuit breaker has a 1-pole configuration with a nominal current rating of 3 amperes, meeting diverse circuit requirements. Its Type C tripping characteristic allows it to effectively manage higher inrush currents, notably found in motors and inductive loads.

The breaker supports 230 volts AC and 72 volts DC rated voltages, enabling broad applicability across AC and DC electrical setups. Its high breaking capacity of 10 kA ensures strong fault current interruption capability, minimizing damage in fault conditions.

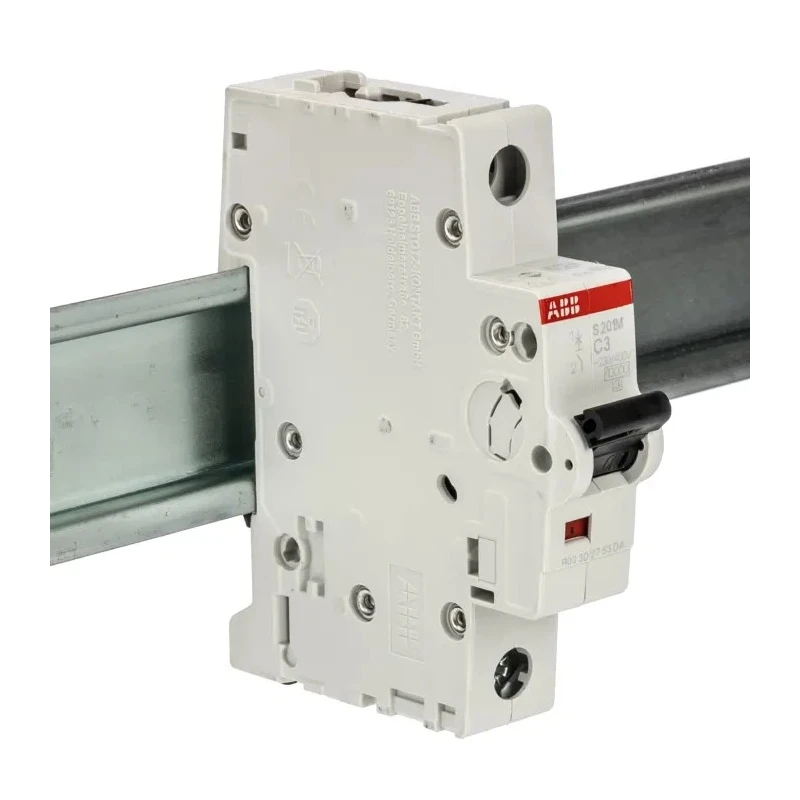

Mounting is facilitated by DIN rail compatibility, making installation straightforward in industrial control panels. The screw terminal provides a secure and reliable electrical connection. With an IP20 rating, it offers basic protection against solid objects and is suitable for typical electrical enclosures.

The physical dimensions are compact with an overall height of 88 mm, depth of 69 mm, and width of 17.5 mm, optimizing panel space usage. The device complies with IEC/EN 60898-1 and IEC/EN 60947-2 international standards, assuring quality and safety.

Its thermal and electromechanical tripping mechanisms provide dependable protection by accurately reacting to overload conditions. Originating from Germany, this ABB miniature circuit breaker is also designed for disassembly, supporting sustainability goals.

Designed for installation on DIN rails with compact dimensions. Supports 230V AC and 72V DC operations for versatile applications. Offers a high breaking capacity of 10 kA ensuring enhanced fault protection. Incorporates thermal and electromechanical tripping for precise overload response.

Features a screw terminal type for stable electrical connections. Rated for IP20, suitable for typical industrial environments. Compact size optimizes space: 88mm height, 69mm depth, and 17.5mm width. Meets IEC/EN 60898-1 and IEC/EN 60947-2 standards for safety compliance.

This Miniature Circuit Breaker is ideal for commercial and industrial electrical applications that require dependable overload and short circuit protection. It is suitable for protecting circuits supporting machinery and equipment with fluctuating load patterns, enhancing electrical system safety and reliability.
