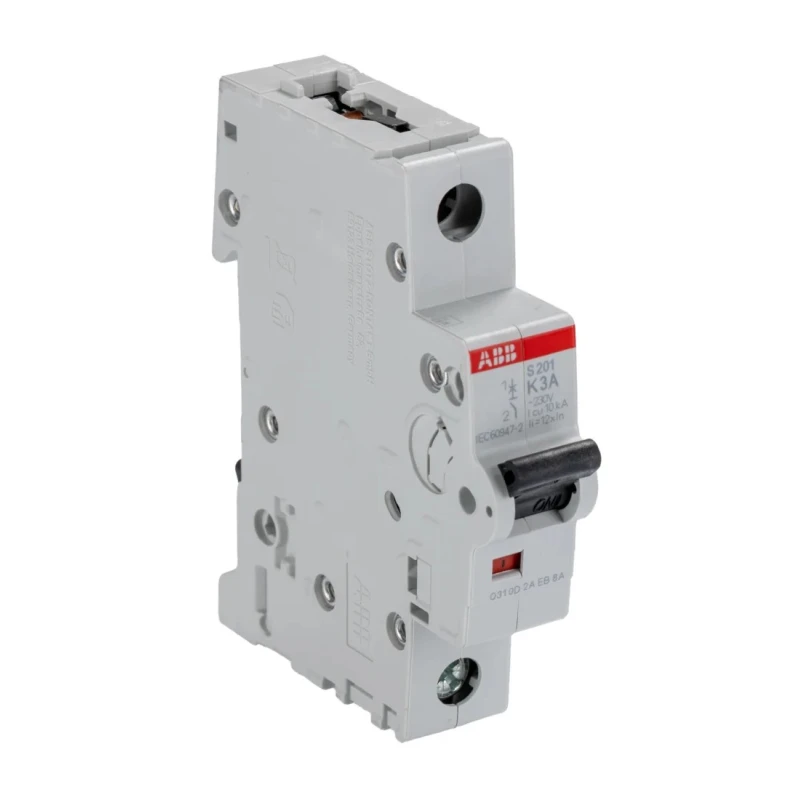

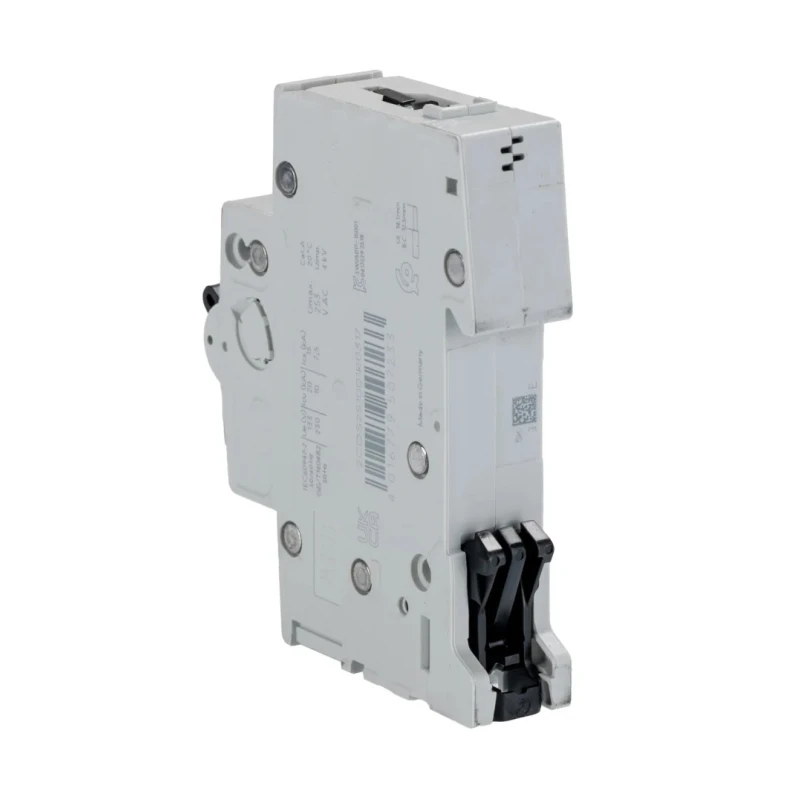

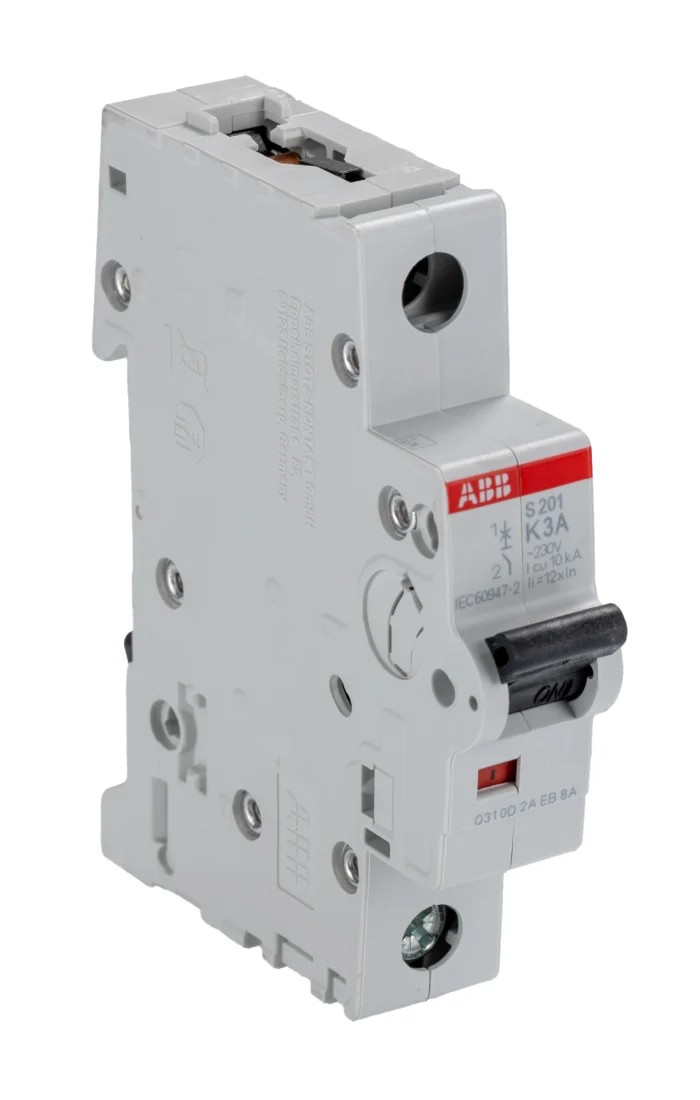

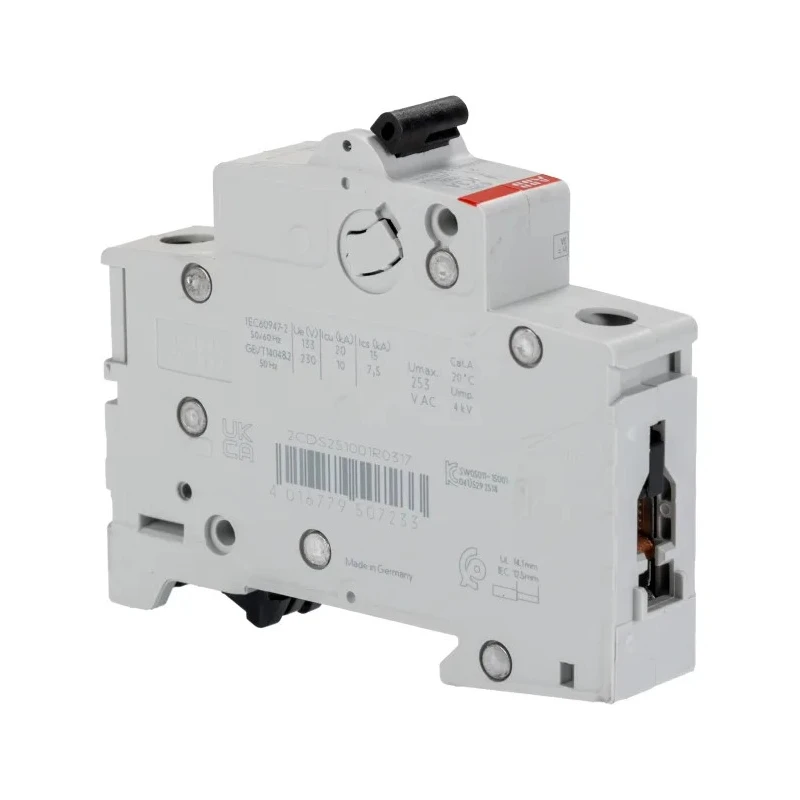

ABB System Pro M Compact S200 Miniature Circuit Breaker, 1-Pole, 3A, Type K Tripping, 230V AC, 72V 2CDS251001R0317 S201-K3

ABB 2CDS251001R0317 S201-K3 is a high-performance miniature circuit breaker (MCB) from the System Pro M Compact S200 series. It is engineered for industrial and commercial electrical installations requiring sensitive overcurrent protection. The device supports a current rating of 3A, with Type K tripping characteristics optimized for precise short circuit and overload detection.

The breaker is rated for 230V alternating current and 72V direct current, offering flexible use across various power systems. Its 10 kA breaking capacity ensures it can safely interrupt significant fault currents, protecting connected equipment and wiring. The compact dimensions (17.5mm width, 69mm depth and height) allow it to be mounted on DIN rails in distribution boards with ease.

The thermomagnetic mechanism integrates electromagnetic and thermal tripping for dependable performance over a range of currents, significantly reducing the risk of electrical faults in industrial machinery, commercial electrical panels, and automated manufacturing systems. The reset lever actuator enables straightforward manual resetting following a circuit interruption.

Built according to IEC/EN 60898-1 and IEC/EN 60947-2 standards, this MCB meets rigorous international safety and quality requirements. Its IP20 and IP40 ratings offer suitable protection against mechanical intrusion and dust in typical electrical enclosures.

Manufactured in Germany, the product is part of ABB's Better World initiative that emphasizes sustainability and responsible design. This Miniature Circuit Breaker is ideal for managing electrical distribution, safeguarding critical infrastructure, and maintaining equipment continuity in demanding industrial and commercial environments.

Designed for installation on standard DIN rails with screw terminal connections. Rated for both 230V AC and 72V DC voltage applications. High 10 kA breaking capacity ensures reliable short circuit protection. Compact dimensions enable integration into S200 series system setups.

Thermomagnetic electromagnetic tripping mechanism provides precise circuit protection. Complies with IEC/EN 60898-1 and IEC/EN 60947-2 standards for safety and performance. Reset lever actuator allows easy manual operation after tripping events.

IP20 and IP40 rated for protection and durability in electrical environments. Engineered and manufactured in Germany with sustainability considerations. Explore more from the ABB System Pro M Compact series for reliable circuit protection solutions in commercial and industrial applications on EnvMart.
