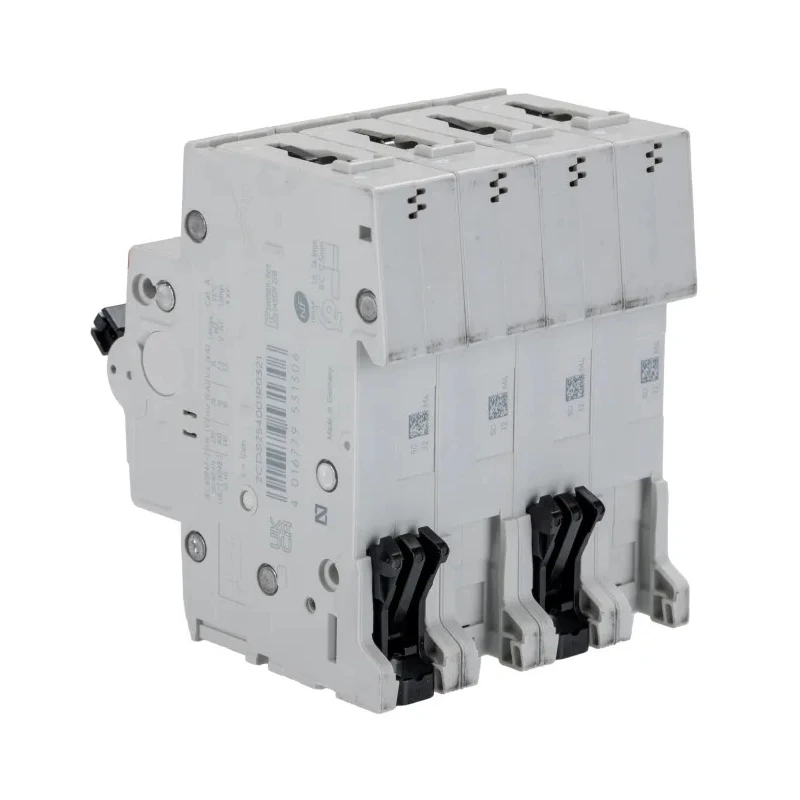

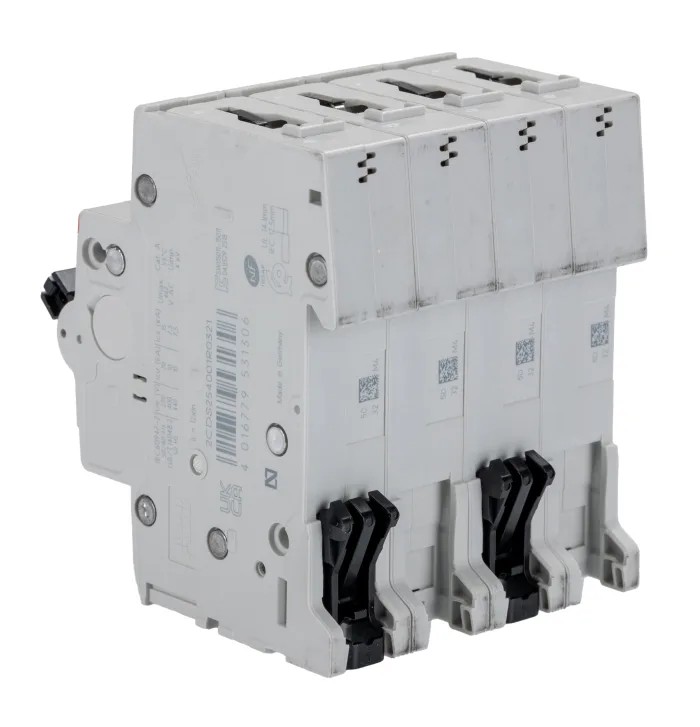

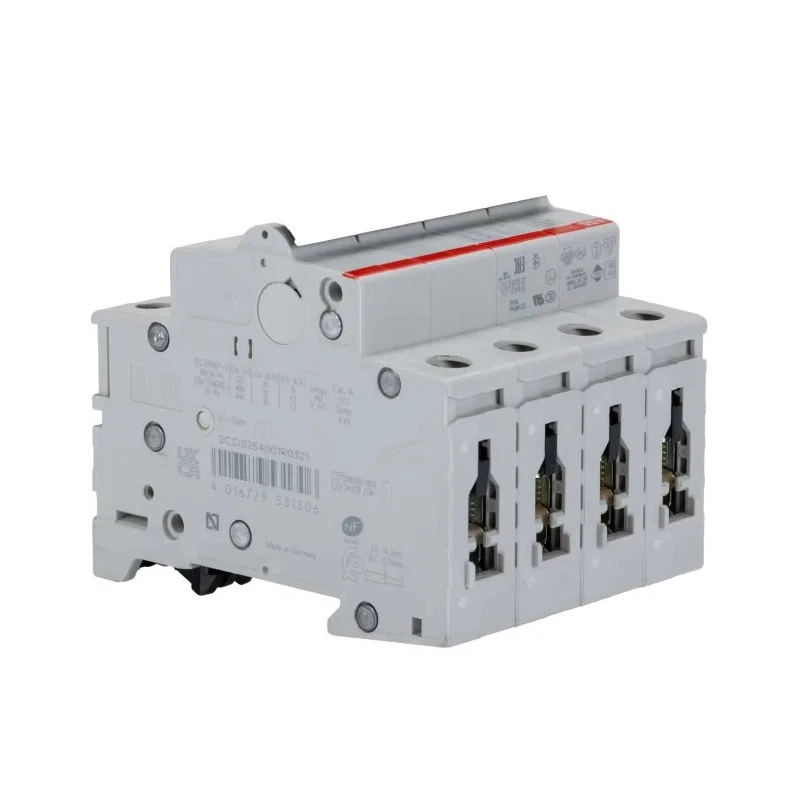

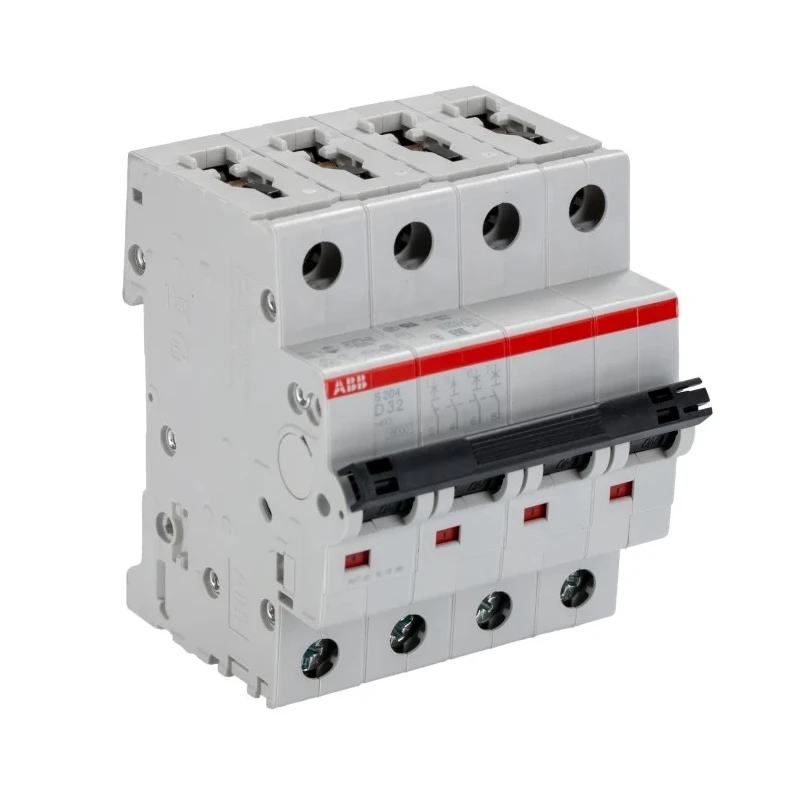

ABB System Pro M Compact S200 Miniature Circuit Breaker 4-Pole 32A Type D 400V AC 10 kA Breaking 2CDS254001R0321 S204-D32

Free Delivery in India | Lowest Global Shipping Charges

ABB System Pro M Compact S200 Miniature Circuit Breaker 4-Pole 32A Type D 400V AC 10 kA Breaking 2CDS254001R0321 S204-D32



Category Miniature Circuit Breaker Brand ABB Condition New

Specifications

Country of Origin	Germany
Range	System Pro M Compact
Brand	ABB
Height	69mm
Model	2CDS254001R0321 S204-D32
Depth	69mm
IP Rating	IP20, IP40
Width	70mm
Mount Type	DIN Rail
Current Rating	32A
Series	S200
Terminal type	Screw
Breaking Capacity	10kA
Number of Poles	4
Standards/Approvals	IEC/EN 60898-1, IEC/EN 60947-2
Rated AC Voltage	400V ac
Tripping Characteristics	Type D
Better World Claim	Designed for Disassembly
Tripping Mechanism	Electromagnetic, Thermomagnetic
Reset Actuator Type	Lever

Key Features

Provides robust short circuit protection for electrical systems.
Features 4-pole configuration for enhanced circuit control and safety.
Rated current of 32 amperes ensures effective overload handling.
Type D tripping characteristic designed for high inrush current applications.
Has a breaking capacity of 10 kiloamperes to handle fault currents.
Operates at a rated AC voltage of 400 volts, suitable for industrial and commercial use.
Designed for DIN rail mounting, enabling quick and secure installation.
Equipped with screw terminal type for firm electrical connections.

Product Description

ABB 2CDS254001R0321 S204-D32 System Pro M Compact S200 miniature circuit breaker is a high-performance 4-pole electrical safety device with a 32 ampere current rating and Type D tripping characteristics, designed to protect circuits from overloads and short circuits in industrial and commercial electrical installations.

This MCB supports robust short circuit interruption with a breaking capacity of 10 kiloamperes at a rated voltage of 400 volts AC, ensuring high reliability and safety in demanding electrical environments.

The device features a DIN rail mount design that facilitates easy integration into existing electrical panels and distribution boards. Screw terminals provide secure and reliable electrical connections, while the lever reset actuator offers straightforward manual reset functionality after a trip event.

Equipped with thermomagnetic electromagnetic tripping mechanism, it ensures precise and responsive tripping for overload and fault conditions. The 4-pole configuration improves circuit control and helps safeguard multiple phases effectively.

Certified to international standards IEC/EN 60898-1 and IEC/EN 60947-2, this miniature circuit breaker is engineered with sustainability in mind, featuring design for disassembly to support responsible lifecycle management.

Provides reliable short circuit and overload protection. 4-pole configuration enhances multi-phase circuit safety. Type D trip curve suitable for high inrush current loads such as motors. Breaking capacity of 10 kA ensures safety during fault conditions.

Rated for 400 V AC operation in commercial and industrial settings. DIN rail mounting facilitates straightforward installation. Screw terminals ensure secure electrical connections. Lever reset actuator allows quick manual reset after tripping.

Thermomagnetic tripping mechanism for accurate response. Compliant with IEC/EN 60898-1 and IEC/EN 60947-2 standards.

This Miniature Circuit Breaker is ideal for electrical distribution management in manufacturing plants, commercial buildings, automation systems requiring high reliability, and machinery protection applications. Installation is designed to be indoors; for outdoor use, appropriate enclosure is recommended to protect against environmental factors.
