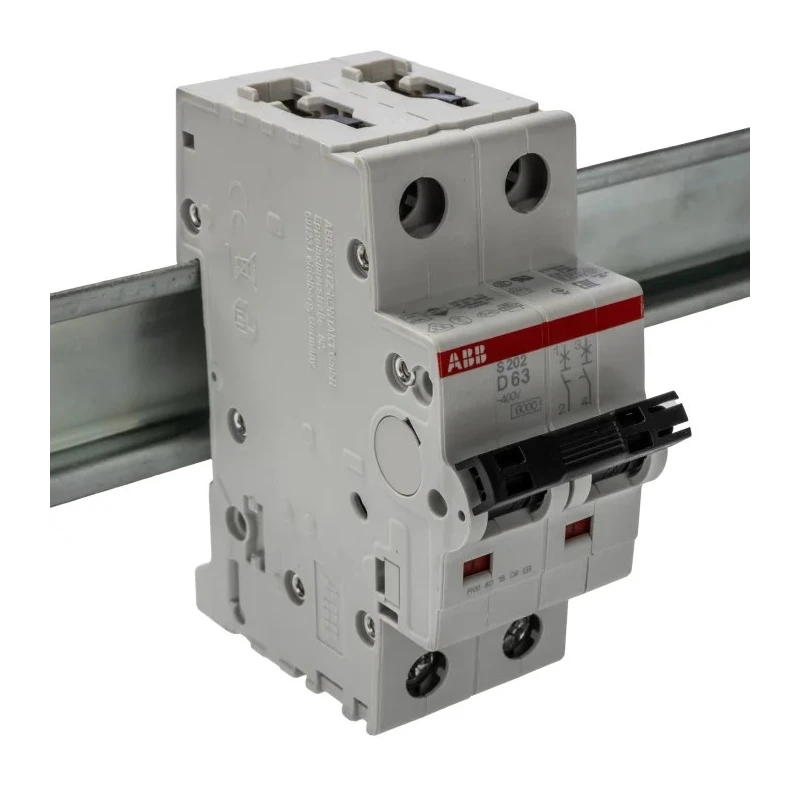

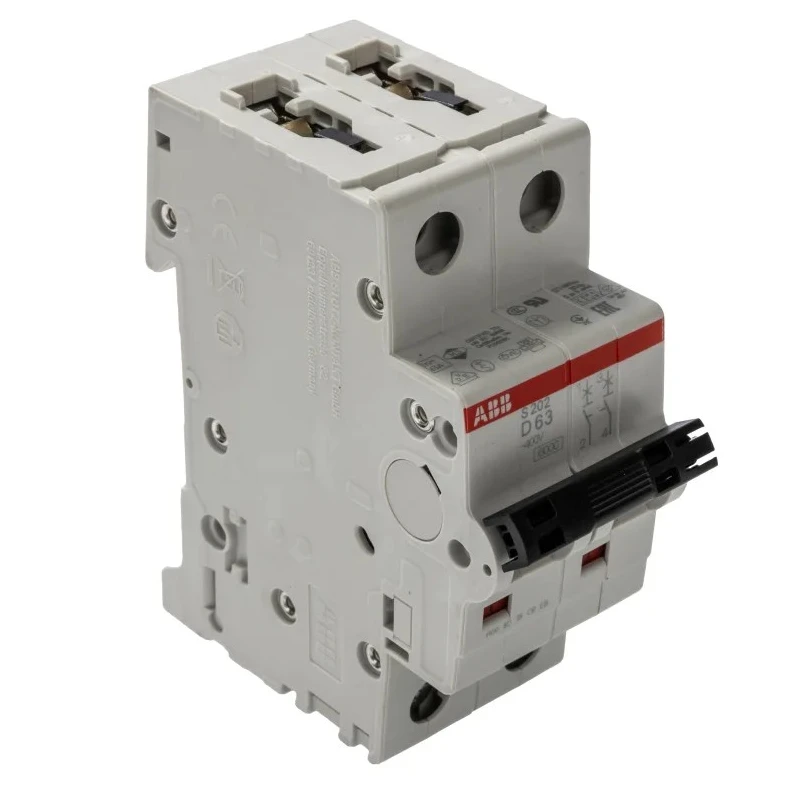

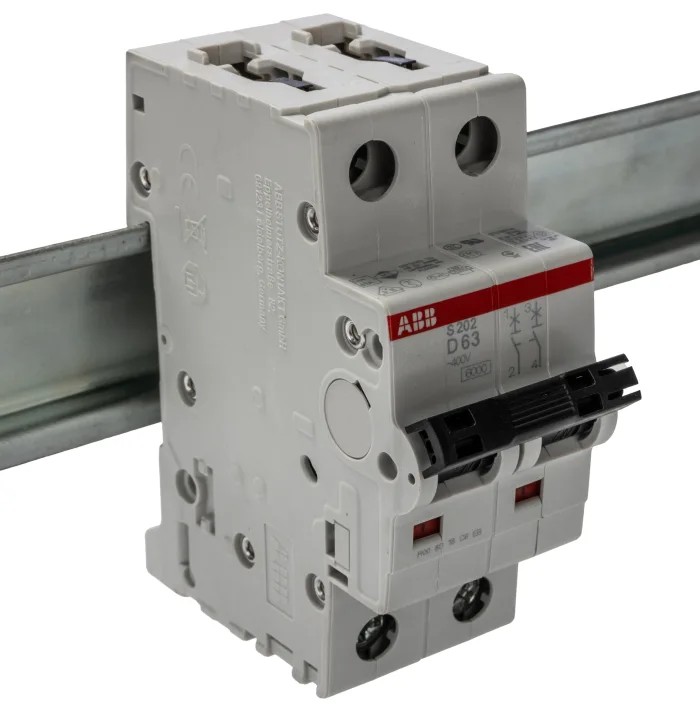

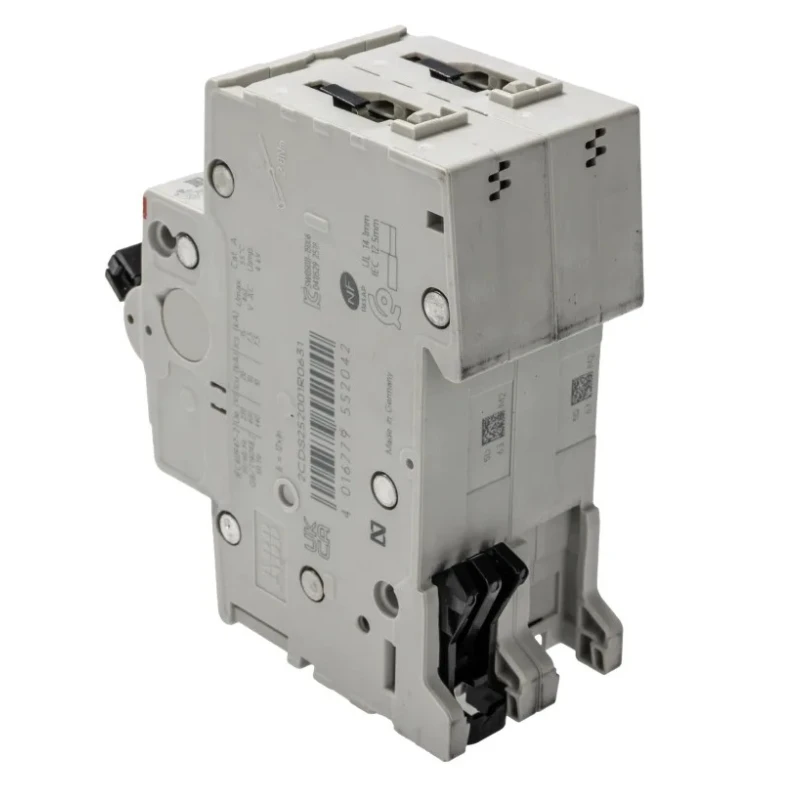

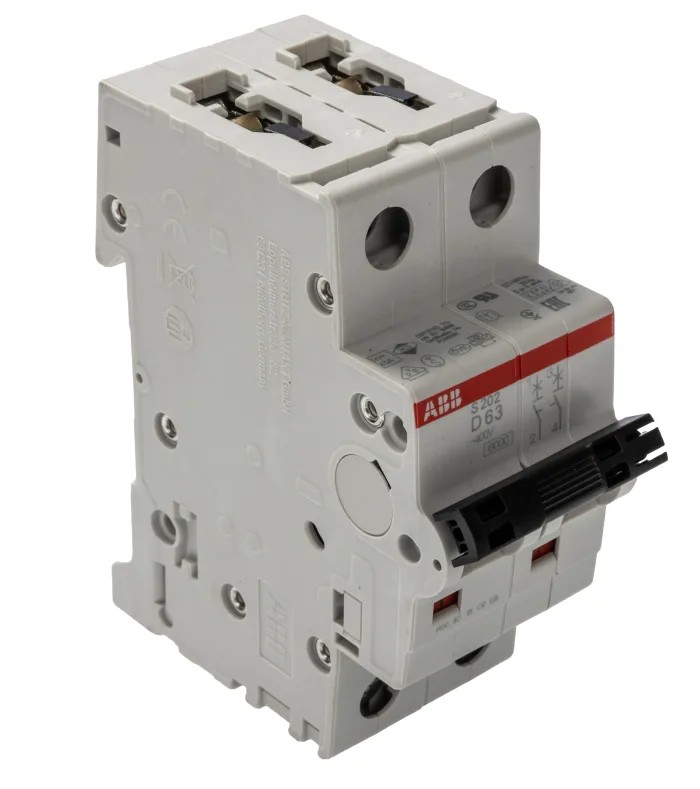

ABB System Pro M Compact S200 Miniature Circuit Breaker, 2-Pole, 63A, Type D, 400V AC, 125V DC, 10 2CDS252001R0631 S202-D63

Free Delivery in India | Lowest Global Shipping Charges

ABB System Pro M Compact S200 Miniature Circuit Breaker, 2-Pole, 63A, Type D, 400V AC, 125V DC, 10 2CDS252001R0631 S202-D63



Category Miniature Circuit Breaker Brand ABB Condition New

Specifications

Country of Origin	Germany
Range	System Pro M Compact
Brand	ABB
Height	69mm
Model	2CDS252001R0631 S202-D63
Depth	69mm
IP Rating	IP40, IP20
Width	35mm
Mount Type	DIN Rail
Current Rating	63A
Series	S200
Terminal type	Screw
Breaking Capacity	10kA
Number of Poles	2
Standards/Approvals	IEC/EN 60947-2, IEC/EN 60898-1
Rated AC Voltage	400V ac
Rated DC Voltage	125V dc
Tripping Characteristics	Type D
Better World Claim	Designed for Disassembly
Tripping Mechanism	Thermomagnetic, Electromagnetic
Reset Actuator Type	Lever

Key Features

Thermomagnetic and electromagnetic tripping mechanism ensures rapid response to faults.
Designed for DIN rail mounting with screw terminals for secure installation.
Dual pole configuration offers enhanced protection in commercial and industrial applications.
Complies with IEC/EN 60947-2 and IEC/EN 60898-1 standards for safety and reliability.
IP40 and IP20 rated for protection in standard electrical enclosures.
Compact dimensions of 69mm height, 69mm depth, and 35mm width optimize panel space.
Designed for disassembly to facilitate recycling and sustainability.

Product Description

ABB 2CDS252001R0631 S202-D63 Miniature Circuit Breaker is a high-performance protective device designed to safeguard electrical circuits in commercial, industrial, and automation environments. With a current rating of 63 amps and a high breaking capacity of 10 kA, this device efficiently interrupts fault currents to prevent damage and ensure operational safety.

The breaker features a dual-pole configuration enabling simultaneous disconnection of both live and neutral conductors. Its Type D tripping characteristics make it ideal for circuits with equipment subject to high inrush currents, such as motors and transformers.

Installation is straightforward with a DIN rail mount and screw terminals that provide reliable and secure wiring connections. The thermomagnetic and electromagnetic tripping mechanism guarantees quick response times to both overload and short circuit conditions, enhancing system protection.

Compliant with IEC/EN 60947-2 and IEC/EN 60898-1 standards, the breaker boasts IP40 and IP20 ingress protection ratings to safeguard against foreign objects and limited dust exposure. Physically, it measures 69 mm in height and depth with a width of 35 mm, ensuring an efficient footprint in distribution panels.

Moreover, this ABB product is designed for disassembly, supporting environmental sustainability goals by facilitating recycling at end of life. The lever-type reset actuator provides user-friendly operation, making maintenance and resets simple and effective.

Applications include protection for industrial machinery, commercial electrical distribution, automation systems, and motor circuits susceptible to high inrush currents. It ensures dependable circuit protection to maintain system integrity and safety across diverse electrical installations.

Rated for 63A current and 10 kA breaking capacity at 400V AC and 125V DC. Type D characteristics for high inrush current handling. Dual-pole scheme with thermomagnetic and electromagnetic tripping. DIN rail mounting and screw terminals for easy integration.

Designed for disassembly aiding environmental sustainability. Explore more electrical protection solutions in the Circuit Breakers & Fuse category on EnvMart for reliable, certified products aimed at industrial and commercial applications.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

This model has a current rating of 63A, making it suitable for various electrical applications.

It is rated for 400V AC and 125V DC, allowing for versatility in different electrical systems.

The breaking capacity is 10 kA, which enables it to effectively interrupt fault currents.

It features both thermomagnetic and electromagnetic tripping mechanisms for quick response to overload and short circuit conditions.

This unit is designed for DIN rail mounting, which simplifies installation in electrical panels.

It has compact dimensions of 69mm in height, 69mm in depth, and 35mm in width, optimizing space in panels.

It has IP40 and IP20 ratings, providing protection against foreign objects and limited dust exposure.

This model has Type D tripping characteristics, making it suitable for circuits with high inrush currents, such as motors and transformers.

It complies with IEC/EN 60947-2 and IEC/EN 60898-1 standards, ensuring safety and reliability in its operation.

It features screw terminals, which provide secure wiring connections for reliable operation.

Yes, it is designed for disassembly, facilitating recycling and supporting environmental sustainability goals.

It is suitable for protecting industrial machinery, commercial electrical distribution, and automation systems, especially those with high inrush currents.
