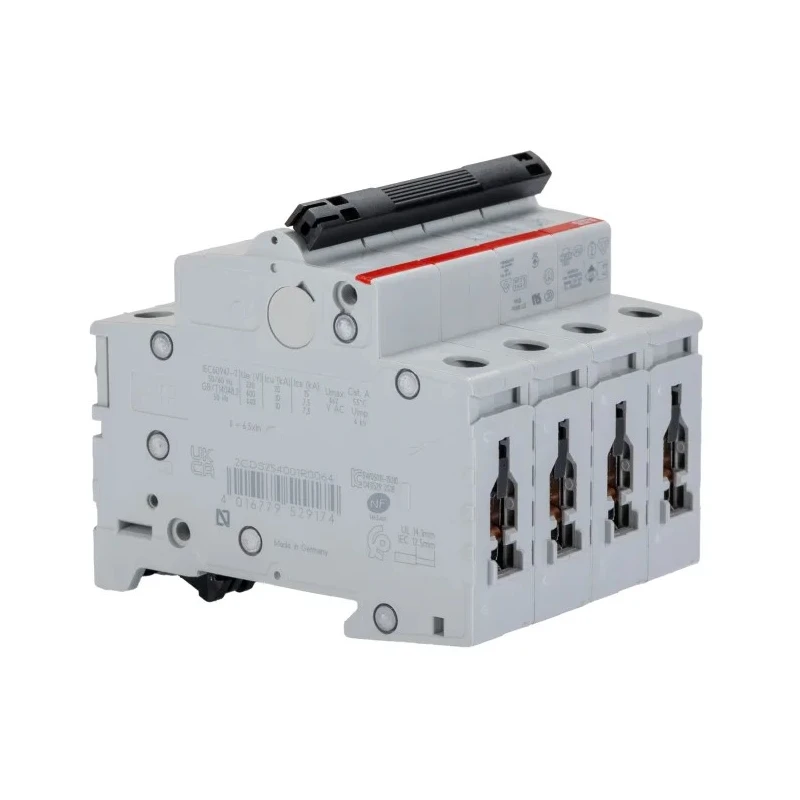

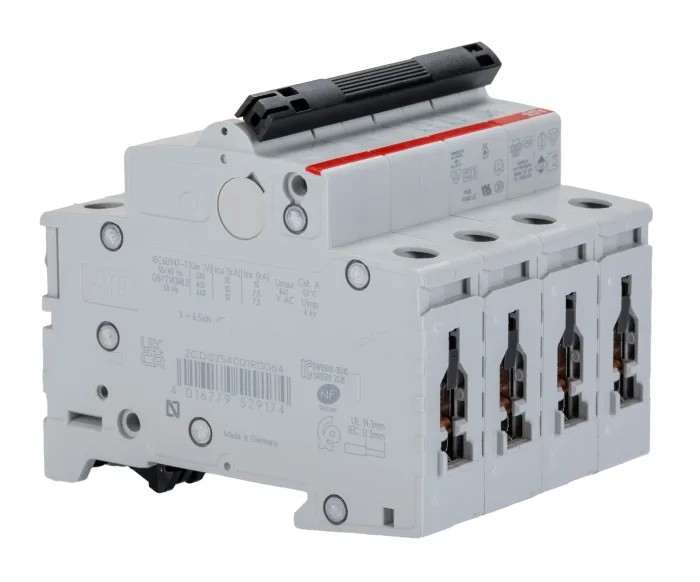

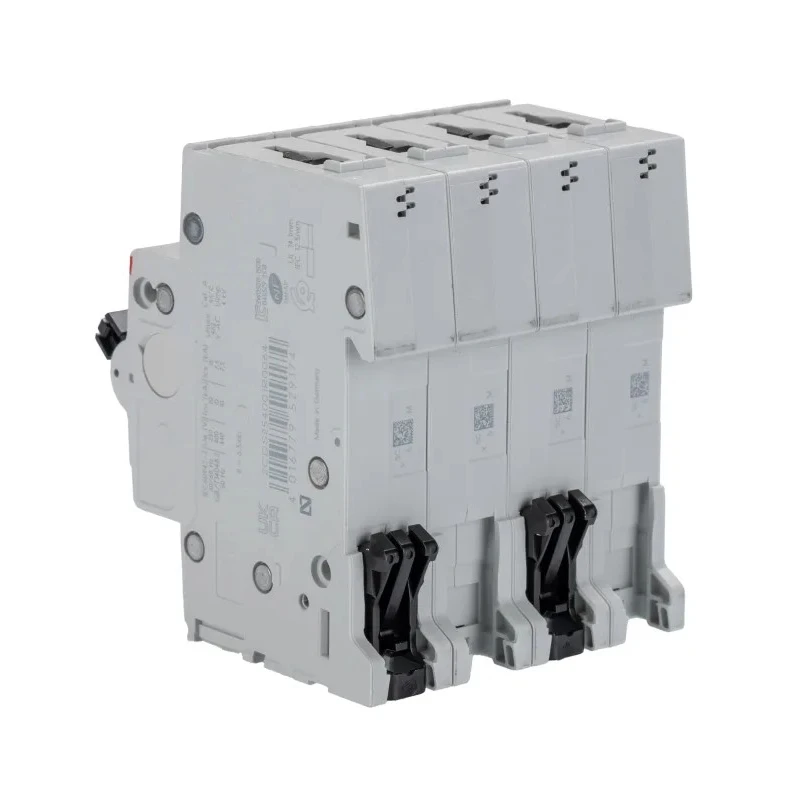

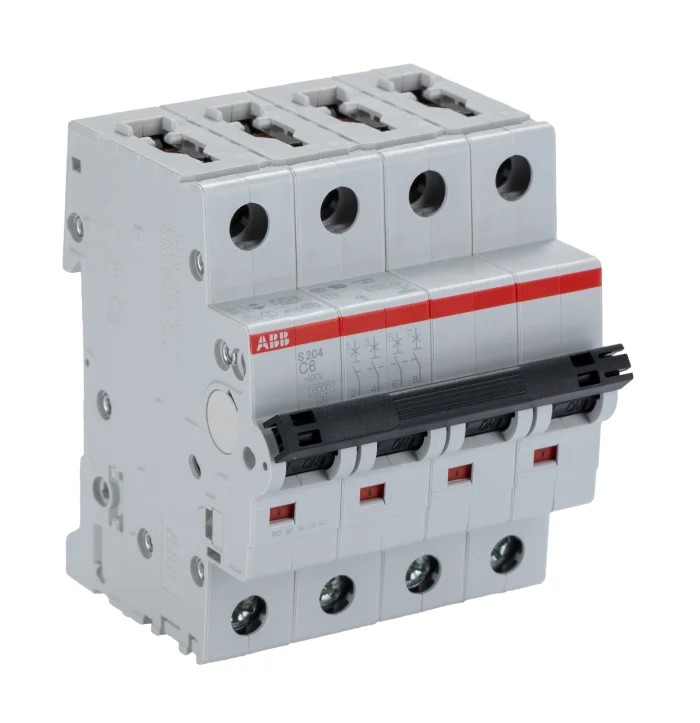

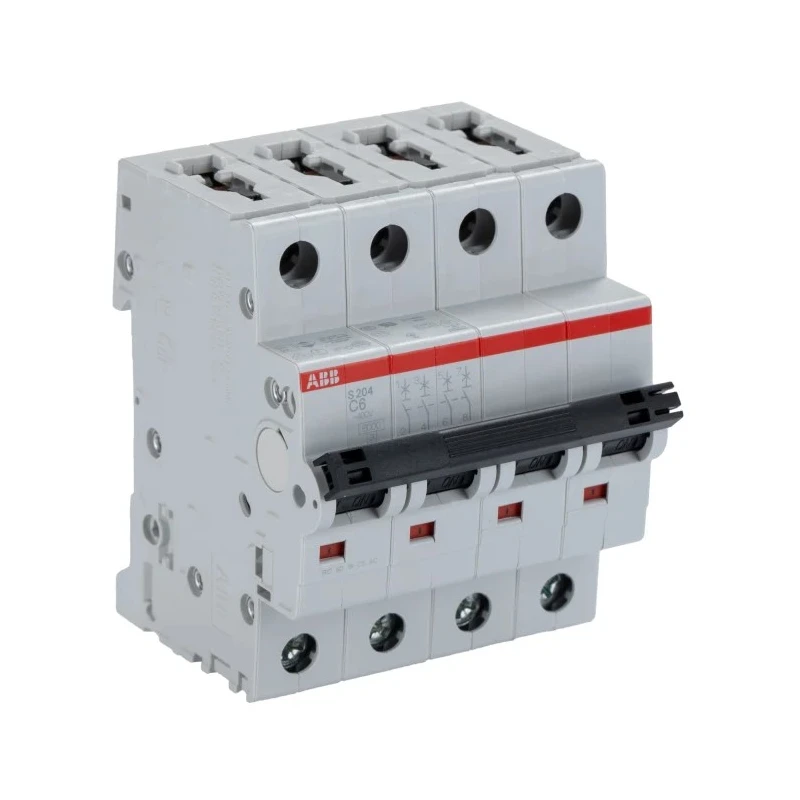

ABB System Pro M Compact S200 Miniature Circuit Breaker, 4-Pole, 6A, Type C, 400V AC, 10 kA Breaking 2CDS254001R0064 S204-C6
Specifications
| Country of Origin | Germany |
|---|---|
| Range | System Pro M Compact |
| Brand | ABB |
| Height | 69mm |
| Model | 2CDS254001R0064 S204-C6 |
| Depth | 69mm |
| IP Rating | IP20, IP40 |
| Width | 70mm |
| Mount Type | DIN Rail |
| Current Rating | 6A |
| Series | S200 |
| Terminal type | Screw |
| Breaking Capacity | 10kA |
| Number of Poles | 4 |
| Standards/Approvals | IEC/EN 60947-2, IEC/EN 60898-1 |
| Rated AC Voltage | 400V ac |
| Tripping Characteristics | Type C |
| Better World Claim | Designed for Disassembly |
| Tripping Mechanism | Electromagnetic, Thermomagnetic |
| Reset Actuator Type | Lever |
Key Features
- Features a thermal electromagnetic tripping mechanism for efficient overload protection.
- Designed for DIN rail mounting compatible with industrial applications.
- Equipped with screw terminal contacts for secure electrical connections.
- Offers IP20 and IP40 rating for durable protection in electrical environments.
- Compact dimensions with height, width, and depth of approximately 69mm, 70mm, and 69mm respectively.
- Conforms to IEC/EN 60947-2 and IEC/EN 60898-1 standards for safety and performance.
- Includes a lever reset actuator for manual reset after tripping.
- Designed with sustainability in mind, featuring a claim for designed disassembly.
Product Description
ABB 2CDS254001R0064 S204-C6 System Pro M Compact S200 Miniature Circuit Breaker is a high-performance 4-pole device rated for 6 amps with Type C tripping characteristics, supporting a maximum rated AC voltage of 400V and a breaking capacity of 10 kA. This miniature circuit breaker is engineered for reliable protection of electrical installations in commercial, industrial, and automation applications.
The breaker employs an electromagnetic and thermomagnetic tripping mechanism that safeguards circuits effectively under overload and short-circuit conditions. Its DIN rail mounting facilitates easy installation and integration into electrical panels, while screw terminal contacts guarantee secure and reliable connections.
With an IP20 and IP40 ingress protection rating, this device is suitable for various industrial and commercial environments where robust protection is needed. Compact in size, measuring approximately 69mm in height and depth and 70mm in width, it fits ergonomically within distribution boards without occupying excessive space.
Conforming to IEC and EN standards 60947-2 and 60898-1, the S200 series Miniature Circuit Breaker ensures compliance with international safety and performance requirements. Its lever reset actuator allows for simple manual reset post-trip, enhancing operational convenience.
The product supports sustainability efforts with its design for easy disassembly, aligning with environmental and resource efficiency goals. Thermal electromagnetic tripping mechanism provides dynamic overload protection.
DIN rail mountable for convenient installation in industrial and commercial panels. Screw terminal type ensures secure electrical connections. IP20 and IP40 ratings support diverse protective environments. Compact design with dimensions approximately 69mm (H) x 70mm (W) x 69mm (D).
Certified to IEC/EN 60947-2 and IEC/EN 60898-1 international standards. Lever reset actuator type for manual tripping reset. Designed for disassembly to support sustainability objectives.
This miniature circuit breaker is ideal for applications requiring reliable short-circuit and overload protection, including electrical installations in automation, industrial machinery, and commercial electrical distribution systems.
Explore more products in the Miniature Circuit Breaker category on EnvMart for comprehensive electrical protection solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This miniature circuit breaker has a current rating of 6A.
It has a breaking capacity of 10 kA.
The dimensions are approximately 69mm in height, 70mm in width, and 69mm in depth.
The rated AC voltage for this model is 400V.
It employs an electromagnetic and thermomagnetic tripping mechanism for effective overload protection.
It is designed for DIN rail mounting, facilitating easy installation in electrical panels.
It has IP20 and IP40 ratings, providing protection in various electrical environments.
It conforms to IEC/EN 60947-2 and IEC/EN 60898-1 standards for safety and performance.
It features a lever reset actuator for manual reset after tripping.
This model is a 4-pole circuit breaker.
Yes, it features a design for disassembly, supporting sustainability efforts.
It uses screw terminal contacts for secure electrical connections.
