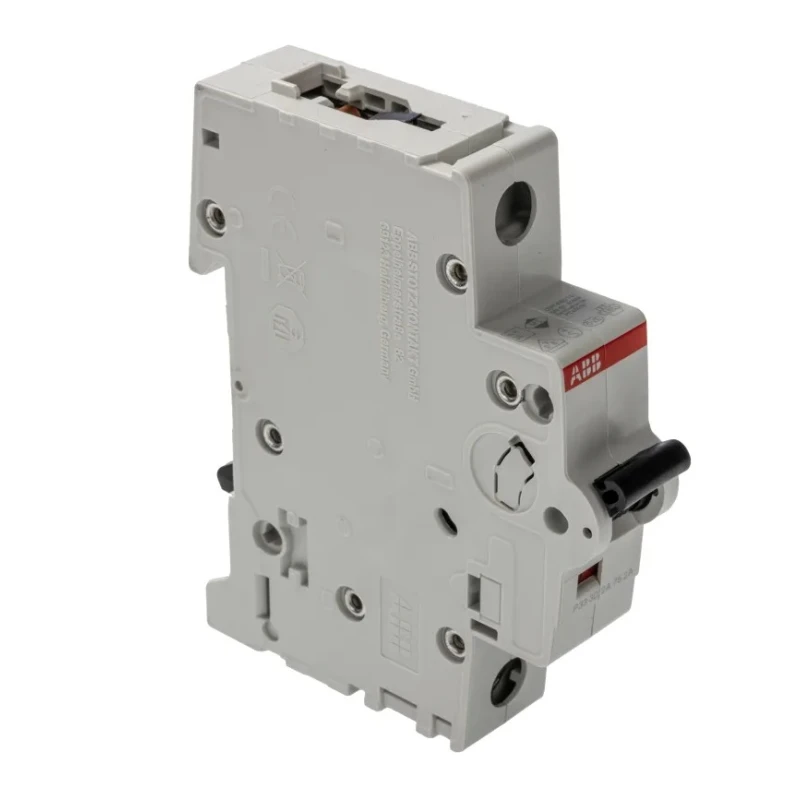

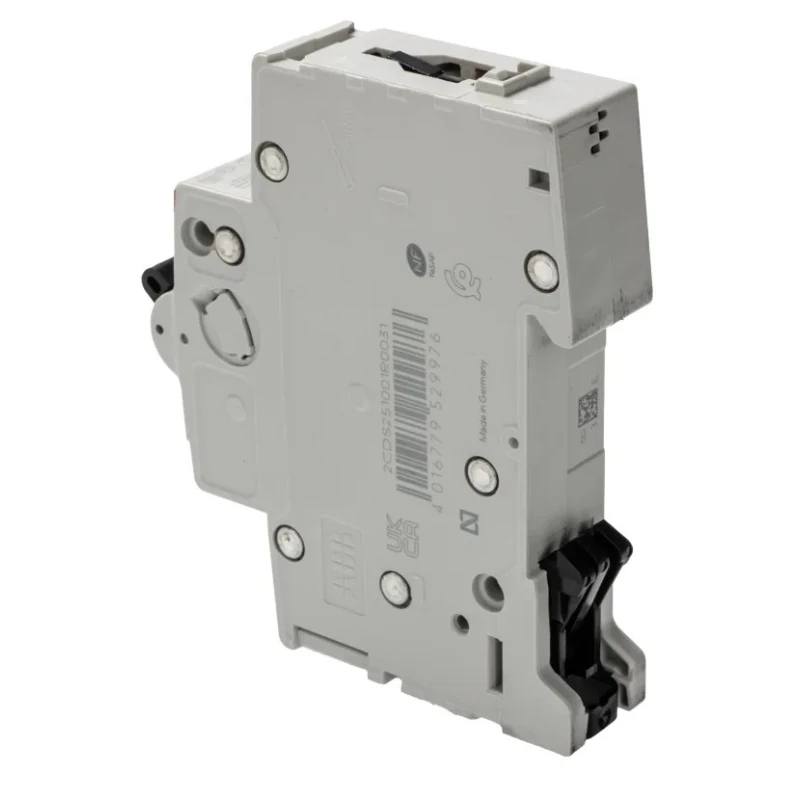

ABB System Pro M Compact S200 Miniature Circuit Breaker, 1-Pole, 8A, Type C, 230V AC, 72V DC, 10 kA 2CDS251001R0084 S201-C8

ABB 2CDS251001R0084 S201-C8 System Pro M Compact S200 Miniature Circuit Breaker is a high-performance 1-pole protective device rated at 8A with Type C tripping designed for commercial, industrial, and automation electrical systems. It offers efficient overload and short-circuit protection ensuring reliability and safety in complex electrical applications.

This Miniature Circuit Breaker supports rated voltages of 230V AC and 72V DC, making it versatile for a variety of settings requiring both AC and DC circuit interruptions. The 10 kA breaking capacity ensures high fault current interruption capability to protect sensitive components and wiring.

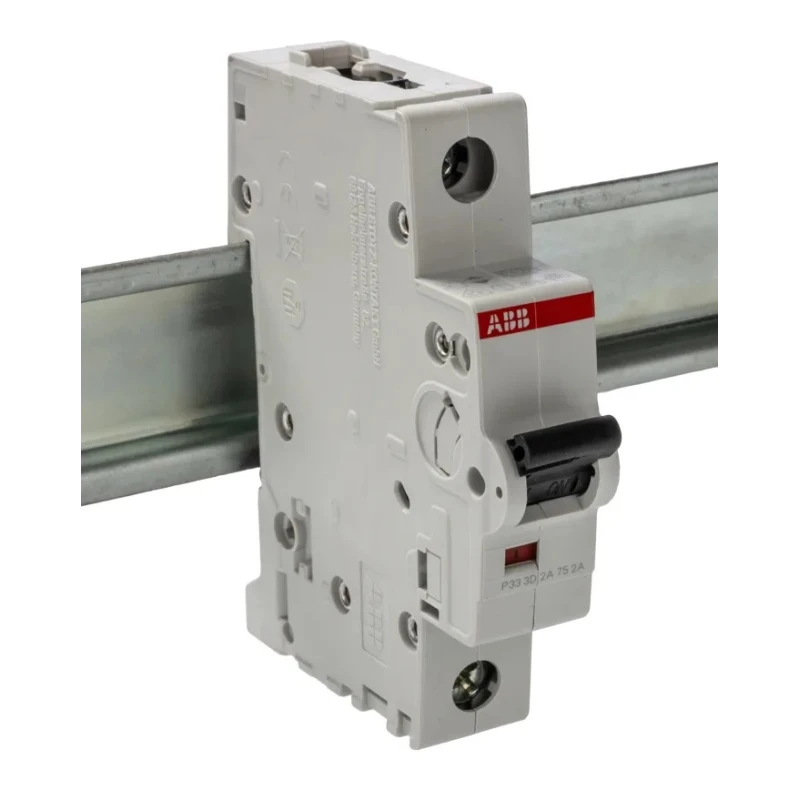

Specifically engineered for ease of installation, it mounts securely on DIN rails and comes with screw terminals for reliable electrical connections. The device incorporates electromagnetic and thermomagnetic tripping mechanisms providing precision in overload and short circuit detection. The lever reset actuator allows fast and safe resetting after a trip event without removing the device.

Designed under the System Pro M Compact series and compliant with IEC/EN 60898-1 and IEC/EN 60947-2 safety standards, it meets stringent quality and safety requirements for electrical protection devices. Its compact form factor with dimensions 69 mm height, 69 mm depth, and 17.5 mm width optimizes distribution board space while offering IP20 and IP40 degrees of protection against ingress of solid particles and accidental contact.

Applications include circuit protection in commercial electrical installations, industrial machinery safeguarding, automation control panels, and panel board circuit management. Regular visual inspection is recommended to maintain reliability and ensure dust or debris does not impair performance.

Offers a current rating of 8 amperes for diverse electrical applications. Equipped with Type C tripping characteristics suitable for high inrush currents. Operates at rated AC voltage of 230 volts and DC voltage of 72 volts for versatile use.

Designed with a breaking capacity of 10 kiloamperes to ensure effective interruption. Simple DIN rail mount installation for convenient setup in electrical panels. Includes a lever reset actuator for quick and safe manual reset after tripping.

Constructed with electromagnetic and thermomagnetic tripping mechanisms for accuracy. Complies with IEC/EN 60898-1 and IEC/EN 60947-2 standards ensuring safety and quality. Compact dimensions with 69 mm height, 69 mm depth, and 17.5 mm width optimize panel space.

Rated IP20 and IP40 for protection against solid objects and environmental impact in installations. Discover an extensive range of circuit breakers and related electrical components at EnvMart to enhance your installations with trusted quality and performance.
