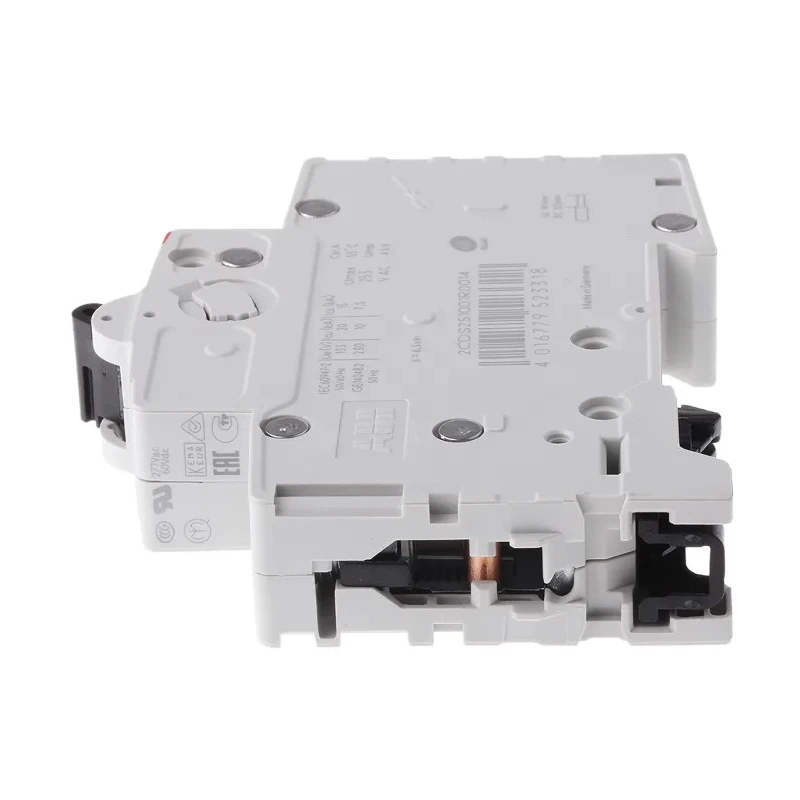

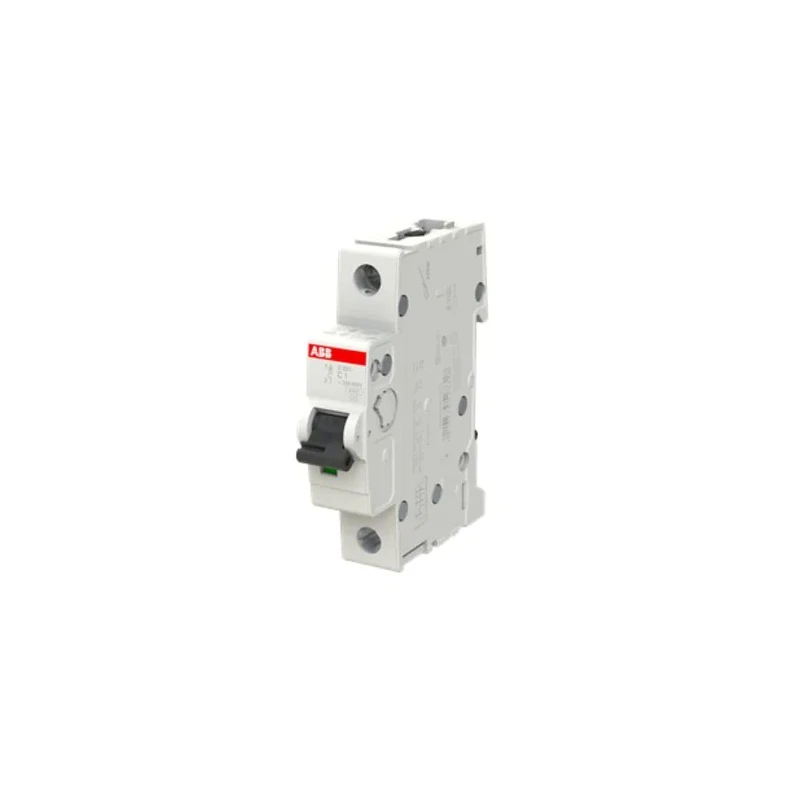

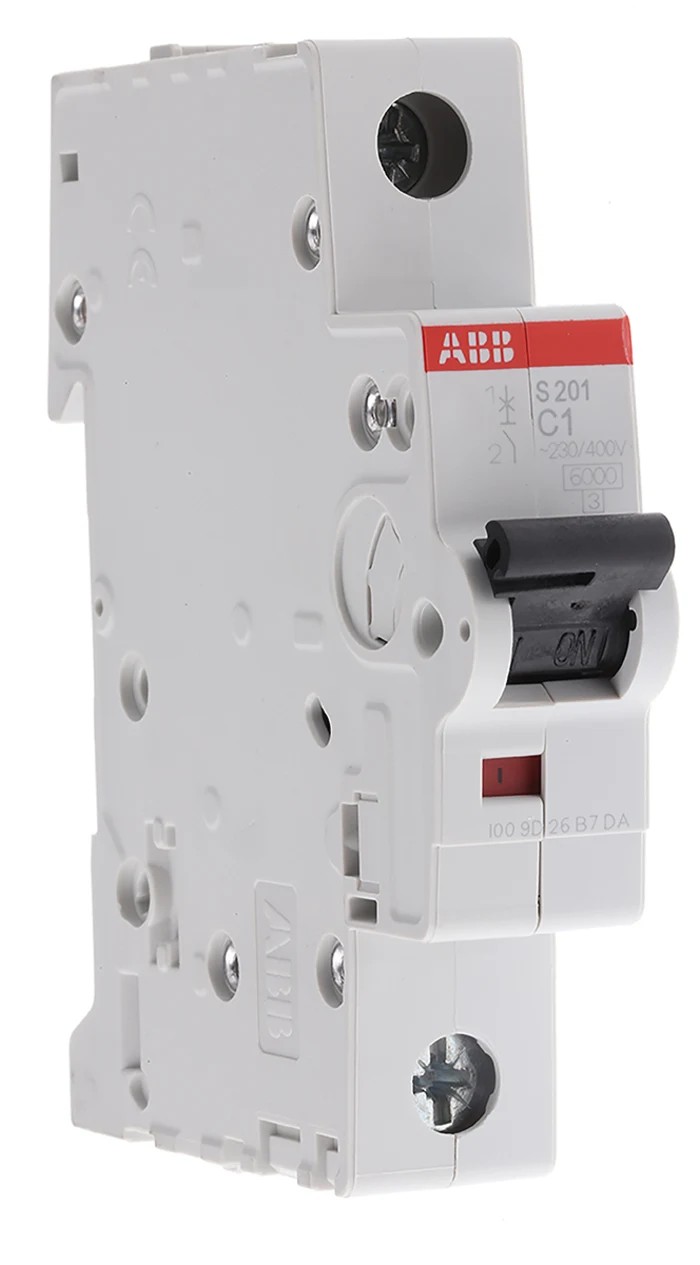

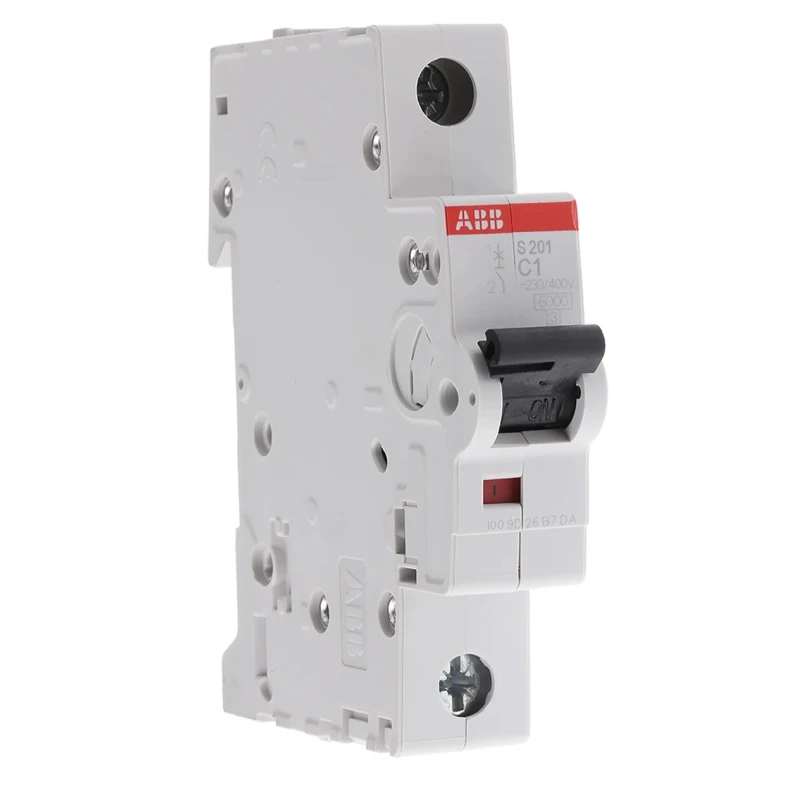

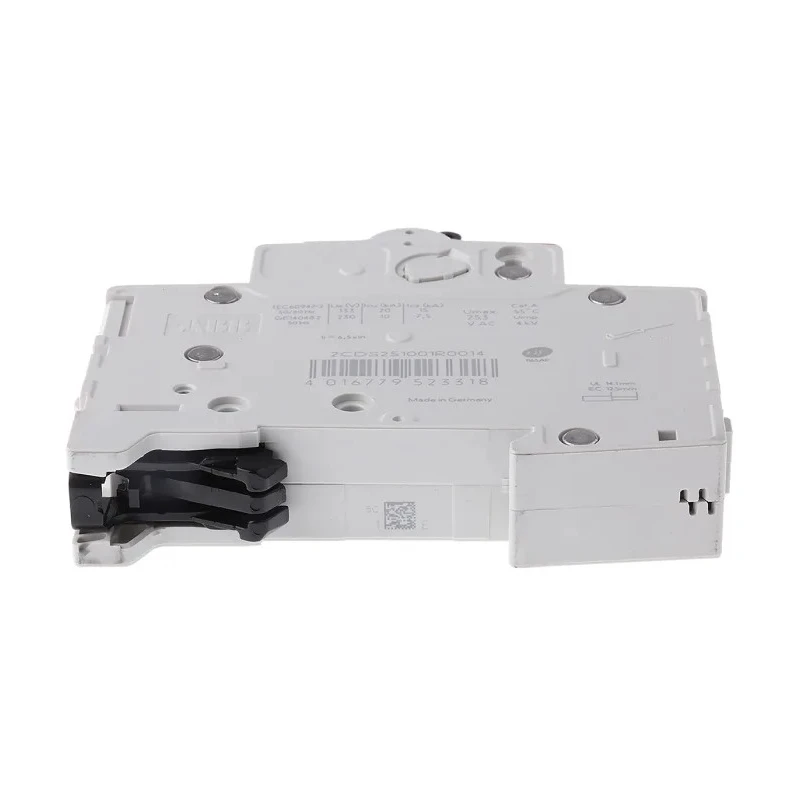

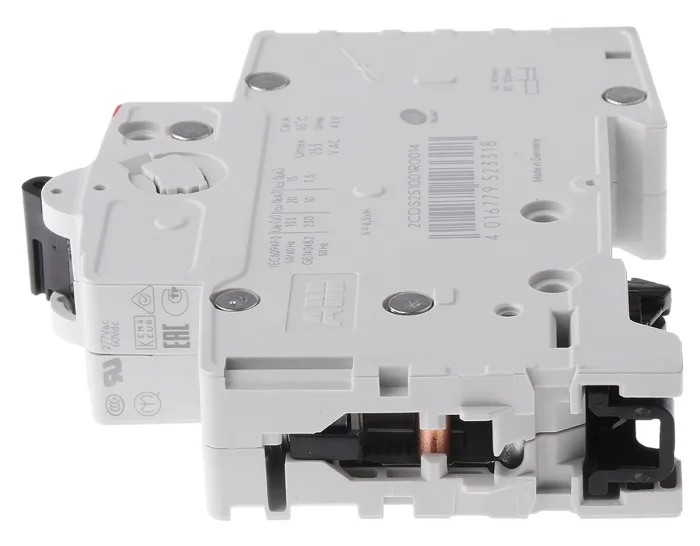

ABB System Pro M Compact S200 Miniature Circuit Breaker, 1-Pole, 1A, Type C, 230V AC, 72V DC, 6kA 2CDS251001R0014 S201-C1

ABB 2CDS251001R0014 S201-C1 System Pro M Compact S200 Miniature Circuit Breaker is designed for effective circuit protection in residential, commercial, and industrial settings operating at 230V AC and 72V DC. It features a single pole configuration with a 1 Amp current rating, Type C tripping characteristic, and a breaking capacity of 6 kA, making it suitable for protecting low-current networks against overloads and short circuits.

The breaker utilizes a delayed thermal tripping mechanism for overload defense and an electromechanical system for short circuit protection. Its compact size with a depth of 69 mm and width of 17.5 mm helps save valuable panel space. The device mounts easily on DIN rails commonly used in electrical installations.

The superior thermoplastic housing protects against impact and electrical hazards while the IP20 rating safeguards internal components from solid objects larger than 12 mm. Operating efficiently across a wide temperature range from -25°C to +55°C, it is adaptable to challenging environments.

Additional features include a front toggle switch that allows effortless manual resetting after tripping, accompanied by red and green contact position indicators for instant operational status. This miniature circuit breaker complies with IEC/EN 60898-1 and IEC/EN 60947-2 standards, ensuring reliability and safety for residential, commercial, and industrial power distribution.

Rated current of 1 Amp provides precise overload protection. Type C tripping characteristic suitable for low to medium surge currents. 6 kA breaking capacity ensures safety against high fault currents. Compact design with dimensions 69mm depth and 17.5mm width saves installation space.

Thermal and electromechanical tripping mechanisms provide dual protection. Durable thermoplastic housing offers impact resistance and insulation. DIN rail mountable for standard electrical panel compatibility. Wide operating temperature range from -25°C to +55°C for diverse environments.

IP20 rated to prevent ingress of objects larger than 12mm. Simple front toggle switch with red/green indicator for easy reset and status monitoring.

This Miniature Circuit Breaker is ideal for use in commercial buildings, warehouses, and residential wiring applications to provide efficient circuit protection. It ensures electrical safety and reduces the risk of damage caused by overloads and short circuits.
