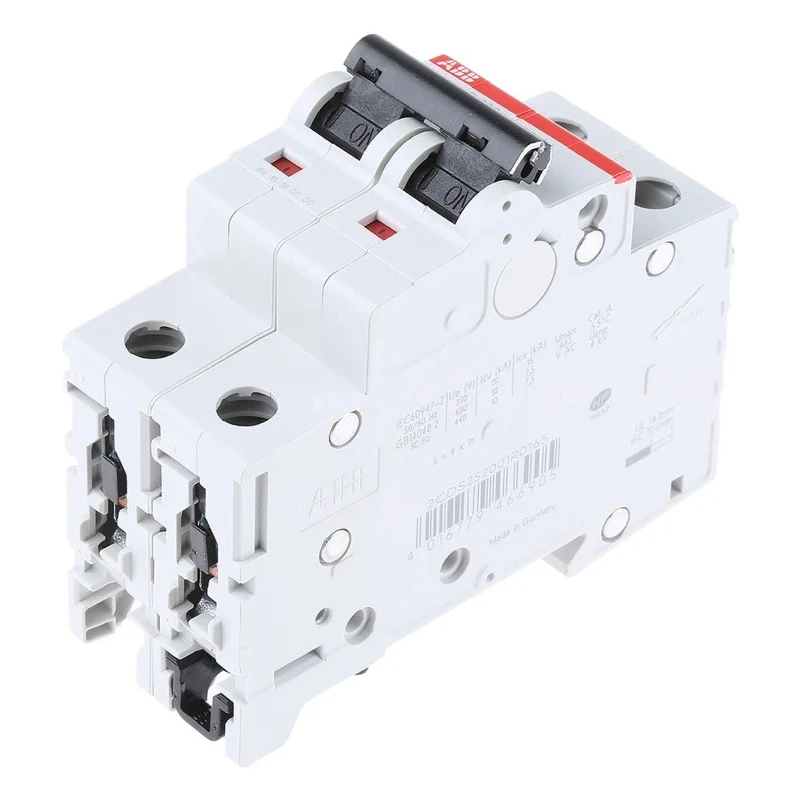

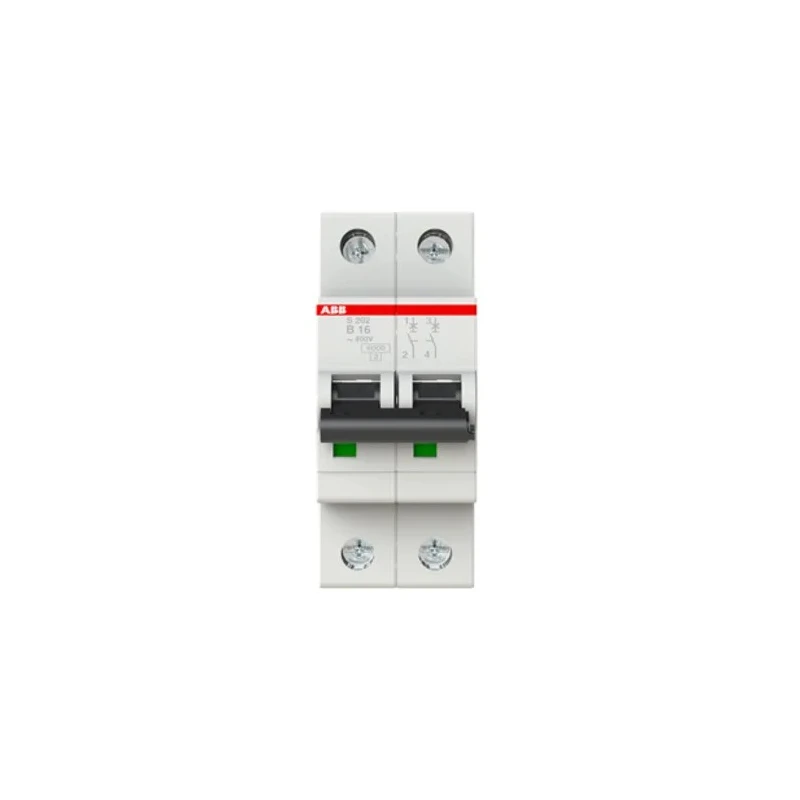

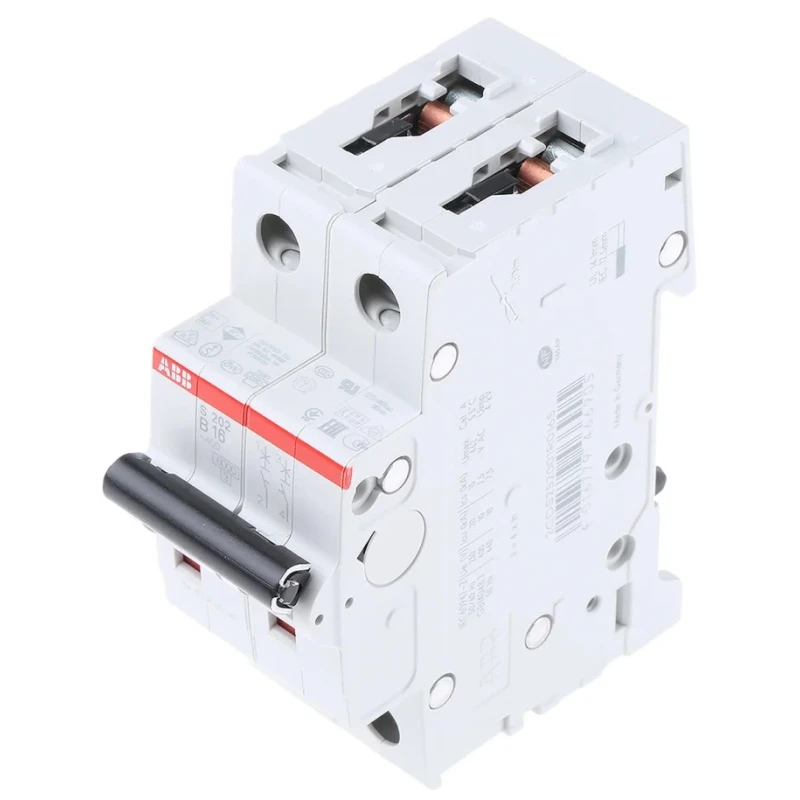

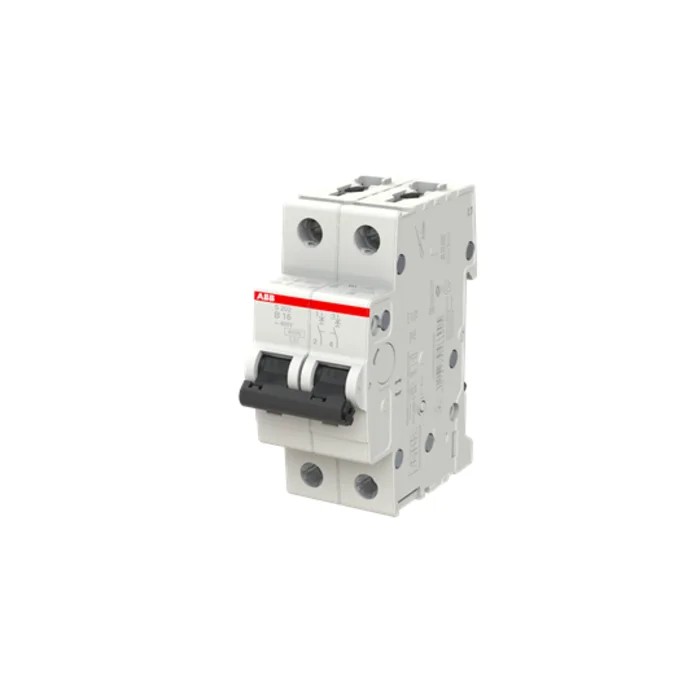

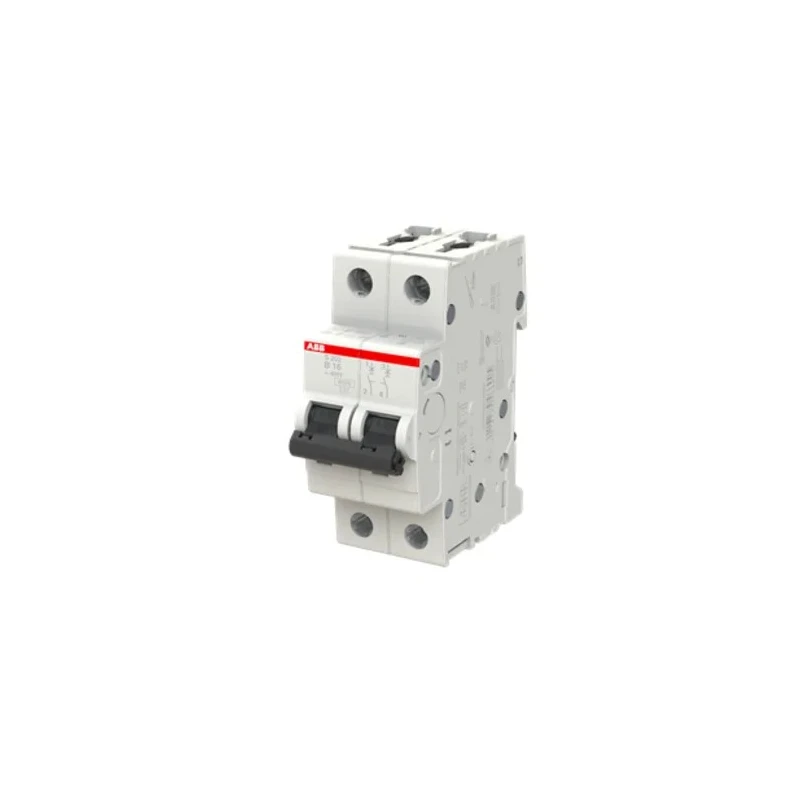

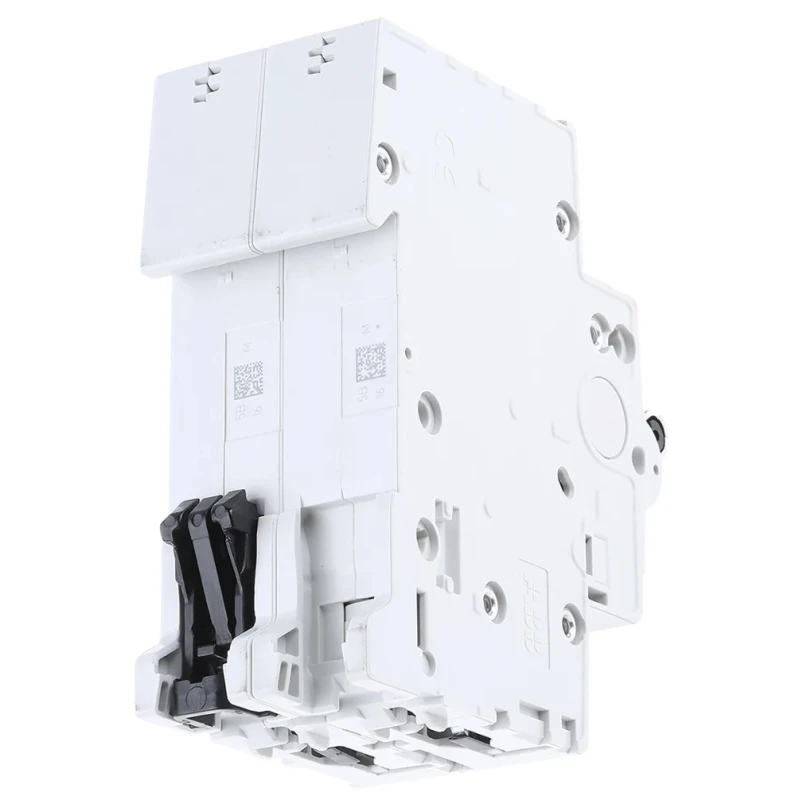

ABB System Pro M Compact S200 Miniature Circuit Breaker, 2-Pole, 16A, Type B, 400V AC, 110V DC, 6 2CDS252001R0165 S202-B16
Specifications
| Country of Origin | Germany |
|---|---|
| Range | System Pro M Compact |
| Brand | ABB |
| Model | 2CDS252001R0165 S202-B16 |
| Depth | 69mm |
| Width | 35mm |
| Mount Type | DIN Rail |
| Current Rating | 16A |
| Series | S200 |
| Terminal type | Screw |
| Breaking Capacity | 6kA |
| Number of Poles | 2 |
| Rated AC Voltage | 400V ac |
| Rated DC Voltage | 110V dc |
| Tripping Characteristics | Type B |
| Better World Claim | Designed for Disassembly |
| Tripping Mechanism | Thermal |
Key Features
- Provides thermal tripping mechanism to protect circuits against overload and short circuits.
- Suitable for AC voltage up to 400V and DC voltage up to 110V.
- Compact DIN rail mount design with screw terminals for easy installation.
- Breaking capacity of 6 kA ensures handling of sudden current surges without damage.
- Finger-safe IP20 rating protects against accidental contact with live parts.
- Designed for disassembly promoting environmental sustainability.
- Mechanical service life of 20,000 cycles ensures long-term durability.
Product Description
ABB 2CDS252001R0165 S202-B16 Miniature Circuit Breaker is a high-quality electrical protection device designed for residential, commercial, and industrial applications. This 2-pole MCB has a current rating of 16A and offers a reliable Type B tripping characteristic, providing sensitive overload and short-circuit protection for circuits and appliances.
Engineered for both AC and DC systems, it supports voltages up to 400V AC and 110V DC, making it versatile for varied electrical environments. The DIN rail mounting and screw terminal connection simplify installation while allowing flexibility for diverse wiring schemes.
With a breaking capacity of 6 kA, this S200 series MCB can safely interrupt sudden fault currents, protecting equipment and wiring from damage. The thermal tripping mechanism ensures precise and reliable operation according to load conditions. The device also features an IP20 rating for finger-safe operation and is designed for disassembly, endorsing sustainable product lifecycle management.
Compact dimensions of 69mm depth and 35mm width allow it to fit into limited space electrical panels. The MCB boasts a mechanical service life of 20,000 operations combined with a 4 kV rated impulse withstand voltage, ensuring robust performance and durability.
This circuit breaker is ideally suited for office buildings, residential wiring systems, and general electrical distribution where protection from short circuits and overloads is critical.
Thermal tripping mechanism for reliable overload and short-circuit protection. Suitable for AC 400V and DC 110V applications. 6 kA breaking capacity for high fault current interruption. Compact DIN rail mount design with screw terminals for ease of installation.
IP20 finger-safe rated for added safety in residential and commercial use. Environmentally designed for disassembly and sustainability. Mechanical service life of 20,000 cycles ensures longevity. Compact size fits well in restricted electrical enclosures.
Explore more about ABB electrical protection solutions on EnvMart for enhanced safety and efficiency.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The current rating of this miniature circuit breaker is 16A.
It has a breaking capacity of 6 kA, which allows it to safely interrupt sudden fault currents.
This model is suitable for AC voltages up to 400V and DC voltages up to 110V.
It features a compact DIN rail mount design, which simplifies installation.
It utilizes a thermal tripping mechanism for reliable overload and short-circuit protection.
The dimensions are 69mm in depth and 35mm in width, allowing it to fit into limited space electrical panels.
It has a Type B tripping characteristic, providing sensitive overload and short-circuit protection.
The mechanical service life of this circuit breaker is rated for 20,000 operations.
Yes, it is designed for disassembly, promoting environmental sustainability.
It features screw terminals for easy connection.
The country of origin for this miniature circuit breaker is Germany.
It is ideally suited for residential, commercial, and industrial applications where protection from short circuits and overloads is critical.
