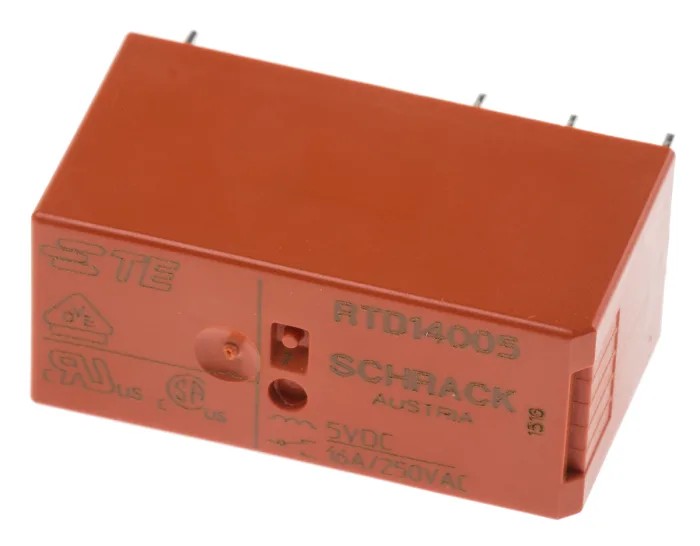

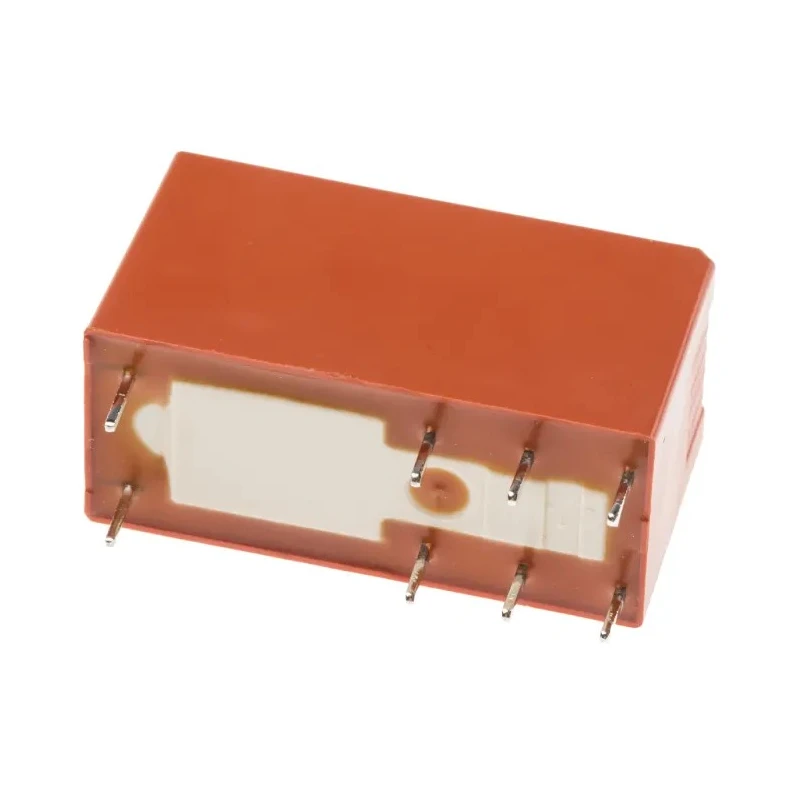

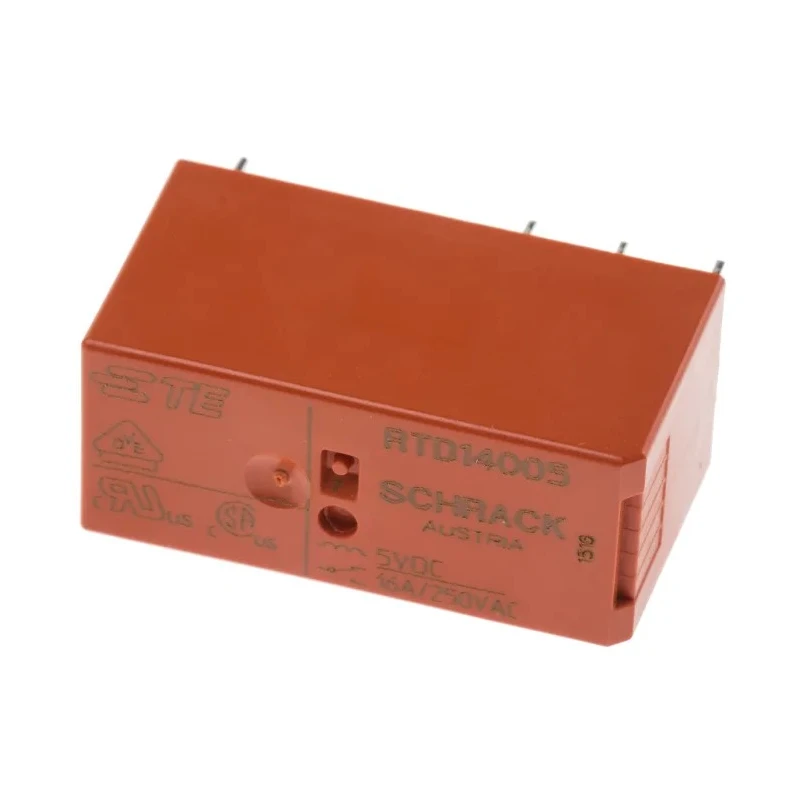

TE Connectivity PCB Power Relay 5V DC Coil, 16A Switching Current, SPDT RT1 Series 5-1393238-9
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Height | 15.7mm |
| Length | 29mm |
| Width | 12.7mm |
| Mount Type | PCB |
| Contact Material | Silver Alloy |
| Series | RT1 |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 16A |
| Terminal type | Solder |
| Standards/Approvals | RoHS |
| Coil Resistance | 62Ω |
| Coil Voltage | 5V dc |
| Switching AC Voltage | 400V ac |
| Coil Power | 400mW |
Key Features
- Designed for PCB mounting with solder terminal type for secure connections.
- Part of the RT1 series suitable for automation and interface applications.
- Operates efficiently within a temperature range of -40°C to 85°C.
- Switching AC voltage rating up to 400V AC ensuring versatile industrial use.
- Low coil power consumption of 400mW with coil resistance of 62 ohms.
- Silver alloy contacts for durable and reliable conductivity.
- Compact size with dimensions 29mm length, 15.7mm height, and 12.7mm width.
- Complies with RoHS standards supporting environmental safety regulations.
Product Description
TE Connectivity 5-1393238-9 PCB Power Relay is engineered for demanding industrial and commercial applications requiring reliable switching performance. Featuring a 5V DC coil and 16A switching current, this SPDT relay is ideal for automation control, interface circuits, security lighting, and heating systems.
This relay belongs to the RT1 series, known for its 3.5mm pinning and flux proof design, offering secure PCB mounting with solder terminals. It operates within a broad temperature range from -40°C to 85°C, making it suitable for various harsh environments.
The relay supports switching voltages up to 400V AC and incorporates silver alloy contacts to enhance conductivity and minimize wear over repeated switching cycles. Coil power consumption is efficiently low at 400mW with a coil resistance of 62 ohms, contributing to energy savings in low voltage control circuits.
The compact form factor of the relay, measuring 29mm in length, 15.7mm in height, and 12.7mm in width, allows for easy integration into compact electronic devices or PCBs without significant space requirements.
This product complies with RoHS environmental safety standards, endorsing its suitability for environmentally conscious industrial applications.
Typical industrial and commercial use cases include automation systems, interface modules, domestic control systems, security lighting circuits, and HVAC control systems in manufacturing or commercial facilities.
Designed for PCB mounting with solder terminal type for secure connections. Part of the RT1 series suitable for automation and interface applications. Operates efficiently within a temperature range of -40°C to 85°C. Switching AC voltage rating up to 400V AC ensuring versatile industrial use.
Low coil power consumption of 400mW with coil resistance of 62 ohms. Silver alloy contacts for durable and reliable conductivity. Compact size with dimensions 29mm length, 15.7mm height, and 12.7mm width. Complies with RoHS standards supporting environmental safety regulations.
Explore more Power Relays and related industrial electrical components on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum switching current for this power relay is 16A.
This model operates with a coil voltage of 5V DC.
The relay has dimensions of 29mm in length, 15.7mm in height, and 12.7mm in width.
It operates efficiently within a temperature range of -40°C to 85°C.
This relay is designed for PCB mounting with a solder terminal type for secure connections.
The relay supports switching AC voltage ratings up to 400V AC.
The coil power consumption is low at 400mW.
The contacts of this relay are made of silver alloy, enhancing conductivity and minimizing wear.
Yes, it complies with RoHS standards, supporting environmental safety regulations.
The coil resistance for this model is 62 ohms.
This relay is suitable for automation control, interface circuits, security lighting, and heating systems.
This relay belongs to the RT1 series, known for its reliable switching performance.
