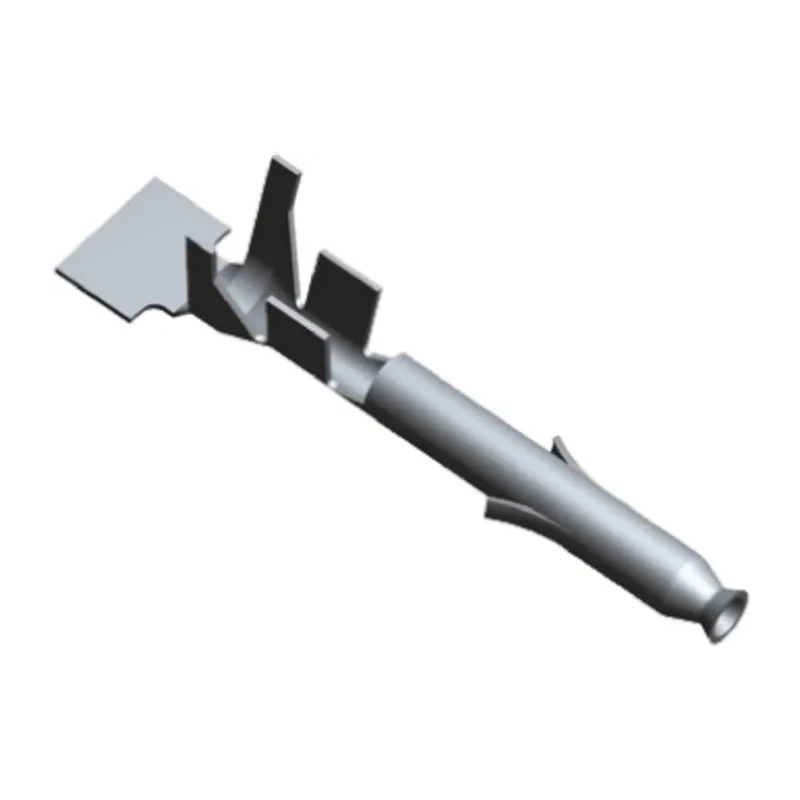

TE Connectivity Mini-Universal MATE-N-LOK Series Female Crimp Terminal 22 AWG Min Crimp 18 AWG Max 11.2A Current 1-770904-1
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Current | 11.2A |
| Gender | Female |
| Contact Material | Phosphor Bronze |
| Series | Mini-Universal MATE-N-LOK |
| Termination Type | Crimp |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| For Use With | Mini-Universal MATE-N-LOK Connector Housing |
| Contact Plating | Gold |
| Minimum Wire Size mm² | 0.3mm² |
| Maximum Wire Size mm² | 0.9mm² |
| Minimum Wire Size AWG | 22AWG |
| Maximum Wire Size AWG | 18AWG |
| Maximum Contact Resistance | 20mΩ |
Key Features
- Compatible with Mini-Universal MATE-N-LOK connector housing.
- Constructed with phosphor bronze contact material for durability.
- Gold plated contacts provide excellent conductivity and corrosion resistance.
- Supports wire sizes from 0.3 mm² (22 AWG) to 0.9 mm² (18 AWG).
- Crimp termination type ensures secure electrical connection.
- Operates reliably between -55°C and 125°C temperature range.
- Maximum contact resistance of 20 milliohms for performance efficiency.
- Female gender contact suitable for diverse electronic applications.
Product Description
TE Connectivity 1-770904-1 Mini-Universal MATE-N-LOK Series female crimp terminal is engineered for high-reliability electrical connections in electronic, industrial, and commercial applications. Rated for a current of 11.2A, this terminal supports wire sizes from 22 AWG to 18 AWG, offering versatility for various wiring requirements.
Manufactured with phosphor bronze contact material, the terminal ensures robust mechanical strength and excellent electrical conductivity. The gold plating on the contact surface enhances corrosion resistance and maintains consistent performance over time.
The crimp termination type facilitates secure and efficient installation, providing a reliable connection in demanding environments. The terminal is rated for operation in temperatures ranging from -55°C to 125°C, accommodating challenging industrial and laboratory conditions.
Designed to mate with Mini-Universal MATE-N-LOK connector housings, this female contact terminal is suitable for use in power connectors, PCB connectors, and general electronic component assemblies. It ensures minimal contact resistance, supporting effective current flow with a maximum contact resistance of 20 milliohms.
This component supports a wide range of applications across electronics manufacturing, industrial control systems, HVAC equipment, and water treatment instrumentation. Its compact design and high-quality materials contribute to enhanced system reliability and longevity.
Compatible with Mini-Universal MATE-N-LOK connector housing. Phosphor bronze contact material for durability. Gold plating for improved conductivity and corrosion resistance. Wire size range of 22 AWG to 18 AWG (0.3 mm² to 0.9 mm²).
Crimp termination for secure connections. Temperature operating range of -55°C to 125°C. Maximum contact resistance of 20 milliohms. Current rating of 11.2 amps.
Explore more high-quality Connector products from TE Connectivity and enhance your electronic assemblies with reliable and efficient MATE-N-LOK series solutions available on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This terminal is rated for a current of 11.2A, making it suitable for various wiring applications.
It supports wire sizes ranging from 22 AWG (0.3 mm²) to 18 AWG (0.9 mm²).
This terminal operates reliably within a temperature range of -55°C to 125°C.
The contacts are made from phosphor bronze, which provides mechanical strength and electrical conductivity.
It features a crimp termination type, ensuring a secure and efficient electrical connection.
The maximum contact resistance is 20 milliohms, which supports effective current flow.
This female crimp terminal is designed to be compatible with Mini-Universal MATE-N-LOK connector housings.
It is suitable for use in power connectors, PCB connectors, and general electronic component assemblies across various industries.
The contacts are gold plated, which enhances conductivity and provides corrosion resistance.
The terminal is manufactured in India.
This terminal is part of the Mini-Universal MATE-N-LOK series from TE Connectivity.
This terminal is a female gender contact, suitable for a variety of electronic applications.
