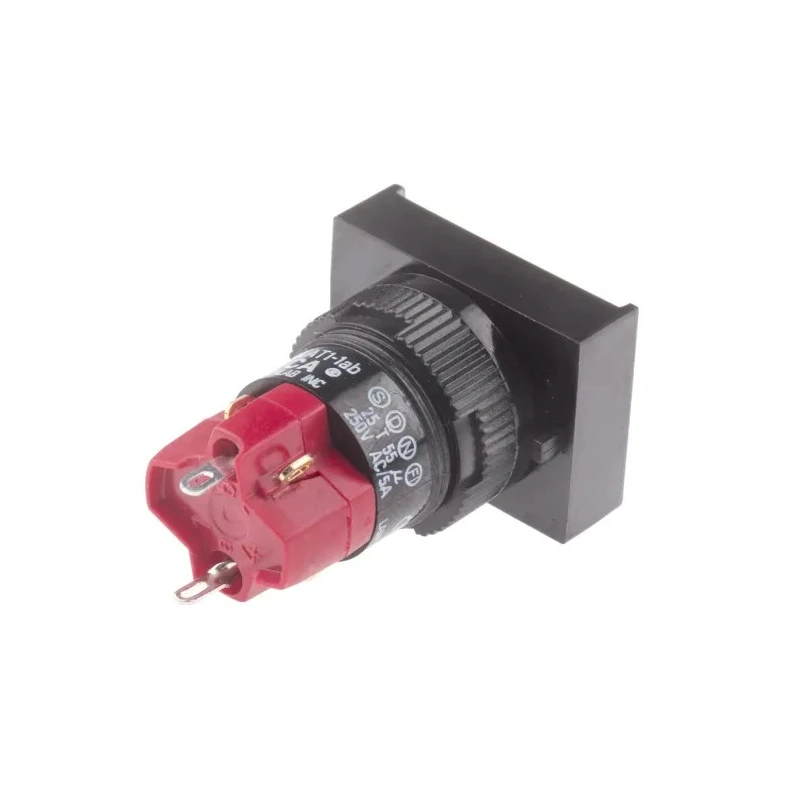

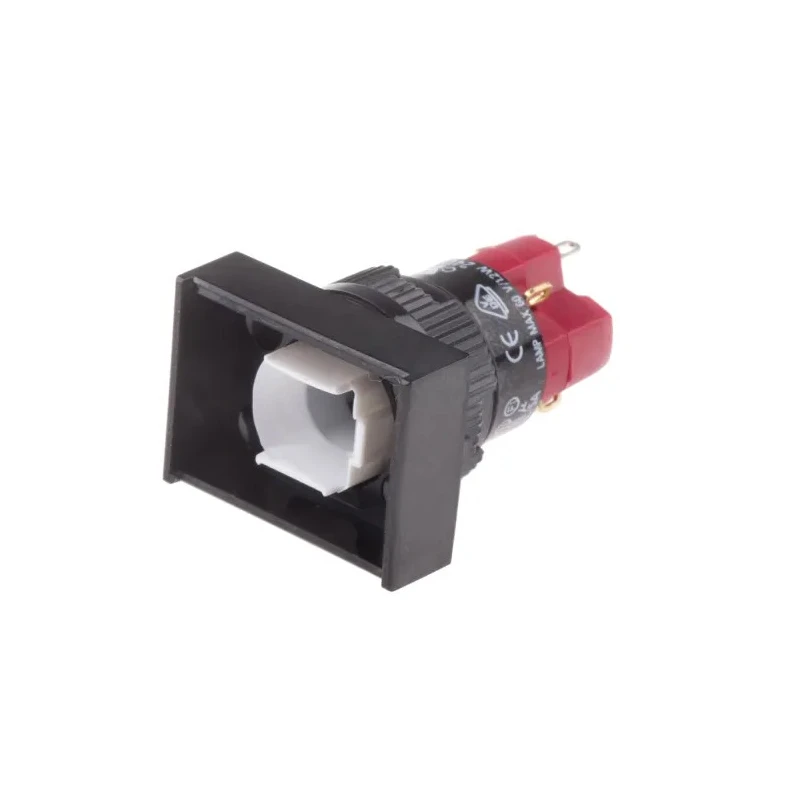

RS PRO Illuminated Push Button Switch Latching Panel Mount 16 mm Cutout SPDT 5A 250V AC 745-2565

RS PRO 745-2565 is an illuminated push button switch designed for latching operation and panel mounting with a 16 mm diameter cutout. It features a SPDT (Single Pole Double Throw) contact configuration and supports a contact current of 5A at 250V AC and DC voltages. The switch actuator has a raised button style ensuring easy operation.

This switch series, SD16, is suitable for panels with thicknesses ranging from 0.5 to 5 mm, with square and rectangular bezel options. The compact design includes an 18 mm length, 7.2 mm width, and 35.8 mm height, offering easy integration into industrial control panels and automation systems.

Illumination is provided via compatible filament lamps or white single-chip LEDs, enhancing the operator's interface in low-light conditions. Polycarbonate lenses are available in multiple colors and shapes, allowing flexible customization.

The product meets industry safety approvals including cUL and VDE, ensuring it is suitable for industrial, manufacturing, and electrical automation applications.

Installation is straightforward with solder tag terminals and a maximum behind-panel depth of 29 mm. Its robustness and certification compliance make it ideal for use in electrical control panels, machinery switches, and operator control stations.

Designed for panel mounting with a 16 mm diameter cutout. Features a latching switch operation providing alternate on/off functionality. Illuminated with compatible filament lamps or LEDs enhancing visibility. Rated for 5A switch contact current at 250V AC and DC voltages.

Durable construction suitable for industrial and automation applications. Compact size with an 18 mm length and 35.8 mm height for versatile panel integration. Solder tag terminals enable secure electrical connections. Complies with cUL and VDE safety standards ensuring quality and reliability.

Using polycarbonate lenses available in various colors for customization. Explore a wide range of Push Button Switches and electrical components at EnvMart for industrial and commercial applications.
