RS PRO Emergency Stop Push Button Panel Mount 16 mm Cutout DPDT IP65 745-2442

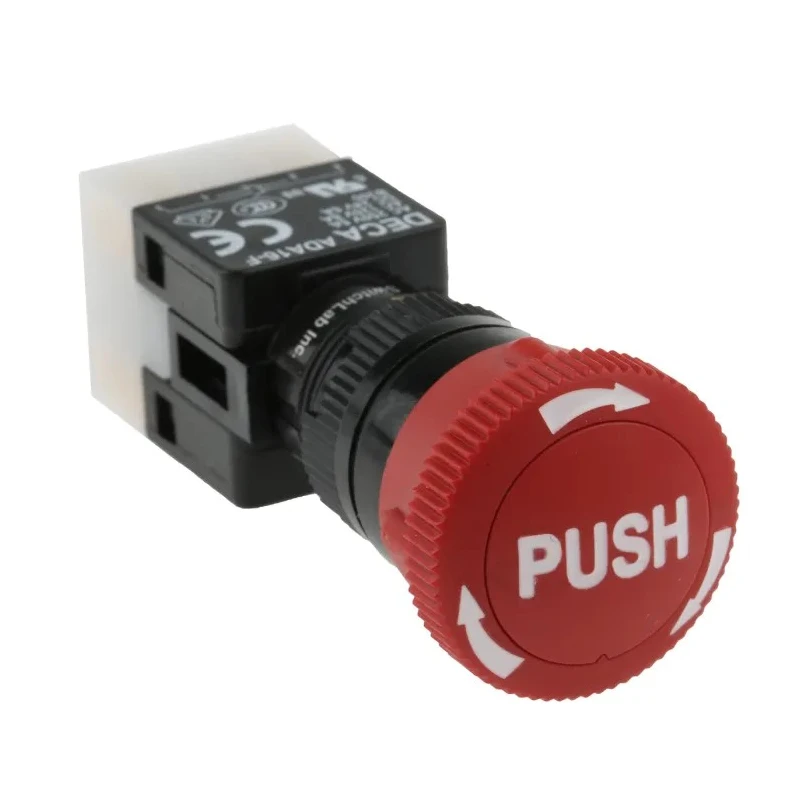

RS PRO 745-2442 Emergency Stop Push Button is a reliable panel-mounted safety switch designed for industrial and electrical automation applications. It features a red, round actuator head 24 mm in diameter that protrudes 18 mm from the panel, providing easy operation even with gloved hands. The switch fits standard 16 mm panel cutouts with thickness ranging from 0.5 to 5 mm, integrating seamlessly into control panels.

This DPDT (Double Pole Double Throw) switch is rated for 5 ampere contact current at 250 volts AC and is constructed with silver contacts providing high conductivity and durability. The switch offers waterproof sealing conforming to IP65, ensuring long-lasting performance in industrial environments exposed to dust and water spray.

The high actuation force of 2 kgf prevents accidental triggering, enhancing safety by requiring deliberate action to push and twist for reset. The mechanical endurance is rated for at least 100,000 operations while the electrical endurance is rated for 50,000 cycles, making it suitable for demanding industrial use cases.

This emergency stop switch is ideal for integration in machinery safety circuits, automation control panels, industrial manufacturing environments, and other hazard-critical areas requiring rapid manual shutdown capability. The product is manufactured in Taiwan, Province Of China, complying with RoHS standards.

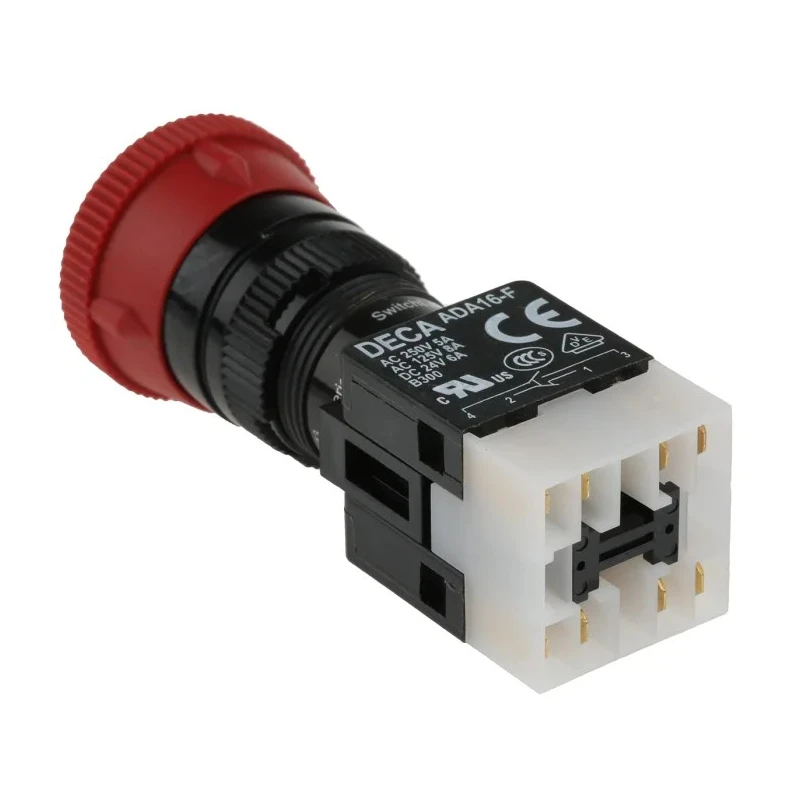

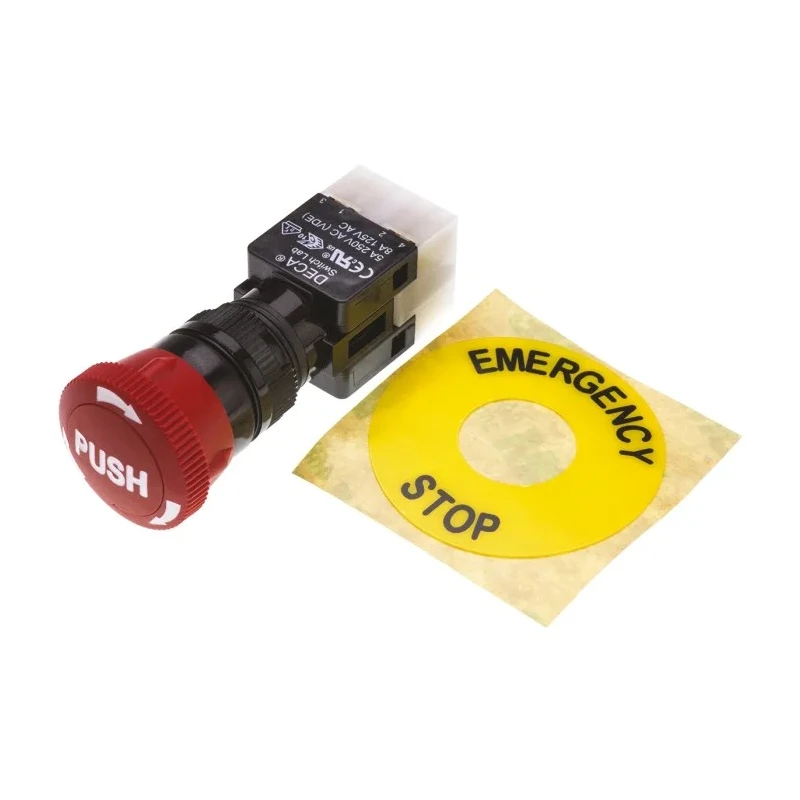

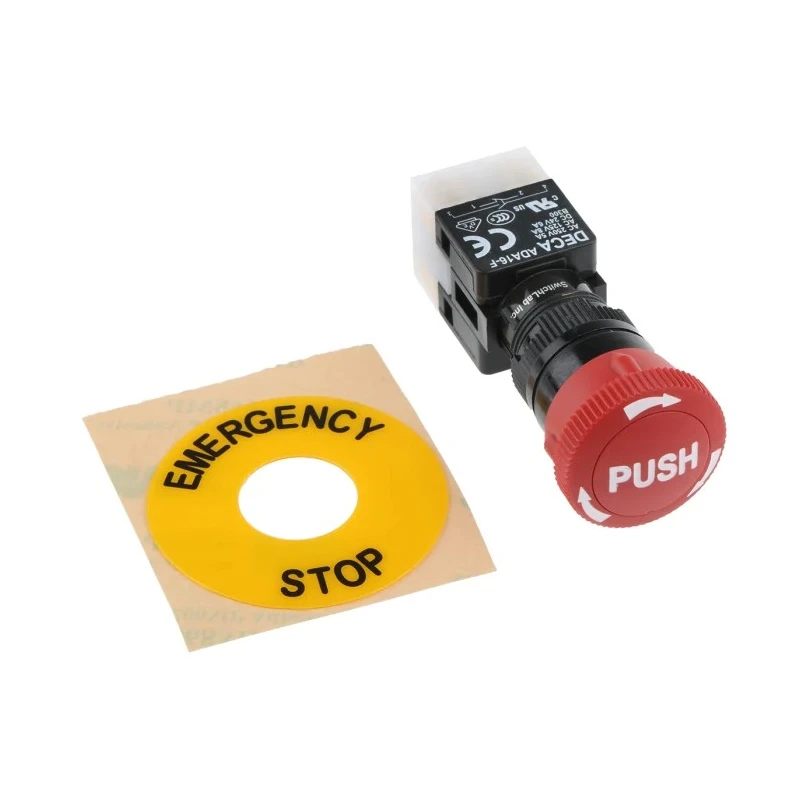

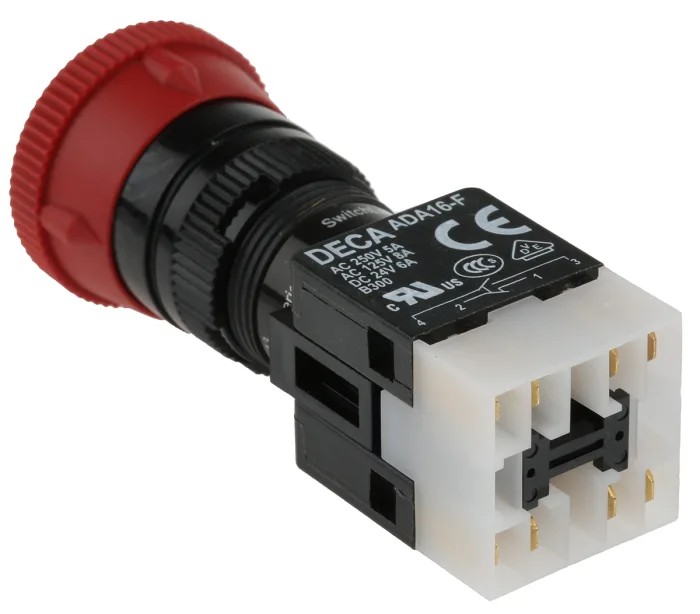

Package includes a 40 mm diameter legend plate for labeling the emergency stop function. The removable contact block with 1NO/1NC + 1NO/1NC contacts features 2.8x0.5 mm tab terminals allowing soldering or plug-in connection, facilitating quick installation and maintenance.

Use this RS PRO ADA16E series Emergency Stop Push Button for enhanced safety and compliance in industrial automation, manufacturing lines, electrical panels, and HVAC systems requiring reliable emergency shutoff.

Explore the range of RS PRO switches and components in the Electronics & Electricals category on EnvMart for compatible mounting accessories and control elements. Features a round 24 mm diameter red actuator head for easy thumb operation.

Rated for 5A contact current at 250V AC with silver contacts. Waterproof panel sealing to IP65 ensures durability in harsh environments. Panel mounting fits 16 mm cutouts with panel thickness from 0.5 to 5 mm. High actuation force of 2 kgf to prevent accidental operation and enhance safety.

Switch configuration is latching with a twist-to-reset mechanism. Mechanical lifespan of at least 100,000 operations and electrical life of 50,000 operations. Suitable for industrial, automation, electrical panel, and safety applications.
