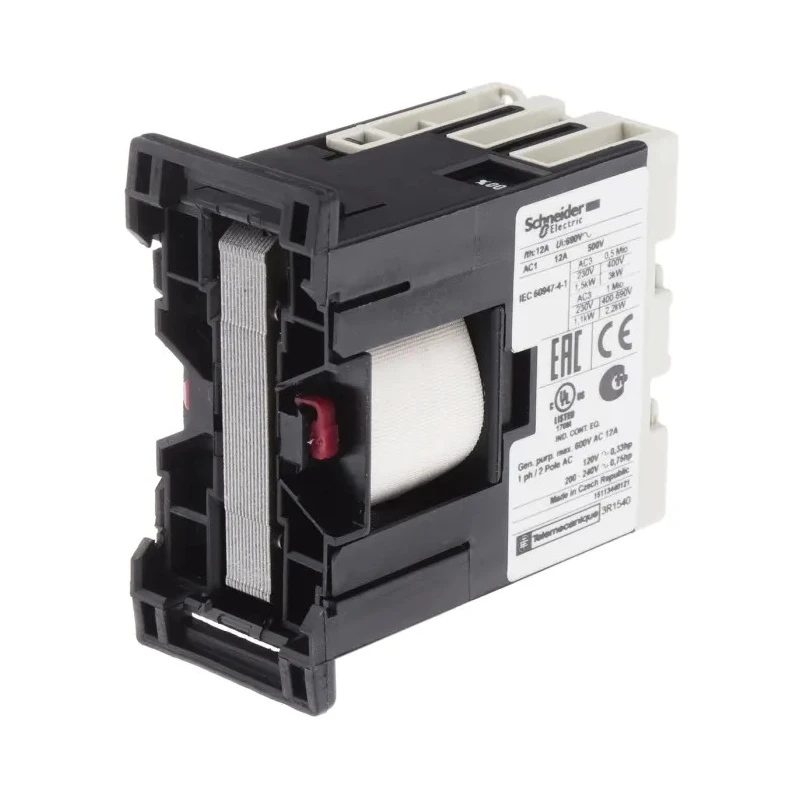

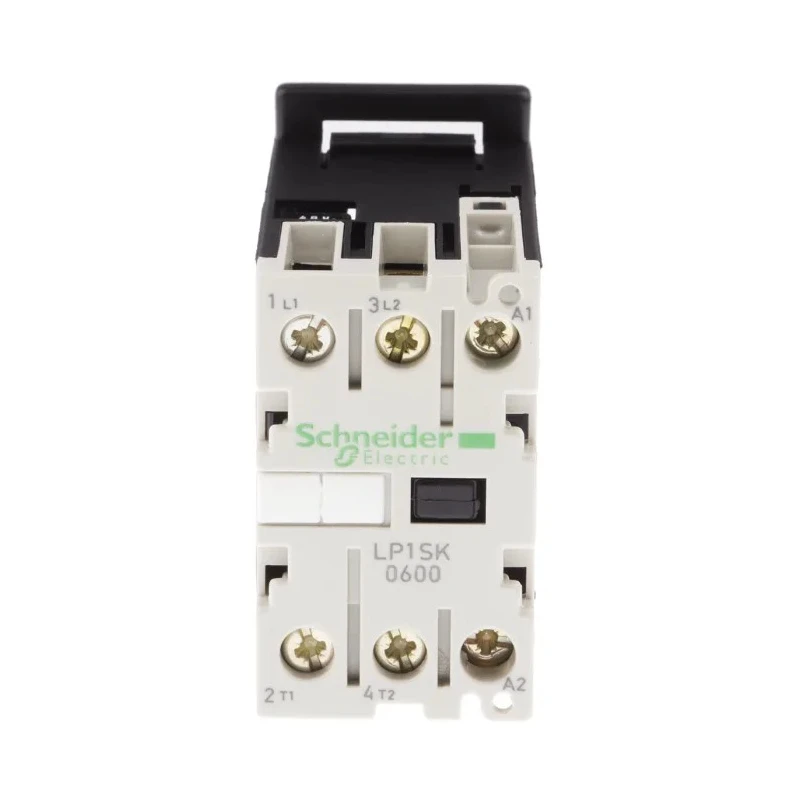

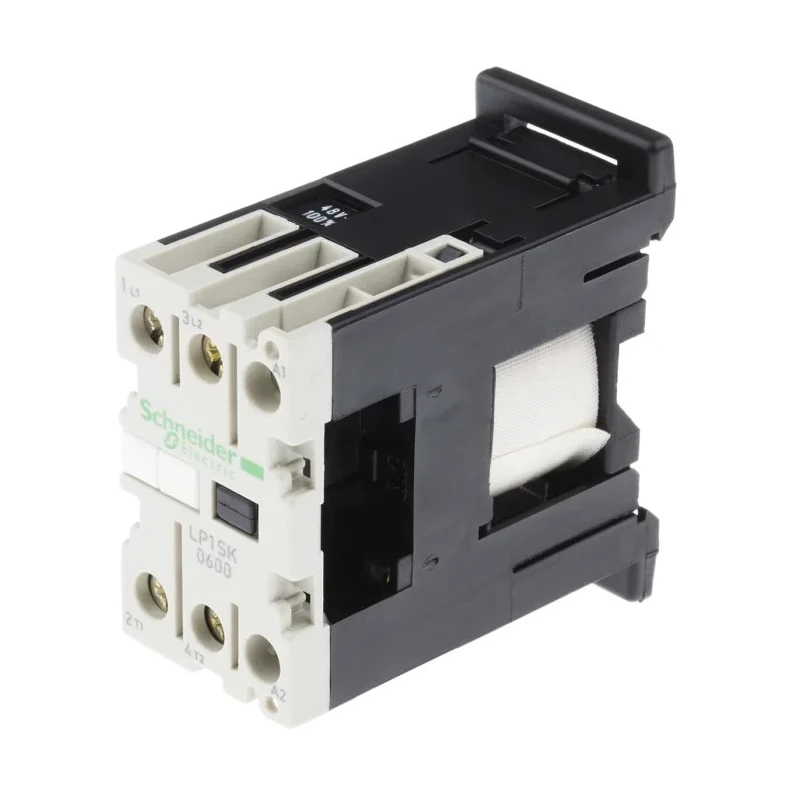

Schneider Electric LP1SK0600ED LP1S Contactor 48V DC Coil 2-Pole 12A 690V AC
Specifications
| Country of Origin | India |
|---|---|
| Brand | Schneider Electric |
| Function | Motor Control, Resistive Load |
| Length | 56mm |
| Model | LP1SK0600ED |
| Depth | 55.5mm |
| Width | 27mm |
| Mount Type | DIN Rail |
| Series | LP1S |
| Maximum Operating Temperature | 50°C |
| Minimum Operating Temperature | -20°C |
| Terminal type | Screw |
| Number of Poles | 2 |
| Standards/Approvals | CSA, UL |
| Contact Voltage | 690V ac |
| Coil Voltage | 48V dc |
| Normal State Configuration | 2 NO |
| Better World Claim | Designed for Disassembly |
| Contact Current | 12A |
| Number of Auxiliary Contacts | 1 |
| Auxiliary Contact Configuration | 1 NO |
| Operational Current Ie | 12A |
| Control Circuit Voltage Uc | 48V dc |
| Contactor Application | Resistive Load |
| Pole and Throw Configuration | 2 |
| Screw connections | IP20 finger-safe terminals with both North American and International terminal markings |
Key Features
- Equipped with a coil voltage of 48V DC for efficient electromagnetic operation.
- Includes two poles and two normally open contacts for reliable switching.
- Constructed for DIN Rail mounting with IP20 finger-safe screw terminals.
- Designed for industrial control systems requiring high fault short circuit current ratings.
- Operates effectively in temperatures ranging from -20°C to 50°C.
- Incorporates a built-in auxiliary contact configured as 1 NO for additional switching.
- Complies with CSA and UL standards for safety and reliability.
- Compact form factor with dimensions of 56mm length, 27mm width, and 55.5mm depth.
Product Description
Schneider Electric LP1SK0600ED LP1S Contactor features a 48V DC coil with 2 poles and a rated contact current of 12A at 690V AC, designed for motor control and resistive load switching in industrial and commercial automation.
This contactor operates reliably with a control circuit voltage of 48V DC and is suitable for use in demanding environments with operating temperatures from -20°C to 50°C.
The device includes one normally open auxiliary contact and screw terminals with IP20 finger-safe protection, marked for both North American and International standards to ensure safe and secure connections.
The compact design (56mm length, 27mm width, 55.5mm depth) allows mounting on DIN rails or by screws on panels, providing flexibility in equipment installation.
Schneider Electric's TeSys SK Miniature contactors offer long mechanical and electrical life, high fault short circuit current ratings, and compliance with IEC947, VDE0110, NFC63-110 standards along with CSA and UL approvals, ensuring global safety and performance recognition.
Applications include industrial control systems, powering control and signaling switches, relay coil switching, and motor starting with utilization categories AC1 (resistive load) and AC3 (squirrel cage motors) environments.
Coil voltage of 48V DC ensures effective electromagnetic operation. Two poles with double breaking linear translation movement provide enhanced switching reliability. DIN Rail and screw mounting options suit various control panel configurations.
Built-in auxiliary contact expands switching capabilities for complex circuits. IEC and UL approvals assure compliance with global industry standards. Compact size minimizes panel space requirements. Designed for resistive load and motor control applications.
IP20 finger-safe terminals promote operator safety. Suitable for industrial automation, HVAC, manufacturing, and power distribution systems. Coil includes integrated rectifier for ease of installation and operation. For exploring more Schneider Electric contactors and automation control gear, please browse the EnvMart Electronics & Electricals category.
Explore more products in our Contactors & Auxiliary Contacts category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The LP1SK0600ED contactor has a coil voltage of 48V DC, designed for efficient electromagnetic operation.
This model has a rated contact current of 12A at a contact voltage of 690V AC.
The dimensions of this contactor are 56mm in length, 27mm in width, and 55.5mm in depth.
The LP1SK0600ED contactor features 2 poles with a normal state configuration of 2 normally open contacts.
It operates effectively in temperatures ranging from -20°C to 50°C.
This contactor is constructed for DIN Rail mounting and can also be mounted using screws on panels.
The LP1SK0600ED includes one normally open auxiliary contact, expanding its switching capabilities.
It complies with CSA and UL standards, ensuring safety and reliability in its applications.
This model is designed for motor control and resistive load switching in industrial and commercial automation.
It features screw terminals with IP20 finger-safe protection, marked for both North American and International standards.
The primary function of this contactor is for motor control and switching of resistive loads in industrial applications.
The coil includes an integrated rectifier, facilitating ease of installation and operation.
