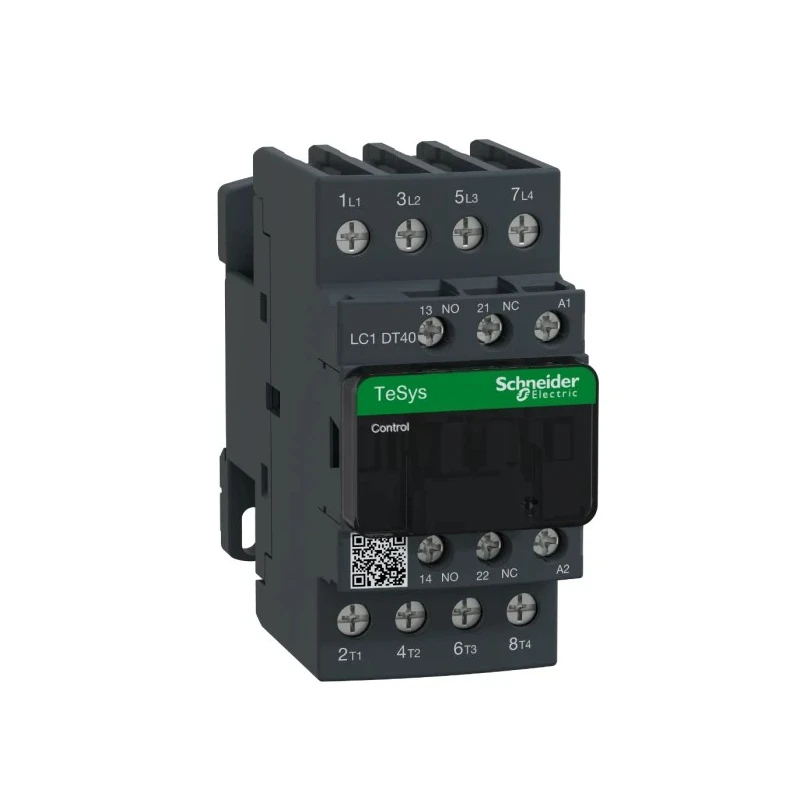

Schneider Electric TeSys D Contactor 4 Poles 40A Resistive Load 230V AC Coil LC1DT40U7
Specifications
| Country of Origin | India |
|---|---|
| Brand | Schneider Electric |
| Function | Motor Control, Resistive Load |
| Length | 91mm |
| Model | LC1DT40U7 |
| Depth | 99mm |
| Width | 45mm |
| Mount Type | DIN Rail |
| Series | LC1D |
| Maximum Operating Temperature | 60°C |
| Minimum Operating Temperature | -40°C |
| Terminal type | Screw |
| Number of Poles | 4 |
| Standards/Approvals | CSA, UL |
| Contact Voltage | 690V ac/dc |
| Coil Voltage | 230V ac |
| Normal State Configuration | 4 NO |
| Better World Claim | Designed for Disassembly |
| Contact Current | 40A |
| Number of Auxiliary Contacts | 2 |
| Auxiliary Contact Configuration | 1 NO |
| Operational Current Ie | 40A |
| Control Circuit Voltage Uc | 240V |
| Contactor Application | Resistive Load |
| Pole and Throw Configuration | 4 |
| Screw connections | IP20 finger-safe terminals with both North American and International terminal markings |
| AC-1 | This applies to all AC devices with a power factor of at least 0.95. Example of use: resistive load, heating, distribution |
| AC-3 | This applies to squirrel cage motors where breaking occurs while the motor is running. Example of use: all squirrel cage motors, lifts, escalators, conveyors, bucket elevators, compressors, pumps, mixers, air conditioning units |
Key Features
- Rated for 40A resistive load at 240V with 4 normally open contacts.
- Operates with a 230V AC coil at 50/60Hz frequency.
- Equipped with 1 normally open and 1 normally closed auxiliary contact.
- Compact 45mm width DIN rail mountable with screw clamp terminals for secure connections.
- Constructed for environments up to 60°C with high mechanical and electrical durability.
- Certified to multiple standards including IEC, UL, CSA, CCC, EAC, and Marine norms.
- Designed for applications requiring up to 3600 operations per hour.
- IP20 finger-safe terminals suitable for both North American and international terminal markings.
Product Description
Schneider Electric LC1DT40U7 TeSys D contactor is a highly reliable electrical automation device designed for motor control and resistive load applications. It features a 230V AC coil with 4 poles (4 NO) and is rated for a contact current of 40A at 240V. The contactor is built to withstand industrial environments with an operational temperature range from -40°C to 60°C and is suitable for switching resistive loads and creating motor starters.
This compact contactor has a narrow 45mm width and mounts easily on DIN rails or via screw fixing, making it ideal for space-constrained control panels. Screw clamp terminals ensure secure wiring for both power and auxiliary circuits. The device incorporates one normally open and one normally closed auxiliary contact, with the NC contact mirror certified for additional compliance and safety.
Designed to achieve operational rates of up to 3600 cycles per hour, this contactor delivers long mechanical and electrical life. It meets several international standards including IEC, UL, CSA, CCC, EAC, and Marine certifications, ensuring global application versatility and adherence to safety protocols. The product is RoHS and REACh compliant, meeting environmentally responsible manufacturing guidelines as a Green Premium product.
The Schneider Electric TeSys D contactor supports a range of industrial and commercial automation tasks, including motor starters for various machinery such as pumps, compressors, conveyors, and HVAC systems. Its IP20 finger-safe terminals have markings compatible with North American and international standards, facilitating installation and maintenance in diverse settings.
Typically used for resistive loads and motor control in industrial automation. High resistance to shock and vibration ensures durability in harsh conditions. Flexible control circuit options enhance adaptability to different application needs.
Compact design optimizes panel space without compromising performance. Extensive line of accessories available to meet specific installation requirements. Set contains: 1 Pc Schneider Electric TeSys D LC1DT40U7 Contactor 4 Poles 40A 230V AC Coil.
Explore more Schneider Electric products and reliable Contactors on EnvMart for your automation and control gear solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model is rated for a contact current of 40A at 240V for resistive loads.
The LC1DT40U7 operates with a coil voltage of 230V AC.
The contactor has a width of 45mm, a length of 91mm, and a depth of 99mm.
It can operate at a maximum temperature of 60°C.
This contactor features 4 poles, configured as 4 normally open contacts.
It is designed for DIN rail mounting, making it suitable for compact installations.
This model includes 2 auxiliary contacts, with 1 normally open and 1 normally closed configuration.
It is certified to multiple standards including CSA and UL, ensuring compliance for various applications.
This contactor is designed to achieve operational rates of up to 3600 operations per hour.
It features IP20 finger-safe terminals with screw connections, compatible with both North American and international markings.
It is suitable for motor control and resistive load applications, including pumps, compressors, and HVAC systems.
The minimum operating temperature for the LC1DT40U7 is -40°C.
