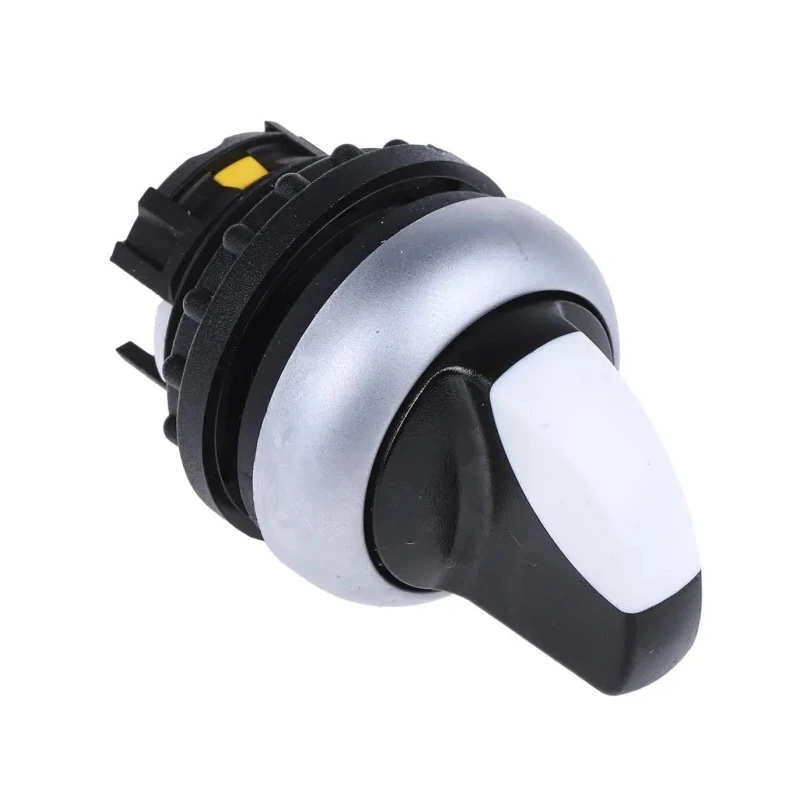

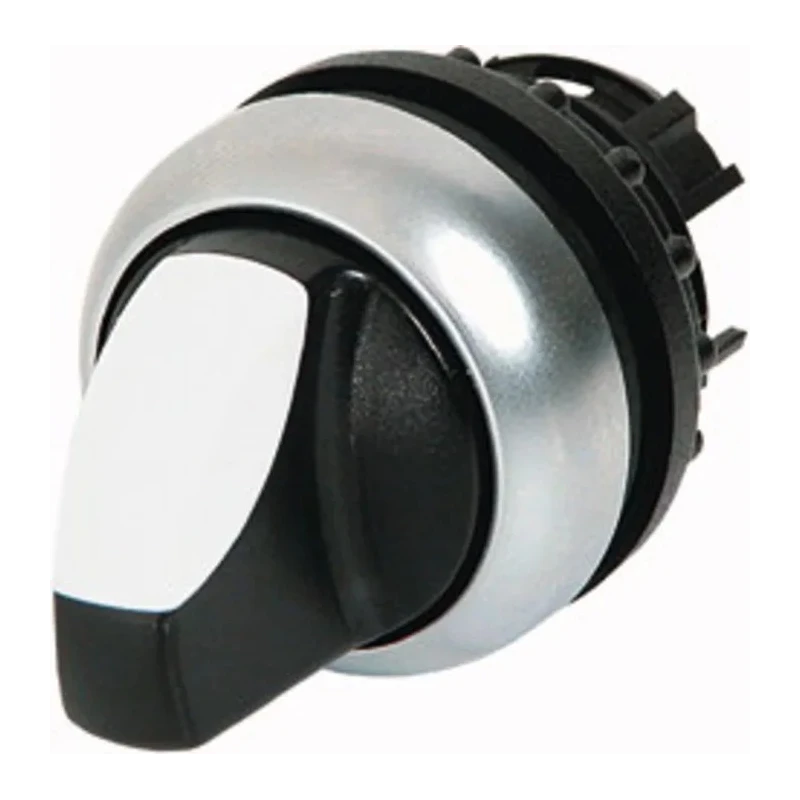

RS PRO RMQ-Titan Series 3 Position Selector Switch Head 22.5 mm Cutout IP66 216870 M22-WK3

The Eaton 216870 M22-WK3 RMQ-Titan Series 3 Position Selector Switch Head is a robust manual actuator designed for precise and reliable control in electrical and automation applications. Featuring a 22.5 mm cutout size, this selector switch head is suitable for panel mounting with a titanium bezel that provides excellent resistance to corrosion and harsh environmental conditions.

This selector switch operates with a spring return mechanism, allowing momentary actuation that returns automatically to the default position upon release, making it ideal for temporary function selection such as controlling lighting in restrooms or corridors.

The front elements have an IP66 ingress protection rating, ensuring protection against dust ingress and powerful water jets, which makes it suitable for demanding industrial environments including those exposed to humidity and cleaning processes.

With a mechanical life rated for one million operations and an operating temperature range from -25°C to +70°C, this switch delivers long-lasting performance and reliability. The product includes a fixing adaptor compatible with contact clocks and LED indicators for enhanced functionality and easy installation.

Certified to international standards including CE, IEC/EN 60947-5, RoHS, CSA-C22.2, and UL 508, the Eaton RMQ-Titan Series Selector Switch Heads meet stringent quality and safety requirements essential for industrial manufacturing, automation, water treatment, and commercial electrical projects.

Three-position spring return selector switch for momentary operation. 22.5 mm standard fixing aperture suitable for panel installation. Titanium bezel ensures corrosion resistance in humid environments. Front elements rated IP66, protecting internal wiring against dust and high-pressure water jets.

Mechanical lifespan rated for 1,000,000 operations. Operates safely within -25°C to +70°C temperature range. Includes fixing adaptor compatible with contact clocks and LEDs. Ideal for control of lighting and automation in industrial and commercial settings.

Complies with CE, IEC/EN 60947-5, RoHS, CSA, and UL standards. Offers 40° angle of throw for precise switching action.

This selector switch head is well suited for use in industrial automation systems, control panels, and environments where manual intervention is required to operate electrical equipment safely and efficiently. It is recommended for applications including manufacturing, buildings automation, water treatment plants, and other commercial or industrial facilities.
