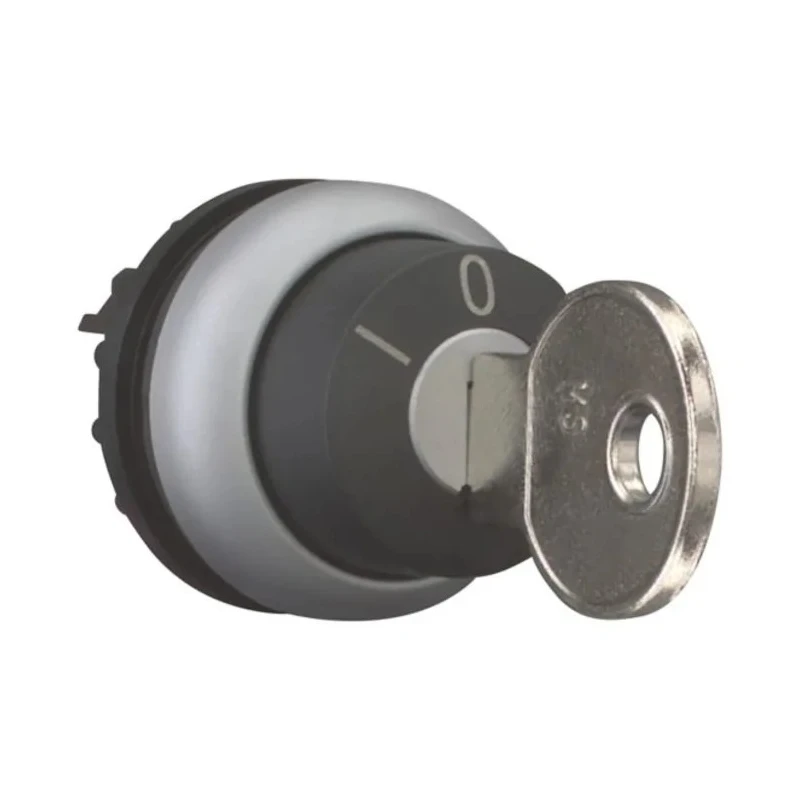

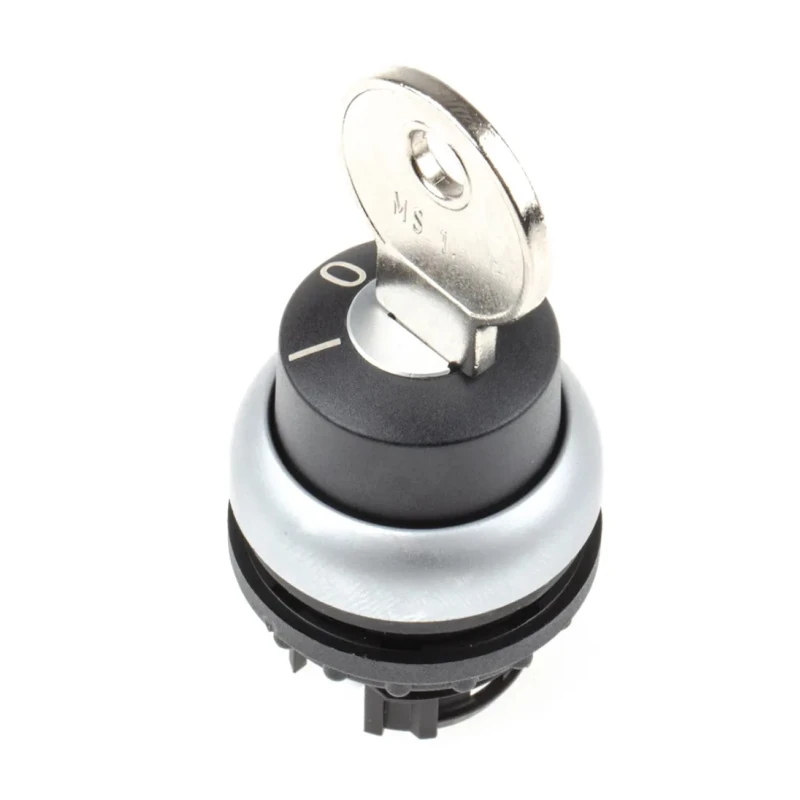

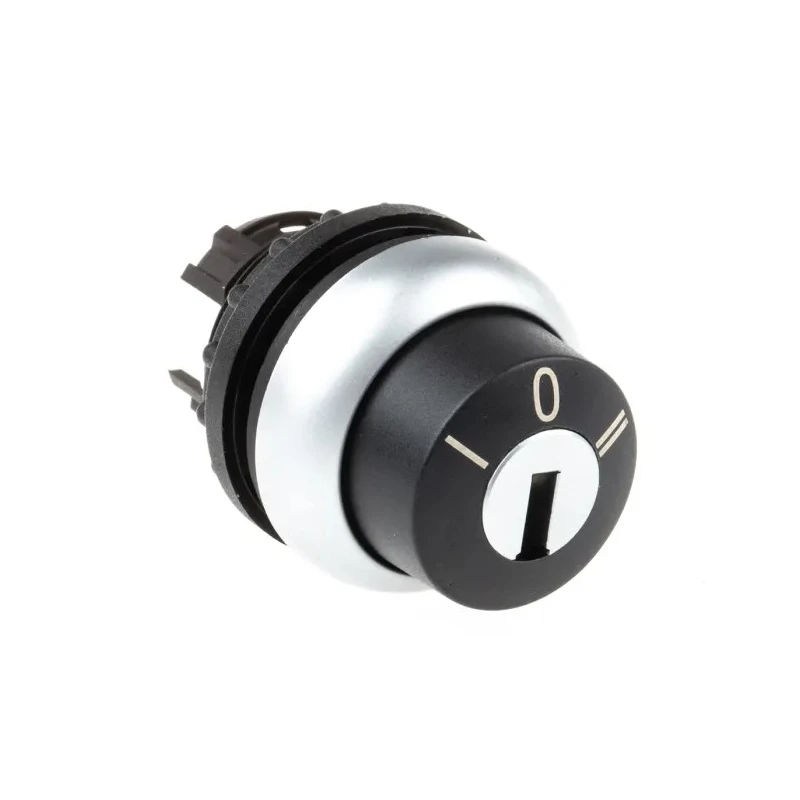

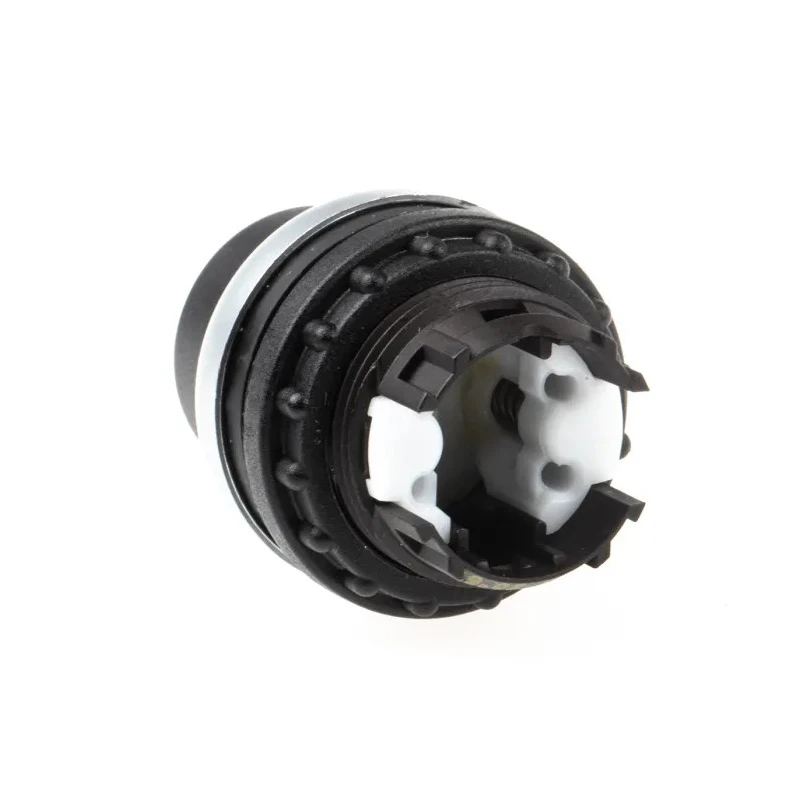

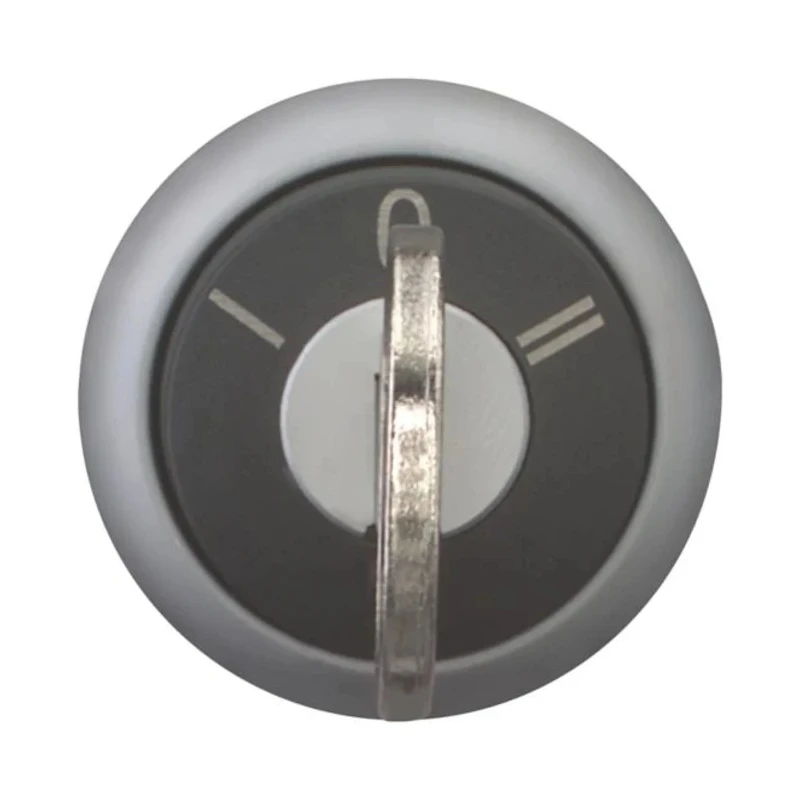

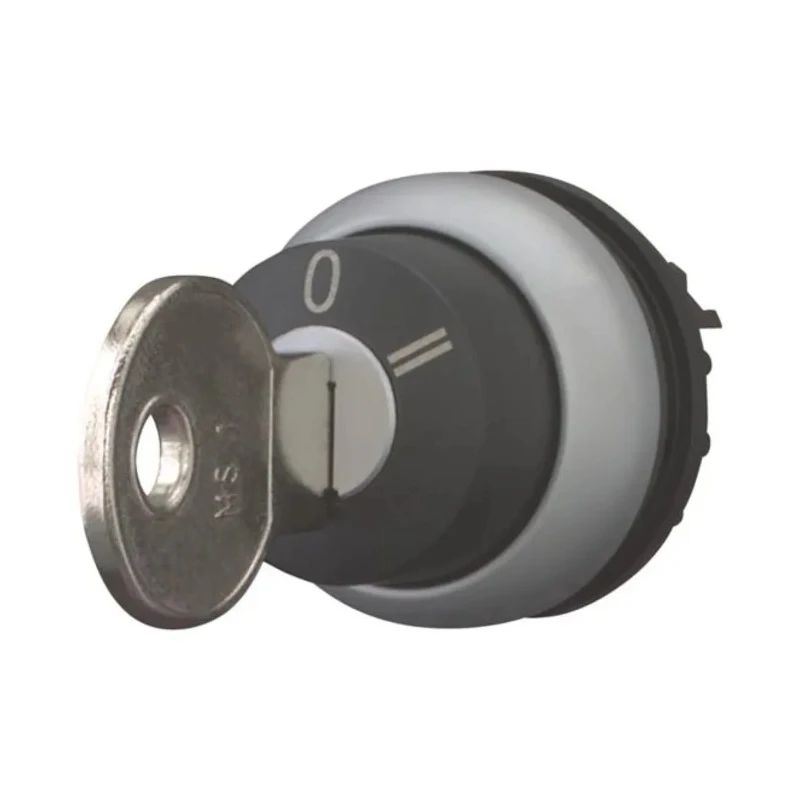

Eaton RMQ-Titan 3-position Key Switch Head, Latching, 22 mm Cutout 78635857 M22-WRS3+M22-A

Eaton 78635857 M22-WRS3+M22-A 3-position Key Switch Head is designed for use in demanding industrial environments requiring reliable and secure switch actuation. This key switch features a latching mechanism that holds the switch in the selected position, providing secure operation and preventing unintentional toggling.

The device fits a standard 22 mm panel cutout, making it compatible with a wide range of equipment panels. It is equipped with an MS1 key type, allowing controlled access and enhancing operational safety by reducing the risk of unauthorized or accidental operation.

With an IP66 ingress protection rating, this switch head is dust-tight and resistant to powerful water jets, allowing it to withstand harsh environmental conditions typically encountered in industrial, agricultural, medical, and manufacturing applications.

Its robust plastic construction and mechanical components support a high mechanical life expectancy of 100,000 operations, ensuring long-term durability and reliability.

The 3-position operation with a 60° angle of throw allows precise selection between operational states, aiding in versatile application functionality for machinery and control panels.

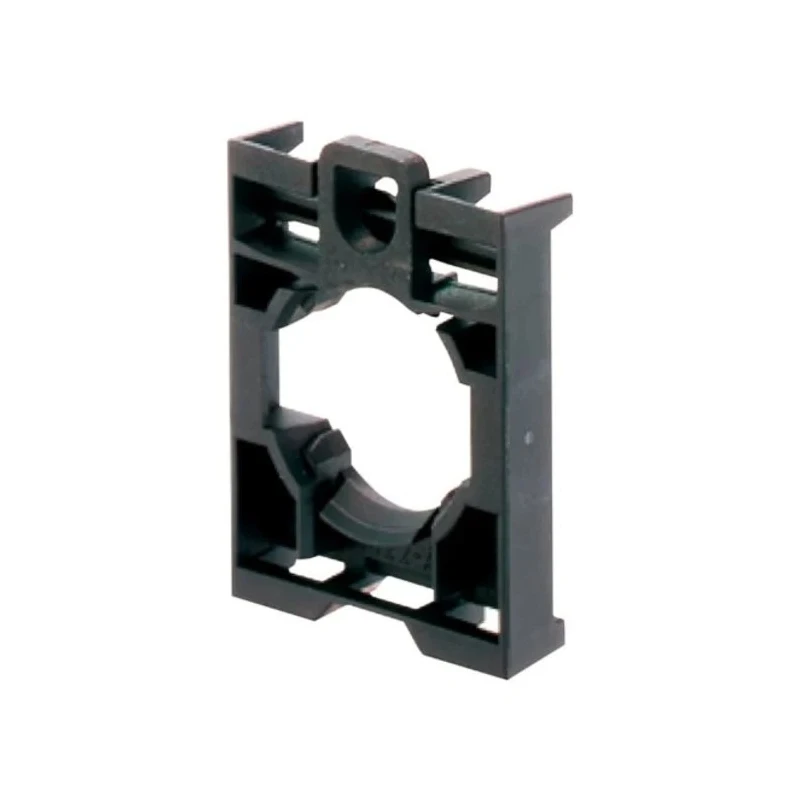

Installation is straightforward due to the inclusion of a mounting bracket and fixing adapter compatible with contact blocks and LEDs, eliminating the need for purchasing additional mounting accessories.

Compliant with several international safety and performance standards, including CSA, UL, IEC/EN, and CE, this Eaton key switch head meets rigorous quality requirements expected in professional industrial settings.

Features a 3-position latching switch operation with a 60° angle of throw providing precise control. Designed with a 22 mm cutout diameter compatible with standard panel sizes. IP66 rated enclosure offers dust-tight protection and resistance to high-pressure water jets.

Constructed with durable materials for high mechanical life of 100,000 operations. Includes one MS1 type key to prevent unauthorized actuation or tampering. Operates reliably across a wide temperature range from -25°C to +70°C.

Complete with mounting bracket and fixing adapter, simplifying installation without additional accessories. Meets multiple international standards including CSA-C22.2 No. 14-05, UL 508, IEC/EN 60947-5, and CE certification.

This Key Switch Head is ideal for industrial automation, manufacturing, medical equipment, and agricultural machinery applications where safety and reliable operation are critical.
