Marquardt Illuminated DPST On-Off On-Off Panel Rocker Switch Polyamide Housing 1800 Series 10A 250V AC 28V DC 1805.7104

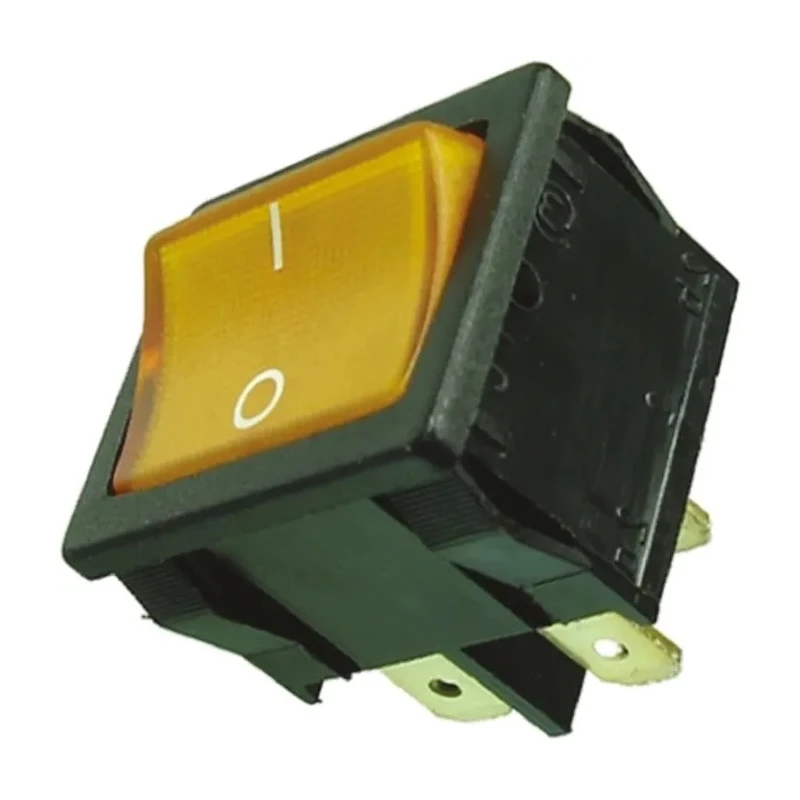

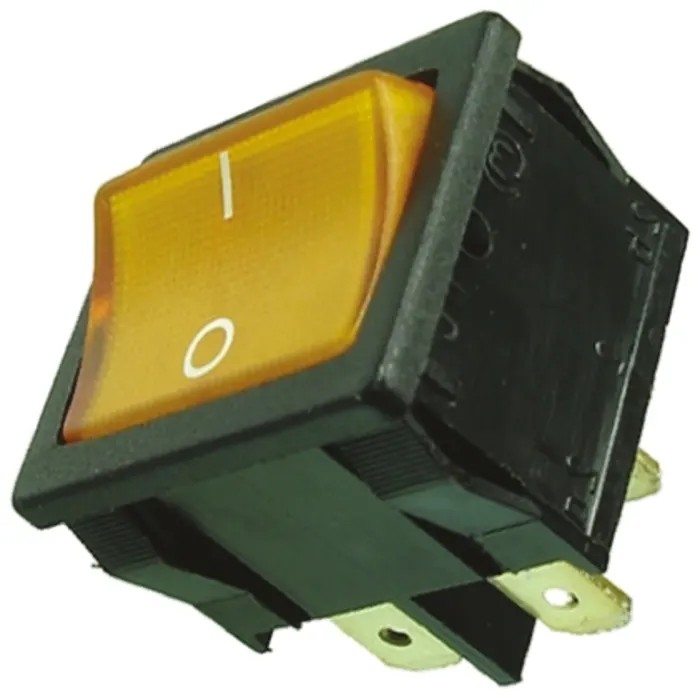

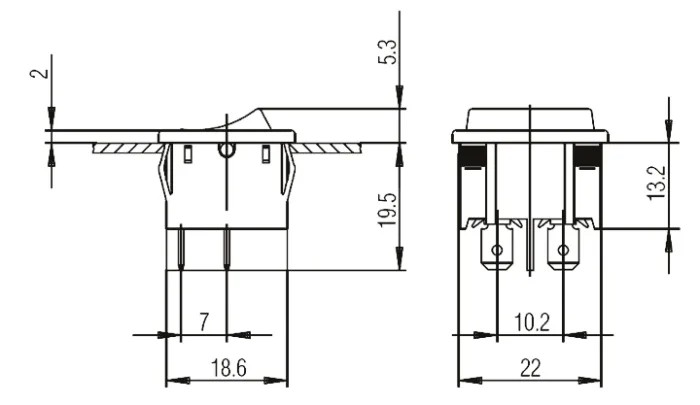

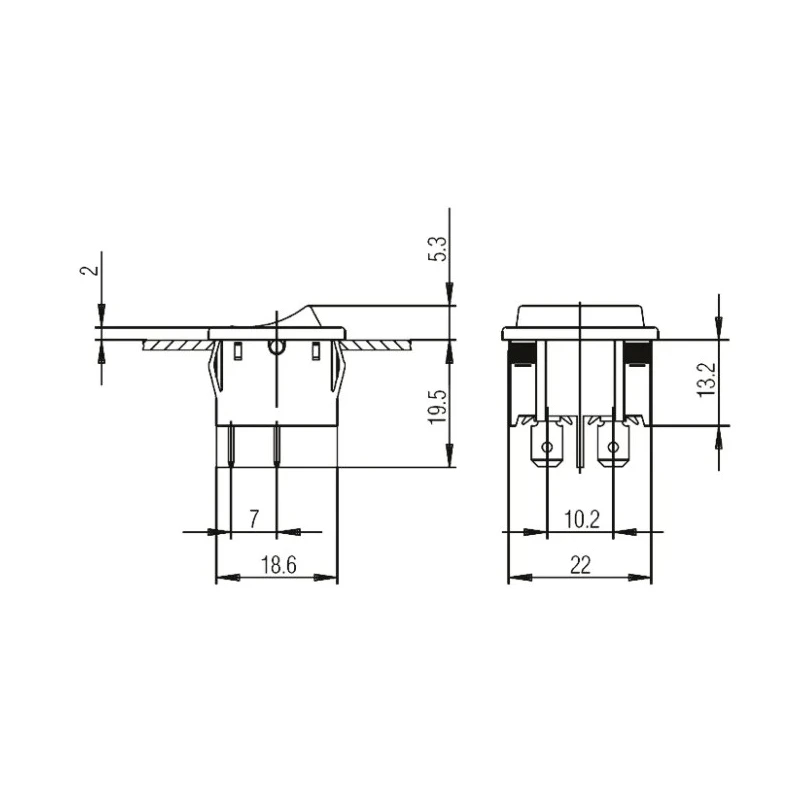

Marquardt 1805.7104 is an illuminated DPST (Double Pole Single Throw) rocker switch designed for reliable electrical control panel applications. Featuring a bright orange rectangular actuator, the switch provides clear visual status indication with white legends denoting On/Off symbols for precise user operation. The switch uses a robust polyamide housing that securely mounts to panels with a cutout dimension of 19.4 x 21.9 mm, supporting panel thicknesses between 0.75 and 3 mm with fixing ribs for a tight fit.

Rated for a contact current of 10A and capable of handling 250V AC or 28V DC contact voltage, this rocker switch ensures safe and efficient circuit control. The quick connect terminal type facilitates rapid and secure wiring connections, enhancing installation productivity. The device operates reliably within a temperature range of -20°C to 55°C, making it suitable for diverse industrial and commercial environments.

The Marquardt 1800 series switch has a mechanical life expectancy of 50,000 operations, promising durability over extended use cycles. It holds certifications from major standards bodies including CSA, BS, CE, RoHS, UL, and VDE, confirming its compliance with international quality and safety standards. The IP40 ingress protection rating safeguards internal components from dust and foreign objects, suitable for typical industrial indoor environments.

This switch is ideal for industrial, laboratory automation, electrical panel assemblies, manufacturing process control, and HVAC systems requiring dependable on/off switching with visual indication. Its illuminated actuator aids operational status monitoring, enhancing safety and usability. The switch’s white legend text ensures clear visibility in low-light conditions.

Illuminated orange rectangular actuator for enhanced visibility. DPST contact configuration for dual circuit switching. Polyamide housing for high mechanical strength and durability. Panel mounting with 19.4 x 21.9 mm cutout size.

Rated for 10A at 250V AC/28V DC contact voltages. Quick connect terminals for fast installation. Operating temperature from -20°C to 55°C. Complies with CSA, BS, CE, RoHS, UL, VDE standards. Mechanical life up to 50,000 operations.

IP40 rated for dust protection.

Environmentally tested and manufactured in Tunisia, this Marquardt Rocker Switch blends quality and functionality for demanding electrical control applications. Browse EnvMart for more Marquardt electrical switch solutions.
