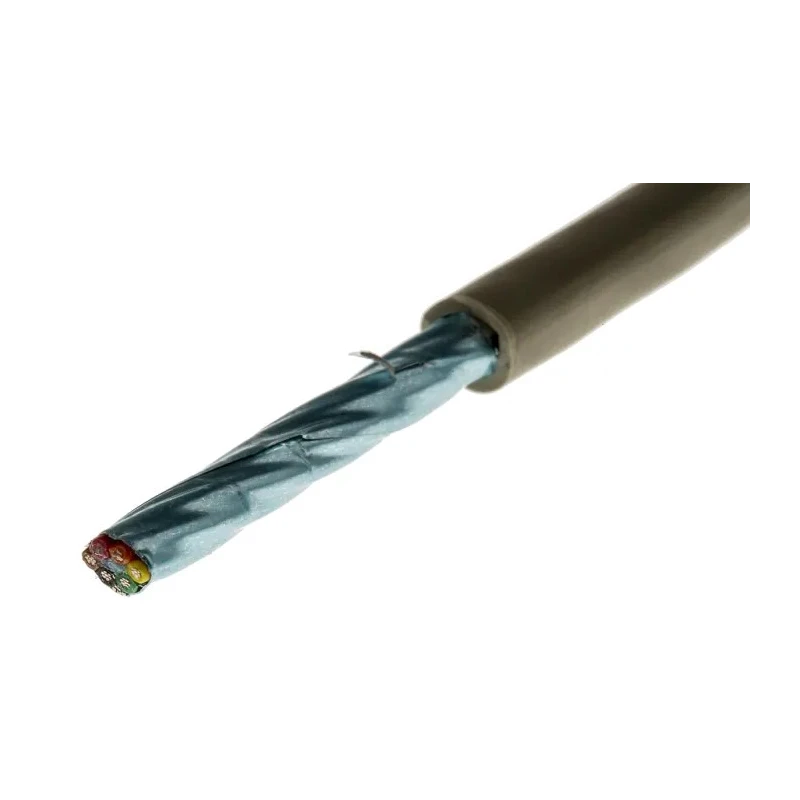

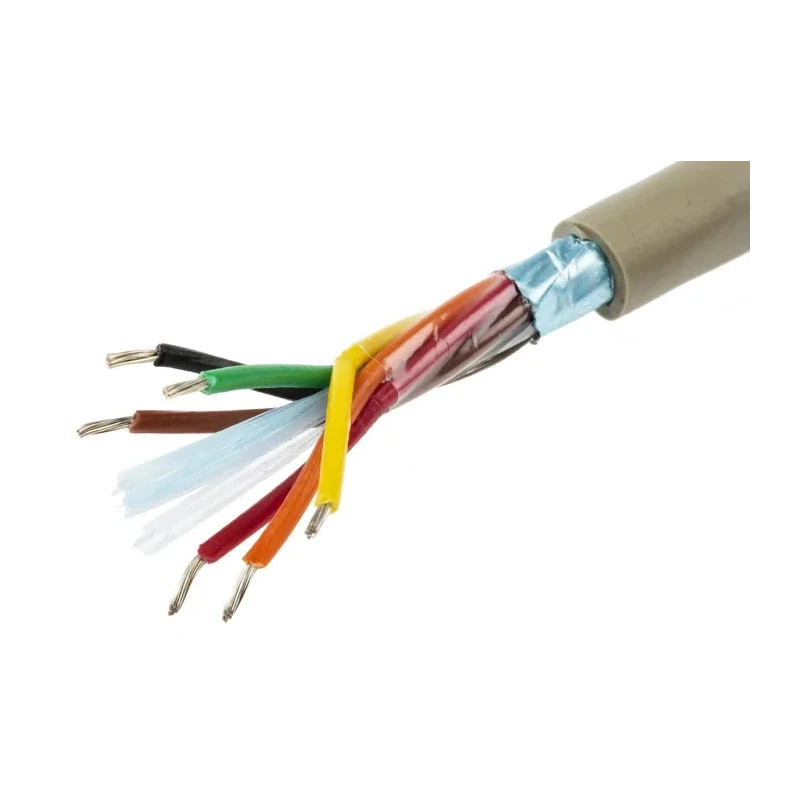

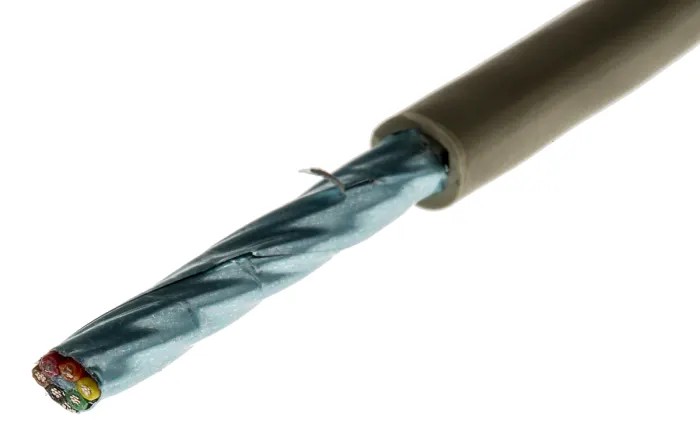

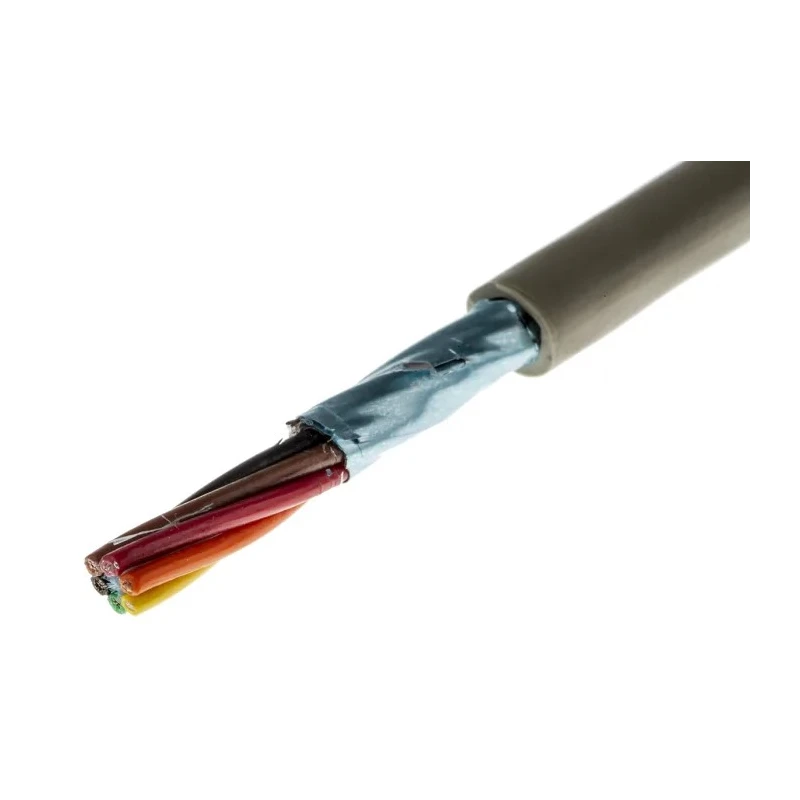

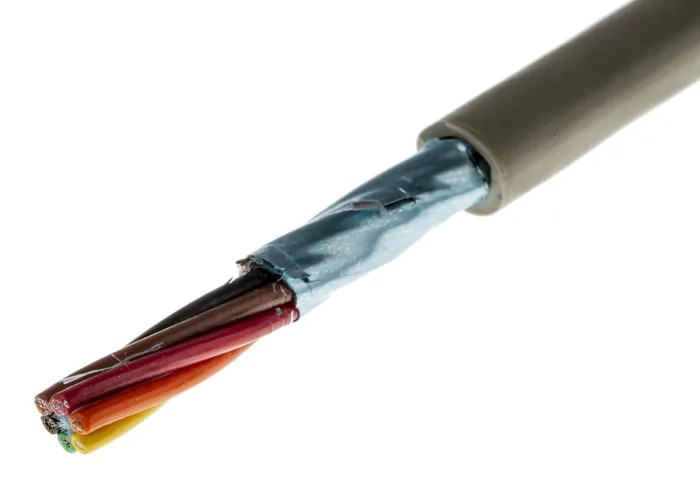

Alpha Wire Pro-Tekt Series Data Cable 6 Cores 0.35 mm² 50 m Grey Sheath Polyvinyl Chloride B954062 GE321
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 300V |
| Brand | Alpha Wire |
| CROSS SECTIONAL AREA | 0.35mm² |
| Model | B954062 GE321 |
| Cable Length | 50m |
| Series | Pro-Tekt |
| Outside diameter | 5.64mm |
| Maximum Operating Temperature | 105°C |
| Number Of Cores | 6 |
| Conductor Material | Tin Copper Wire |
| Minimum Operating Temperature | -30°C |
| Jacket Material | Polyvinyl Chloride |
| Standards/Approvals | CE, CSA Certified, UL |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 740-4585Brand: Alpha WireManufacturers Part No.: B954062 GE321 |
| Jacket Colour | Grey |
| Fire Behaviour | Flame Retardant |
| Conductor Type | Stranded |
| Number of Strands | 7 |
| Core Strands | 7 x 0.25mm |
| Size of Strands | 0.25mm |
Key Features
- The conductor is made of highly conductive tinned copper wire stranded in 7 strands of 0.25 mm each.
- The cable has an outside diameter of 5.64 mm and a minimum bend radius of ten times the diameter for easy installation.
- It has a working voltage of 300 V and operates reliably between -30°C and 105°C.
- The jacket and insulation are made of impact and abrasion resistant polyvinyl chloride material.
- The cable is shielded with an aluminium and polyester foil to minimize electromagnetic interference and ensure noise-free data transmission.
- Flame retardant fire behavior enhances safety in industrial and harsh environments.
- Colour-coded conductors simplify identification during installation.
- Supplied on a 50 m reel suitable for multiple industrial and automation system applications.
Product Description
Alpha Wire B954062 GE321 Pro-Tekt Series Data Cable is engineered for industrial and automation applications requiring reliable and noise-free data transmission.
Featuring 6 cores with a 0.35 mm² cross-sectional area, stranded tinned copper conductors, and protected with a robust grey polyvinyl chloride sheath, this cable withstands harsh environments with operating temperatures from -30°C to 105°C.
The cable's outside diameter of 5.64 mm and a minimum bend radius of ten times the diameter offer flexible installation in tight and complex setups.
The aluminium and polyester foil shield effectively suppresses electromagnetic interference (EMI), ensuring stable signal integrity in process, packaging, robotics, and automation industries.
Flame retardant properties and compliance with CE, CSA, and UL certifications provide added safety and quality assurance. The conductor uses 7 strands of 0.25 mm diameter tinned copper wire for optimal conductivity. The PVC jacket provides excellent resistance to impact and abrasion.
Colour-coded cores aid quick and error-free wiring. This 50 m reel length supports extensive installations and multi-job utility. Voltage rating of 300 V suits a diverse range of industrial control systems. Ideal for use in electrical power, industrial cables, process control, packaging machinery, and robotic automation settings.
Explore the wide range of Alpha Wire products at EnvMart for your electrical installation needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Alpha Wire Pro-Tekt Series Data Cable has a voltage rating of 300 V, making it suitable for various industrial control systems.
This model operates reliably between -30°C and 105°C, accommodating a wide range of environmental conditions.
The cable features 6 cores, each with a cross-sectional area of 0.35 mm².
The conductors are made of stranded tinned copper wire, while the jacket is constructed from polyvinyl chloride (PVC).
The outside diameter of the cable is 5.64 mm, which aids in installation flexibility.
It is shielded with an aluminium and polyester foil to minimize electromagnetic interference (EMI) and ensure stable signal integrity.
The cable is supplied on a 50 m reel, suitable for extensive installations.
Yes, it is CE, CSA Certified, and UL approved, ensuring compliance with safety and quality standards.
The cable has flame retardant properties, which enhance safety in industrial and harsh environments.
It has a minimum bend radius of ten times its diameter, allowing for flexible installation in tight spaces.
This model is ideal for use in electrical power, industrial cables, process control, packaging machinery, and robotic automation settings.
Each core consists of 7 strands of 0.25 mm diameter tinned copper wire for optimal conductivity.
