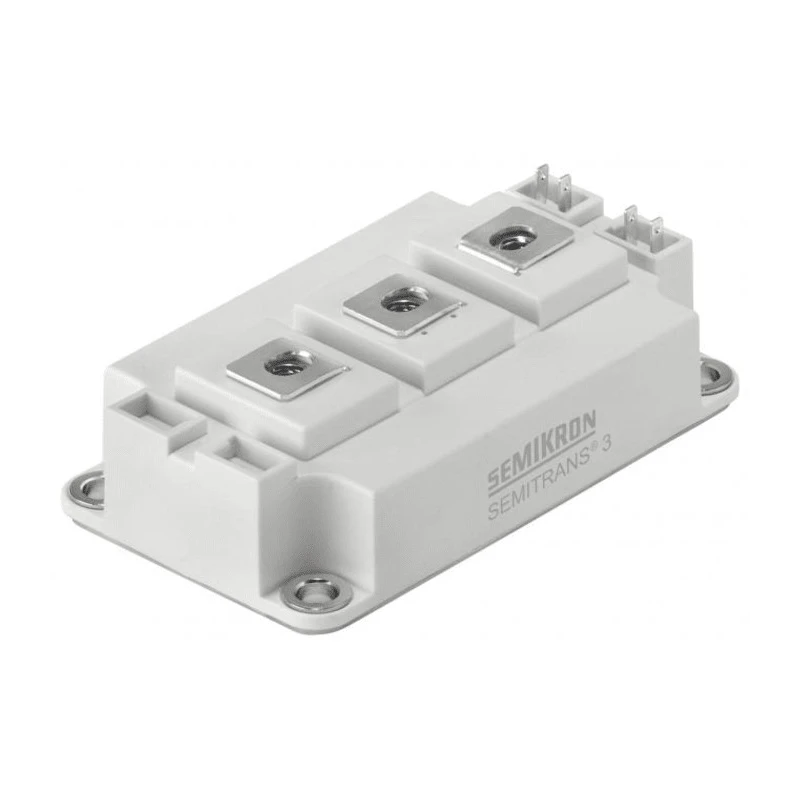

Semikron Danfoss N-Channel IGBT Module SEMITRANS 3 GB Surface Mount, 422 A, 0.9 V SKM300GB12T4
Specifications
| Country of Origin | India |
|---|---|
| Brand | Semikron Danfoss |
| Height | 30.5mm |
| Length | 106.4mm |
| Model | SKM300GB12T4 |
| Width | 61.4mm |
| Mount Type | Surface |
| Series | SKM300GB12T4 |
| Maximum Operating Temperature | 175°C |
| Package Type | SEMITRANS 3 GB |
| Minimum Operating Temperature | -40°C |
| Standards/Approvals | UL, File no. E63532 |
| Pin Count | 7 |
| Maximum Continuous Collector Current Ic | 422A |
| Maximum Collector Emitter Voltage Vceo | 0.9V |
| Maximum Collector Emitter Saturation Voltage VceSAT | 2.1V |
| Channel Type | N |
| Maximum Gate Emitter Voltage VGEO | 20 V |
| Number of Transistors | 2 |
Key Features
- Designed with a maximum continuous collector current of 422 A for robust power handling.
- Incorporates a 7-Pin SEMITRANS 3 GB surface mount package for reliable installation.
- Operates at a maximum collector emitter voltage of 0.9 V ensuring high efficiency.
- Supports switching frequencies up to 20 kHz, suitable for inverter drives and UPS systems.
- Features a rugged construction with a maximum operating temperature of 175°C for industrial reliability.
- Includes integrated gate resistors and soft switching 4th generation CAL-diode for enhanced performance.
- Utilizes Direct Bonded Copper (DBC) technology for optimized thermal management.
- Minimum operating temperature rating of -40°C enables operation in harsh environments.
Product Description
Semikron Danfoss SKM300GB12T4 is a N-Channel IGBT Module featuring a 7-Pin SEMITRANS 3 GB package and surface mounting technology. It guarantees a maximum continuous collector current of 422 A and operates at a maximum collector emitter voltage of 0.9 V, ideal for high power and industrial electronic applications.
This module is part of the IGBT4 generation designed for applications such as electronic welders, AC inverter drives, uninterruptible power supplies (UPS), and other power electronics requiring efficient switching at frequencies up to 20 kHz.
The SKM300GB12T4 employs a copper baseplate using direct bonded copper (DBC) technology, which offers excellent thermal conductivity and reliable heat dissipation. The integrated gate resistor and soft switching 4th generation CAL-diode further augment switching performance and reduce power loss.
Built to endure tough environments, it operates within a temperature range from -40°C to 175°C, ensuring operational robustness. The module meets UL safety standards (File no. E63532), underscoring its quality and compliance.
Maximum continuous collector current: 422 A. Maximum collector emitter voltage: 0.9 V. 7-pin SEMITRANS 3 GB package, surface mount. Integrated gate resistor and 4th generation CAL-diode for soft switching. Direct Bonded Copper baseplate for thermal management.
Operating temperature range: -40°C to 175°C. Switching frequency support up to 20 kHz. UL approved, file no. E63532.
This Semikron Danfoss IGBT Module is suited for use in industrial automation, power electronics manufacturing, welding equipment, HVAC systems, renewable energy solutions, and other commercial and manufacturing applications demanding efficient, reliable switching devices.
Explore related semiconductor modules under the IGBT category at EnvMart for comprehensive solutions to your power electronics requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous collector current of the SKM300GB12T4 is 422 A.
This IGBT module operates at a maximum collector emitter voltage of 0.9 V.
The operating temperature range for this model is from -40°C to 175°C.
It supports switching frequencies up to 20 kHz, making it suitable for various applications.
This model utilizes a 7-Pin SEMITRANS 3 GB surface mount package for reliable installation.
The SKM300GB12T4 employs Direct Bonded Copper (DBC) technology for optimized thermal management.
Yes, it includes integrated gate resistors and a soft switching 4th generation CAL-diode for enhanced performance.
The dimensions of this IGBT module are 106.4 mm in length, 61.4 mm in width, and 30.5 mm in height.
This IGBT module is suitable for applications such as electronic welders, AC inverter drives, and uninterruptible power supplies (UPS).
The SKM300GB12T4 meets UL safety standards, with file number E63532.
This IGBT module contains 2 transistors.
The maximum gate emitter voltage for the SKM300GB12T4 is 20 V.
