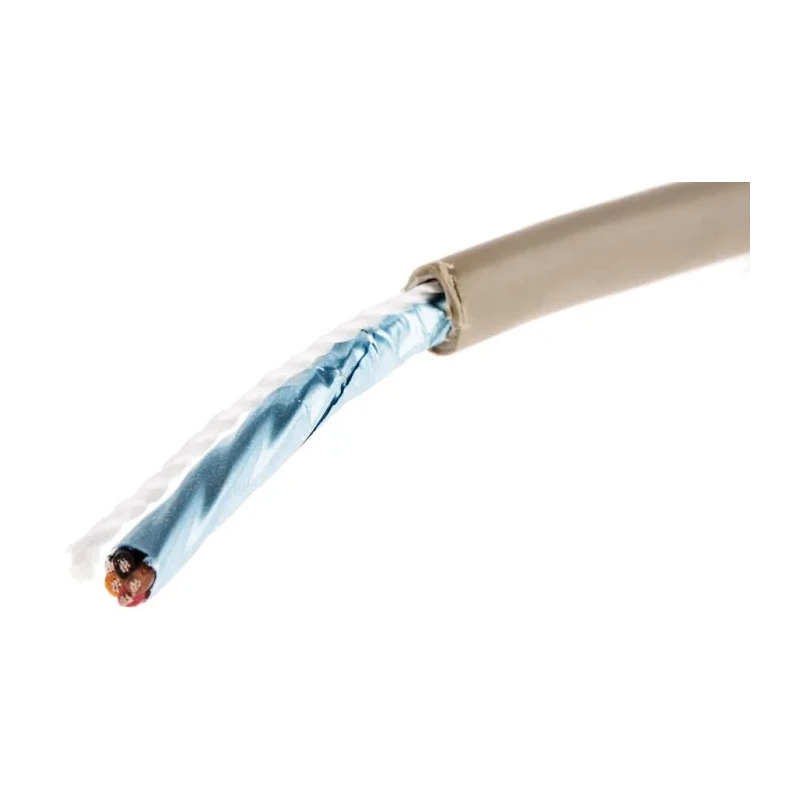

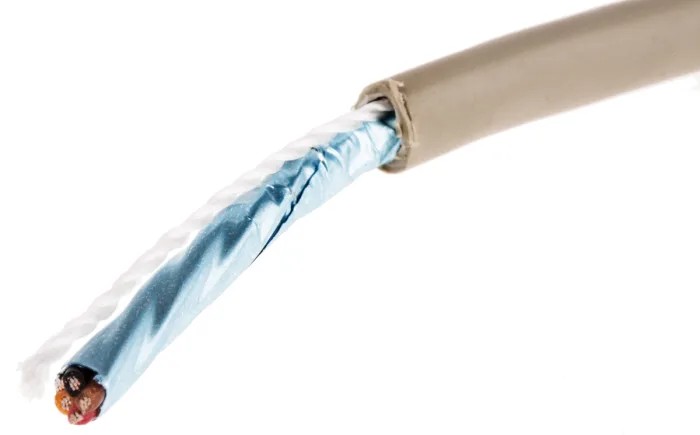

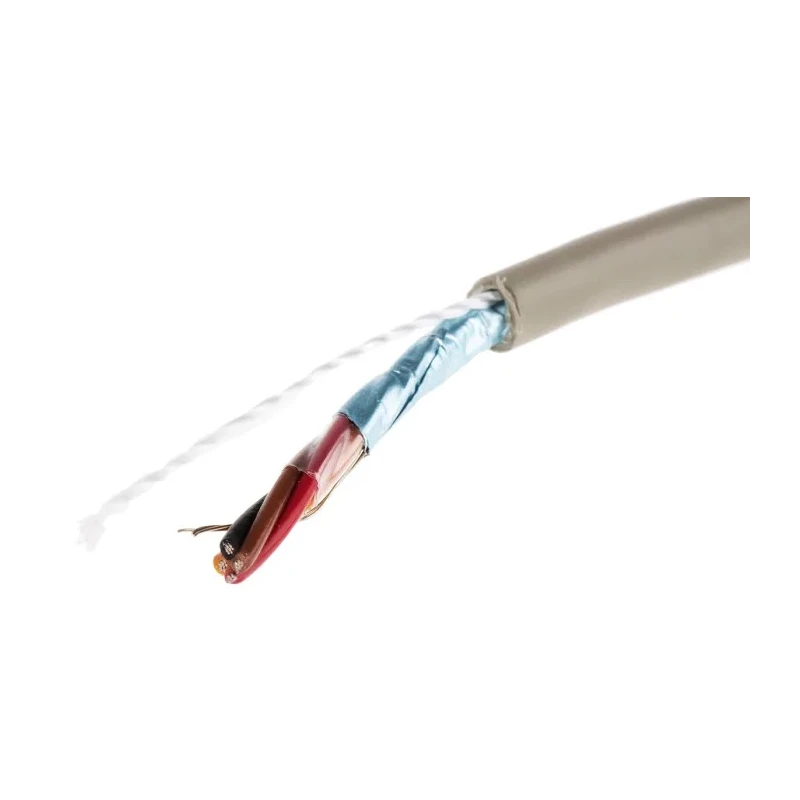

Alpha Wire Pro-Tekt Series Data Cable 4 Cores 0.35 mm² 50 m Grey Sheath Polyvinyl Chloride B954042 GE321

Free Delivery in India | Lowest Global Shipping Charges

Alpha Wire Pro-Tekt Series Data Cable 4 Cores 0.35 mm² 50 m Grey Sheath Polyvinyl Chloride B954042 GE321

Name: Alpha Wire Pro-Tekt Series Data Cable 4 Cores 0.35 mm² 50 m Grey Sheath Polyvinyl Chloride B954042 GE321
Brand: ALPHA WIRE
SKU: 361870
Price: 205.99 USD
Availability: InStock



Category Data Cable Brand ALPHA WIRE Condition New

Specifications

Country of Origin	India
Voltage	300V
Brand	Alpha Wire
CROSS SECTIONAL AREA	0.35mm²
Model	B954042 GE321
Cable Length	50m
Series	Pro-Tekt
Outside diameter	4.88mm
Maximum Operating Temperature	105°C
Number Of Cores	4
Conductor Material	Tin Copper Wire
Minimum Operating Temperature	-30°C
Jacket Material	Polyvinyl Chloride
Standards/Approvals	CE, CSA Certified, UL
Pay online using	Or choose to pay later via bank transfer
RS Stock No.	740-4581Brand: Alpha WireManufacturers Part No.: B954042 GE321
Jacket Colour	Grey
Fire Behaviour	Flame Retardant
Conductor Type	Stranded
Number of Strands	7
Core Strands	7 x 0.25mm
Size of Strands	0.25mm
Conductors	4, Black, Brown, Red, OrangeNominal Diameter: 0.192 inch (4.88 mm)Jacket Thickness: 0.032 inch (0.81 mm)Stranding: 7/30Insulation Thickness: 0.010 (0.25 mm)22 AWG (0.35 mm²)Jacket Colour: Grey
RS PRO Data Cable 0.34 mm² 100 m Grey Sheath Polyvinyl ChlorideBrand	RS PRO

Key Features

The cable has a nominal outside diameter of 4.88 mm and a flame retardant PVC jacket.
Designed for operation between -30°C to +105°C with a voltage rating of 300 V.
Complies with CE, CSA Certified, and UL safety standards.
Stranded conductors provide flexibility and durability for industrial use.
Color-coded cores include Black, Brown, Red, and Orange for easy identification.
Suitable for demanding applications in industrial automation, medical devices, aerospace, petrochemical, and commercial electronics.
Foil shielded with a premium PVC sheath ensuring electromagnetic resistance and abrasion protection.
Compatible with switches, plugs, sockets, and connectors for seamless integration.

Product Description

Alpha Wire B954042 GE321 Pro-Tekt Series Data Cable is a 4-core, 0.35 mm² cross-sectional area cable with a length of 50 meters. It features a grey Polyvinyl Chloride sheath that provides excellent mechanical strength and flame retardant properties. Designed for industrial environments, the cable operates across a wide temperature range from −30°C to +105°C and supports a voltage rating of 300 V.

The cable conductors are made of stranded tin copper wire, enhancing flexibility and connectivity with terminals and connectors. Its nominal outside diameter is 4.88 mm with a jacket thickness of 0.81 mm, insulation thickness of 0.25 mm, and stranding of 7/30, ensuring durability and high performance in demanding applications.

The Pro-Tekt series is foil shielded for electromagnetic interference resistance, combined with a flame retardant PVC jacket suitable for use in industrial automation, medical devices, aerospace, petrochemical, and commercial electronics sectors. The color-coded cores (Black, Brown, Red, Orange) facilitate straightforward wiring and troubleshooting.

Stranded tin copper conductors for enhanced flexibility. Durable Polyvinyl Chloride jacket with flame retardant properties. Operating temperature range from −30°C to +105°C. Compliant with CE, CSA, and UL standards for safety and reliability.

50 meters cable length with 4 individually color-coded cores. Suitable for industrial, laboratory, electrical, and automation applications. Foil shielding reduces electromagnetic interference ensuring signal integrity. Perfect for combining data and power in a single cable installation.

This cable is optimized for use within the European market as part of Alpha Wire's Pro-Tekt European Cable System. It provides a compact, highly flexible solution designed for tight installation spaces and demanding industrial environments.

Explore our catalog for more industrial-grade Data Cables and related products tailored for professional applications on EnvMart.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

The nominal outside diameter of this data cable is 4.88 mm.

This model can operate at a maximum temperature of 105°C.

The voltage rating of this cable is 300 V.

The cable has 4 cores, which are color-coded as Black, Brown, Red, and Orange.

The jacket of this cable is made from Polyvinyl Chloride (PVC).

This model uses stranded tin copper wire conductors, which enhance flexibility and connectivity.

Yes, this cable is suitable for demanding applications in industrial automation, medical devices, aerospace, petrochemical, and commercial electronics.

The cable complies with CE, CSA Certified, and UL safety standards.

The minimum operating temperature for this data cable is -30°C.

The length of this cable is 50 meters.

The jacket thickness is 0.81 mm and the insulation thickness is 0.25 mm.

This cable is foil shielded to provide resistance against electromagnetic interference.
