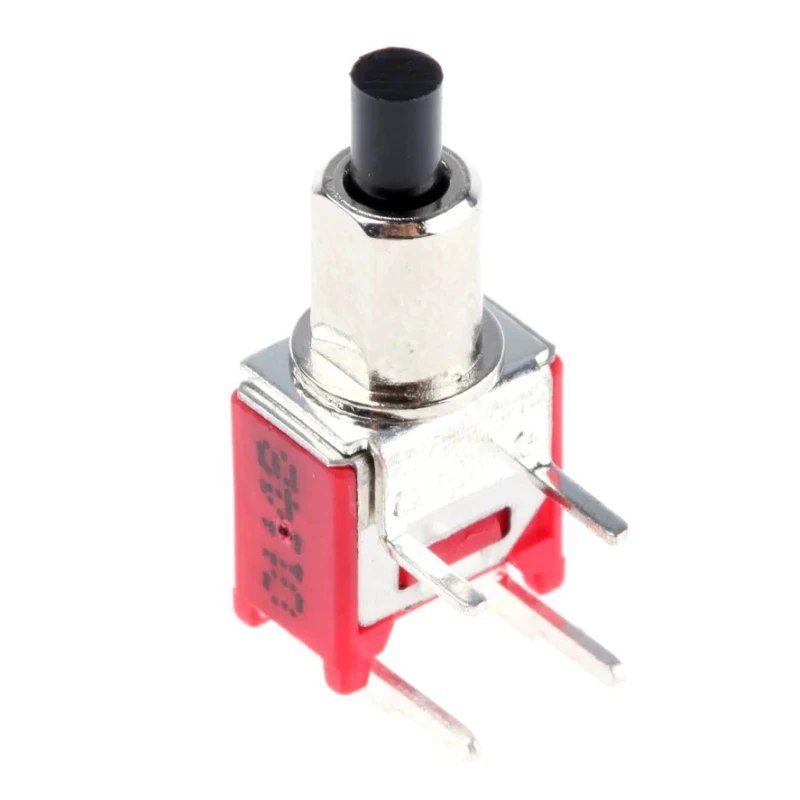

RS PRO Push Button Switch Momentary PCB Mount 4.9 mm Cutout SPST Black LED 28V dc 120V ac 734-6732

RS PRO 734-6732 Push Button Switch is a momentary operation switch designed for PCB mounting with through hole terminals. It features a compact 4.9 mm cutout size suitable for sub miniature switch applications. The switch has SPST (single pole single throw) contact configuration and operates at contact voltages of 28 V dc and 120 V ac, supporting a maximum contact current of 3 amps.

The actuator style is a black cap with a black LED indicator, providing a non-illuminated appearance. This switch is capable of operating at maximum temperatures of up to 85°C, making it suitable for use in demanding industrial and electronic environments.

Typical applications include telecommunication systems, instrumentation panels, and medical equipment where precise momentary switch control is needed. Its durable design with reliable electrical characteristics ensures long-term performance in PCB mounted control circuits.

The sub miniature size and robust construction allow it to be integrated efficiently in compact control systems with demanding electrical switching requirements. Designed for PCB mounting with through hole terminals for secure installation.

Momentary switch operation with SPST contact configuration. Black cap style actuator with black LED, non-illuminated. Supports 28V dc and 120V ac contact voltages with 3A contact current. Maximum operating temperature of 85°C.

Sub miniature size for telecommunication, instrumentation, and medical equipment applications. Compact 4.9 mm panel cutout for easy integration.

This RS PRO push button switch meets the requirements of various industrial sectors such as electronics manufacturing, telecommunications, medical device assembly, and instrumentation. Environmentally rated for typical factory floor and commercial electronic uses.
