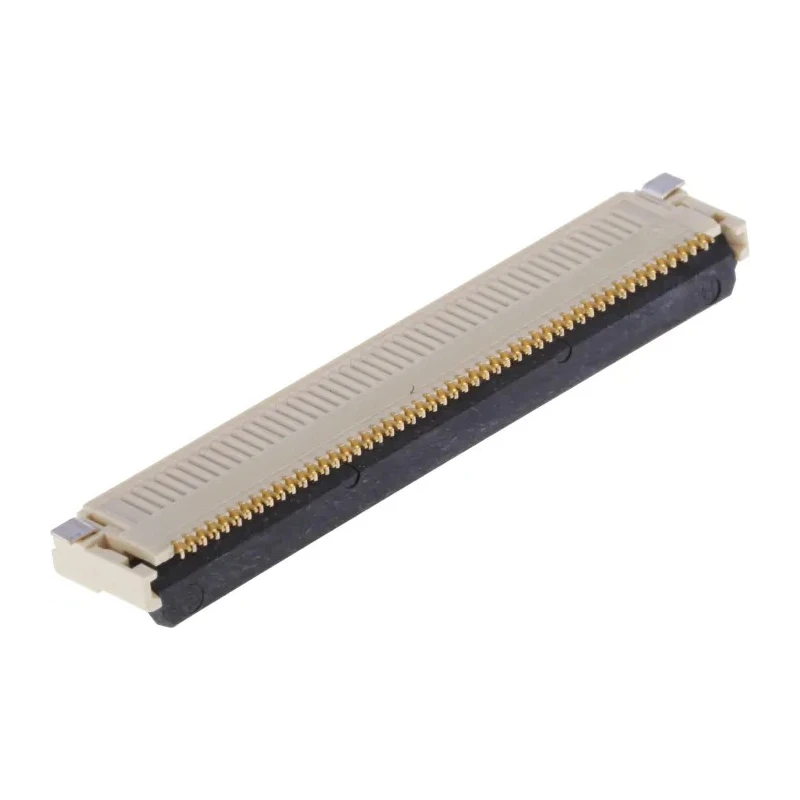

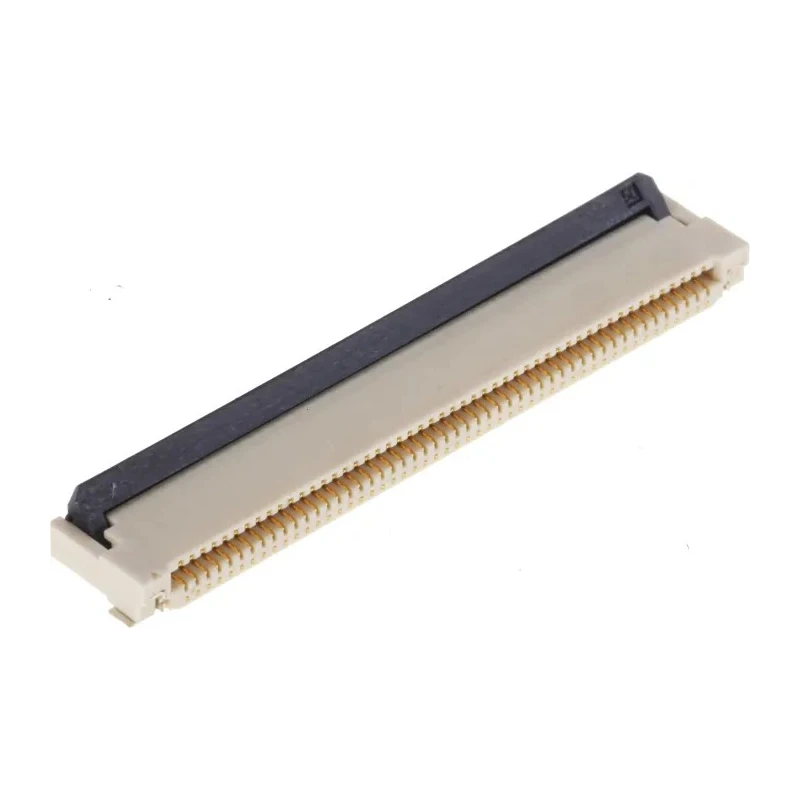

Omron 0.5 mm Pitch 50 Way Right Angle Female FPC Connector Surface Mount Solder Termination XF2M
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 50, 50V ac |
| Brand | Omron |
| Orientation | Right Angle |
| Current | 500mA |
| Model | XF2M |
| Mount Type | Surface |
| Housing Material | Liquid Crystal Polymer |
| Contact Material | Copper Alloy |
| Series | XF2M |
| Termination Type | Solder |
| Maximum Operating Temperature | 85°C |
| Sub Type | Easy-On FFC/FPC Connector |
| Minimum Operating Temperature | -30°C |
| Number of Rows | 1 |
| Pitch | 0.5mm |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 731-5839Brand: OmronManufacturers Part No.: XF2M-5015-1A |
| Contact Plating | Gold over Nickel |
| Number of Contacts | 50 |
| Contact Gender | Female |
| Connector Gender | Female |
| Contact Position | Dual |
Key Features
- Features 50 contacts with a 0.5 mm pitch for precise connections.
- Utilizes a rotary backlock mechanism to ensure secure and stable FPC mounting.
- Constructed with a liquid crystal polymer housing for high durability and UL94V-0 flame resistance.
- Gold plated contacts over nickel enhance conductivity and corrosion resistance.
- Supports currents up to 500 mA and operating voltages of 50 V AC.
- Designed for a minimum operating temperature of -30°C and maximum of 85°C.
- Right angle dual contact position with side entry surface mount terminals.
- Halogen-free material composition suitable for environmentally conscious applications.
Product Description
Omron XF2M-5015-1A is a 0.5 mm pitch 50 way right angle female FPC connector designed for secure and reliable connections in electronic assemblies. Featuring surface mount solder termination, this connector supports a compact 2 mm on-board profile that is ideal for small electronic devices. The rotary backlock mechanism facilitates easy FPC mounting and enhances contact reliability in tight spaces.
The connector housing is made from liquid crystal polymer (LCP) that meets UL94V-0 flame retardant standards ensuring high durability and safety. Gold over nickel plating on the copper alloy contacts provides excellent conductivity and protection against corrosion, making it suitable for applications requiring stable electrical performance.
This model supports a current rating of 500 mA and voltage of 50 V AC, operating safely within a temperature range of -30°C to 85°C. The design includes a single row of dual-position contacts oriented at a right angle, with side entry SMT terminals, making it optimal for compact PCB layouts.
The halogen-free construction aligns with environmental standards, making it a preferred choice for mobile phones, digital cameras, audio and video players, and other handheld digital devices. The easy-on FFC/FPC connector design aids assembly efficiency and mechanical stability.
Features 50 contacts spaced at 0.5 mm pitch. Uses a rotary backlock mechanism for secure connection. Built with liquid crystal polymer housing and flame retardant rating UL94V-0. Gold plated contacts over nickel enhance electrical reliability.
Supports up to 500mA current and 50V AC voltage. Operates from -30°C to 85°C temperature range. Right angle, single-row dual contacts with side entry SMT mount. Halogen free, environmentally friendly design.
This product is suitable for various industrial and consumer electronic applications requiring compact, durable, and reliable FPC connections. Explore more FPC Connectors on EnvMart to find compatible components for your design projects.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This connector features a 0.5 mm pitch and has 50 contacts, providing precise connections for electronic assemblies.
It supports a maximum current rating of 500 mA and an operating voltage of 50 V AC, ensuring reliable electrical performance.
The connector operates safely within a temperature range of -30°C to 85°C, making it suitable for various environments.
The housing is constructed from liquid crystal polymer (LCP), which meets UL94V-0 flame retardant standards for durability and safety.
The rotary backlock mechanism ensures secure and stable FPC mounting, enhancing contact reliability in tight spaces.
It utilizes surface mount solder termination, which is ideal for compact electronic device assemblies.
Yes, it is constructed from halogen-free materials, aligning with environmental standards for safer applications.
The connector has a right angle orientation with dual-position contacts, facilitating efficient PCB layout.
The contacts are gold plated over nickel, which enhances conductivity and provides corrosion resistance.
It is suitable for various industrial and consumer electronic applications, including mobile phones, digital cameras, and audio/video players.
This model features a female connector gender and is categorized as an easy-on FFC/FPC connector.
