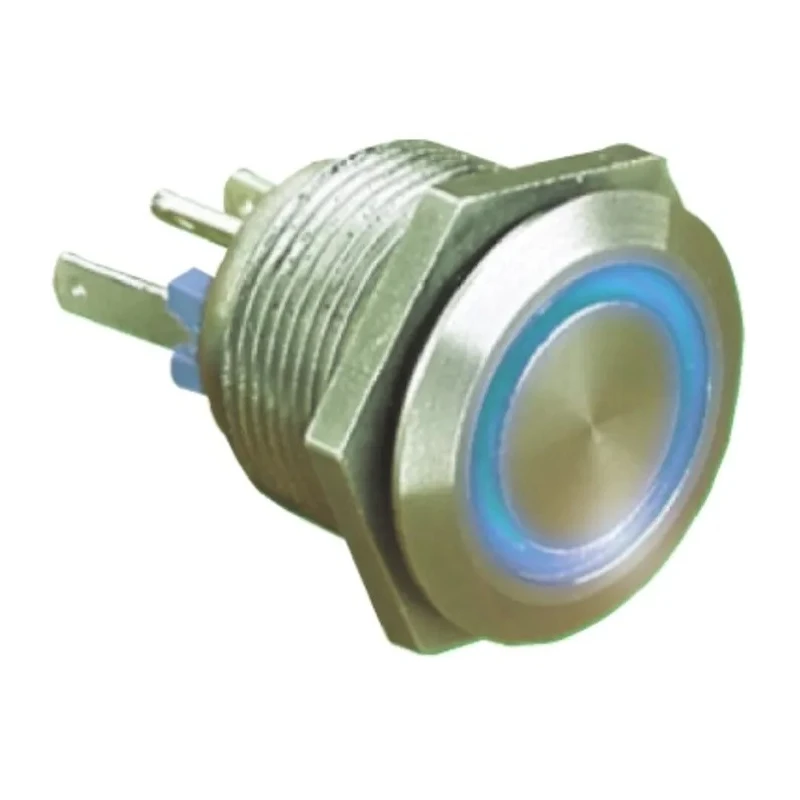

Bulgin MPI002 Series Illuminated Push Button Switch Momentary Panel Mount 19.2 mm Cutout SPST Blue LED IP66 MPI002

Bulgin MPI002 Series illuminated push button switch is a high-quality momentary switch designed for panel mounting applications. It features a 19.2 mm panel cutout size with a single pole single throw (SPST) contact configuration and a blue LED illumination that provides excellent visual indication. The actuator is a silver-colored button designed for durability and ease of use.

Constructed with vandal-resistant stainless steel, this switch is built to withstand harsh industrial environments, making it ideal for applications in electrical, automation, and control systems. The switch is sealed to an IP66 rating on the front of the panel, ensuring resistance against dust and water ingress.

It operates reliably over a wide temperature range from -30°C to 70°C. The blue LED illumination is fitted with an integral supply resistor suitable for 6 V, 12 V, and 24 V variants, with this specific model configured for 24 V applications. The solder terminal type facilitates secure and reliable wiring connections.

This switch is RoHS compliant and equipped with internal TVS protection to guard against transient voltage spikes. The overall length of the switch is 31 mm when fitted with screw terminals and 32.7 mm with 2.8 mm tags. Front sealing and robust construction make it an excellent choice for industrial control panels, machinery interfaces, and security systems.

The switch actuator is silver and button style for tactile feedback. Momentary switch operation ensures temporary circuit activation. Blue LED illumination enhances visibility and user feedback. Designed to mount securely on panels with a 19.2 mm cutout.

Solder terminal wiring type provides stable electrical connection. Vandal resistant and stainless steel construction improves durability. IP66 rating protects from dust and water ingress on the panel front. Operational temperature range suits many industrial environments.

RoHS compliant for environmental safety standards. Manufactured in Tunisia to high production quality standards.

This Bulgin MPI002 push button switch is ideal for industrial automation, electrical control panels, manufacturing equipment interfaces, and security system applications. For more options, please browse the Push Button Switches category at EnvMart.
