Bulgin MPI002 Series Illuminated Push Button Switch Momentary Panel Mount SPST Red LED 24 V dc MPI002

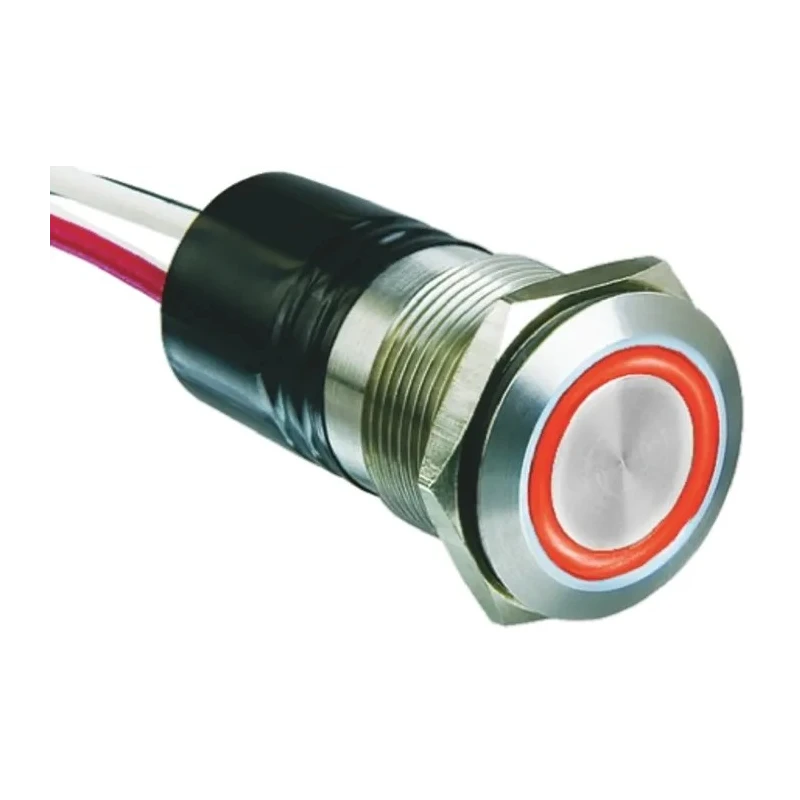

Bulgin MPI002 Series Illuminated Push Button Switch MPI002 is a high-quality momentary panel mount switch equipped with a red LED illumination and SPST contact configuration. Operating at 24 V dc and rated IP66, it provides excellent protection against dust and water ingress, making it suitable for demanding industrial environments and vandal resistant applications.

Manufactured from stainless steel, this switch is designed to withstand wear and tear with an actuator style button in silver finish. It fits into panels with a 19.2 mm cutout and is compliant with RoHS standards.

The switch supports a contact current of 50mA and operates efficiently within a temperature range of -30°C to 70°C. It includes integral supply resistors for different voltage variants (6V, 12V, and 24V) and the option of flying leads or 2.8 mm solder tag terminations offers flexible installation choices. Internal TVS protection enhances reliability against electrical surges.

The overall length of the switch component varies based on termination, measuring 35mm plus 300mm for flying leads or 32.7mm for solder tags. This product is engineered for electric automation, control panels, and machinery applications demanding a reliable, illuminated push button switch with IP66 protection.

The switch features a silver actuator button style for momentary operation. It is suitable for panel mounting with a panel cutout size of 19.2 mm. The device offers a contact current rating of 50mA at 24 V dc. Provides IP66 protection, making it fully sealed and vandal resistant.

Operating temperature ranges from -30°C to 70°C for versatile application. Manufactured from stainless steel with integral supply resistor variants for 6V, 12V, and 24V illumination. Available termination options include flying leads or 2.8 mm solder tag connections.

Includes internal TVS protection to enhance durability against electrical surges. Overall length is 35mm plus 300mm flying leads or 32.7mm with solder tags.

This Bulgin MPI002 push button switch is ideal for industrial, electrical automation, control systems, and panel assembly applications requiring reliable illuminated switch functionality with high ingress protection.
