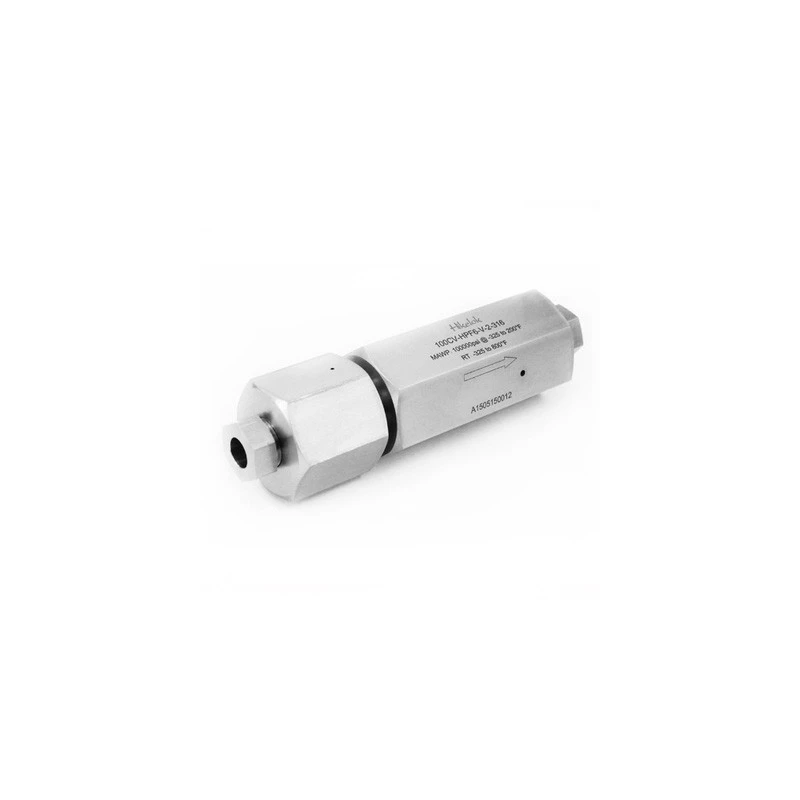

Single Ferrule Compression Check Valves With Maximum Working Pressure Up To 15,000 Psig (1034 Bar), 15CV
Specifications
| Applications | Industrial |
|---|---|
| Type of Product | Single Ferrule Compression Check Valves With Maximum Working Pressure Up To 15000 Psig (1034 Bar) 15CV |
| PTFE O-ring with Low Temp Spring | -100 Degree F (-73 Degree C) |
| FFKM O-ring | 30 to 500F (-18 to 260C) |
| Viton (FKM) O-ring | 0 Degree to 400 Degree F (-18 Degree to 204 Degree C) |
| PTFE O-ring | -100 Degree to 400 Degree F (-73 Degree to 204 Degree C) |
Key Features
- Ball and poppet are an integral design to assure positive,in-line seating. Poppet is designed essentially for axial flow with minimum pressure drop
- Installation: Vertical or Horizontal as required. Flow Direction Arrow marked on valve body.
Product Description
Single Ferrule Compression Check Valves With Maximum Working Pressure Up To 15,000 Psig (1034 Bar),15CV Provide unidirectional flow and tight shut-off for liquids and gases with high reliability. When differential drops below cracking pressure, valve shuts off. Hikelok Ball check valves prevent reverse flow where leak-tight shut-off is not mandatory. When differential drops below cracking pressure, valve closes. With all-metal components, valve can be used up to 650 Degree F (343 Degree C).
- Cracking Pressure: 20 psi (1.38 bar) +/- 30% Optional cracking pressures not available in Ball Style Check Valves
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum working pressure of this model is up to 15,000 Psig (1034 Bar).
This valve features all-metal components, ensuring reliability in various applications.
The cracking pressure is 20 psi (1.38 bar) +/- 30%.
It can operate in temperatures up to 650°F (343°C).
The valve is available with PTFE, FFKM, and Viton (FKM) O-rings, each with specific temperature ranges.
Yes, it can be installed vertically or horizontally as required.
It is designed for industrial applications, providing unidirectional flow and tight shut-off for liquids and gases.
The valve features a flow direction arrow marked on its body to indicate the correct installation direction.
The valve is designed for axial flow with minimum pressure drop, ensuring efficient operation.
Optional cracking pressures are not available in Ball Style Check Valves.
The minimum operating temperature for the PTFE O-ring is -100°F (-73°C).
