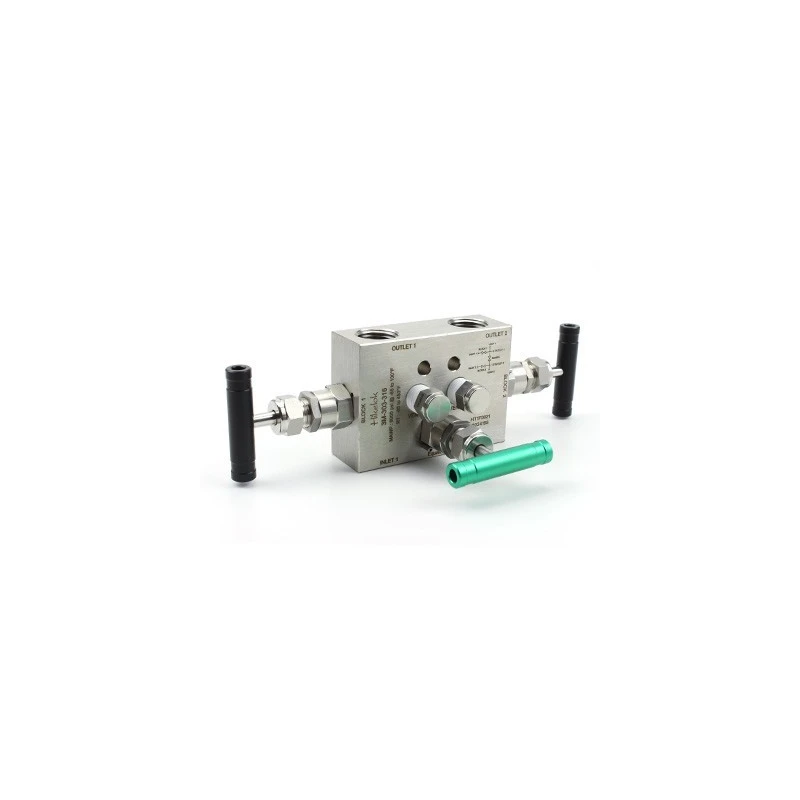

3 Valve Manifolds-Instrumentation Manifolds Orifice Size 157 in. (4.0 mm), 3M-303
Specifications
| Applications | Industrial |
|---|---|
| Working Temperature | PTFE packing from -65 Degree F to 450 Degree F (-54 Degree C to 232 Degree C) Graphite packing from -65 Degree F to 1200 Degree F(-54 Degree C to 649 Degree C) |
| Maximum Pressure | Stainless steel up to 6000 psig (413 bar) Alloy C-276 up to 6000 psig (413 bar) Alloy 400 up to 5000 psig (345 bar) |
| Orifice Size | 0.157 in. (4.0 mm) CV 0.35 |
Key Features
- Testing for every valve with nitrogen at the maximum working pressure
- Upper stem and lower stem design, Stem threads above packing protected from system media
Product Description
3 Valve Manifolds-Instrumentation Manifolds Orifice Size 157 in. (4.0 mm), 3M-303 are designed for differential pressure applications. 3-valve manifolds is composed of three interrelated three valves. According to the function of each valve in the system, it can be divided into: high pressure valve on the left, low pressure valve on the right, and balance valve in the middle. 3 valve manifolds is used with differential transmitter to connect or disconnect the positive and negative pressure measuring chamber from the pressure point, or to connect or disconnect the positive and negative pressure measuring chamber
- Safety back seating seals in fully open position
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum pressure rating for the stainless steel and Alloy C-276 is up to 6000 psig (413 bar), while Alloy 400 has a maximum pressure of 5000 psig (345 bar).
The orifice size of this model is 0.157 in. (4.0 mm) with a flow coefficient (CV) of 0.35.
The manifold features PTFE packing suitable for temperatures from -65°F to 450°F (-54°C to 232°C) and graphite packing for temperatures from -65°F to 1200°F (-54°C to 649°C).
This model is designed for industrial applications, particularly in differential pressure measurement systems.
The manifold consists of three interrelated valves: a high pressure valve on the left, a low pressure valve on the right, and a balance valve in the middle.
The working temperature range for PTFE packing is from -65°F to 450°F (-54°C to 232°C).
Graphite packing can operate within a temperature range of -65°F to 1200°F (-54°C to 649°C).
The safety back seating seals are designed to protect the stem threads from system media when the valve is in the fully open position.
This manifold has three valves: a high pressure valve, a low pressure valve, and a balance valve, each serving a specific role in differential pressure applications.
The CV value of the orifice size is 0.35, indicating the flow capacity of the manifold.
Yes, the graphite packing allows the manifold to be used in high temperature applications, with a maximum temperature of 1200°F (649°C).
