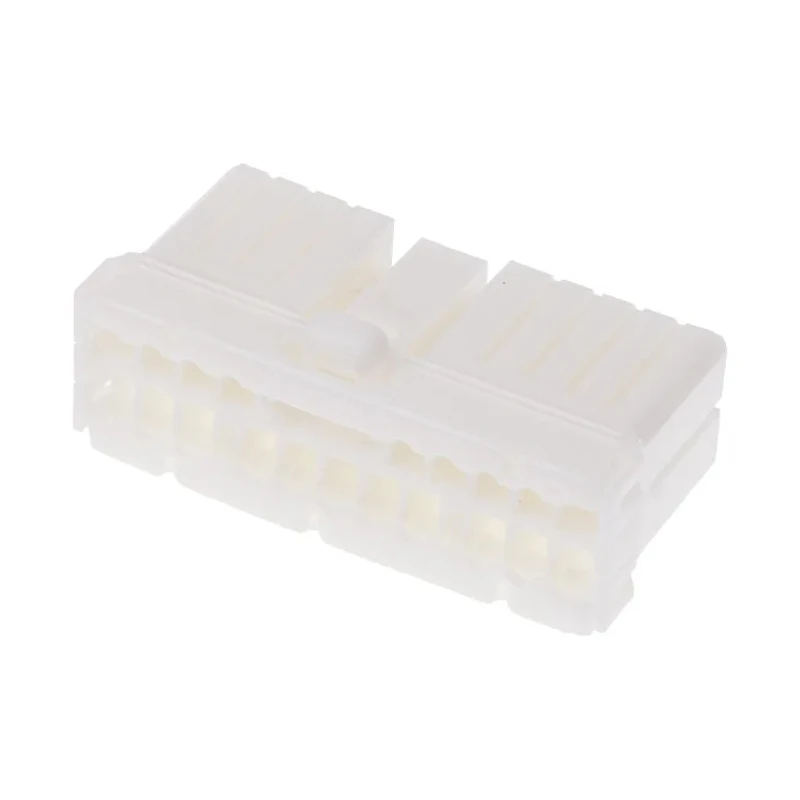

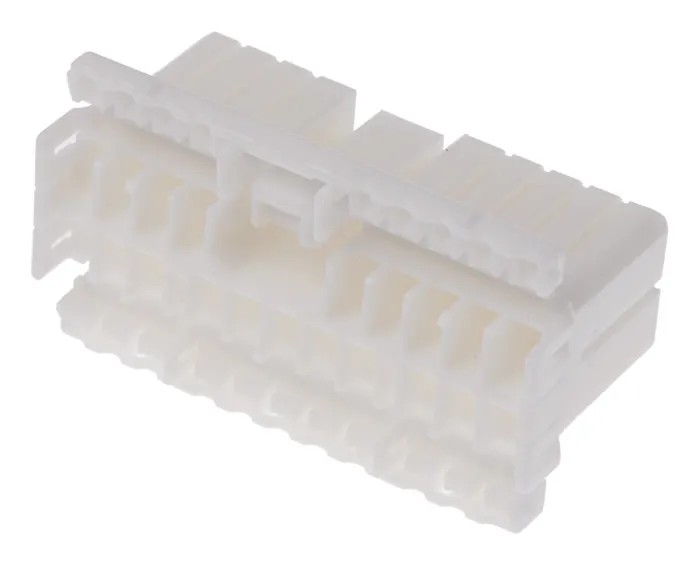

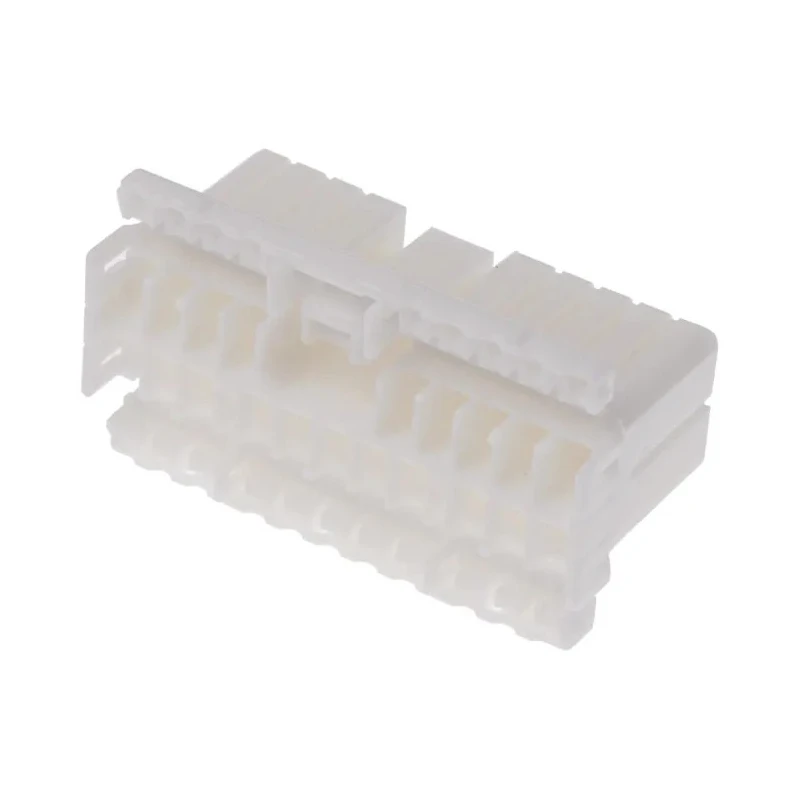

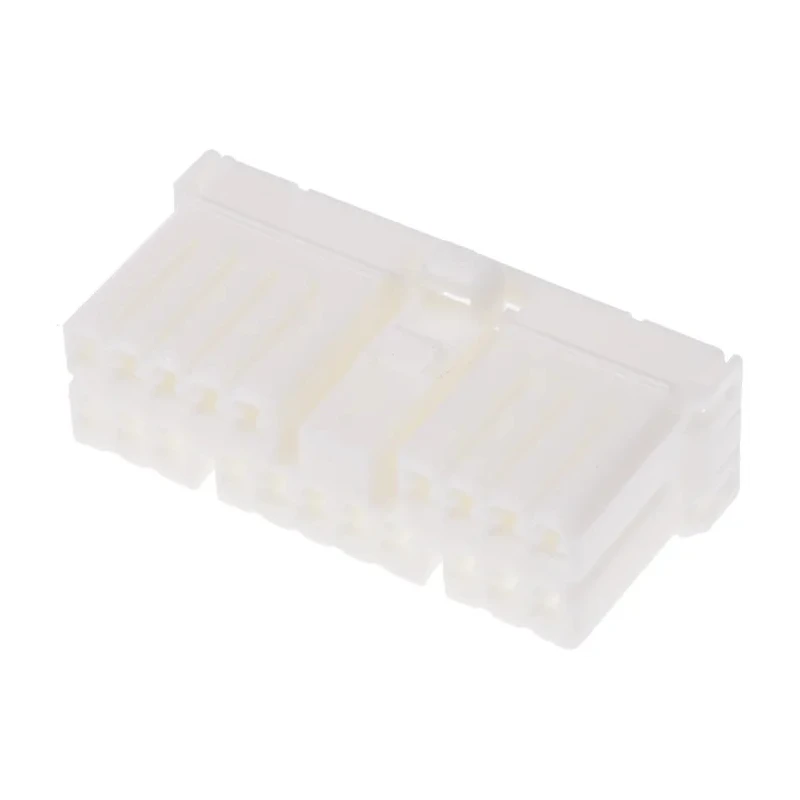

TE Connectivity MULTILOCK 070 Male Connector Housing 3.5 mm Pitch 20 Way 2 Row Straight 1-174952-1
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Orientation | Straight |
| Length | 45.8mm |
| Width | 26mm |
| Mount Type | Cable |
| Housing Material | Polybutylene Terephthalate |
| Series | MULTILOCK 070 |
| Interfaces | lance design |
| Number of Rows | 2 |
| Pitch | 3.5mm |
| For Use With | .070 Terminal For Power Circuit, Mixture of .040 Terminal For Signal Circuit |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 720-1178PBrand: TE ConnectivityManufacturers Part No.: 1-174952-1 |
| Number of Contacts | 20 |
| Connector Gender | Male |
Key Features
- The connector features a compact and durable design suitable for automotive and power circuit use.
- It provides a high-density 3.5 mm contact center for efficient wiring.
- The housing material is Polybutylene Terephthalate ensuring robust performance.
- Integral double locking system secures contact retention and prevents partial insertion.
- Designed with housing lance technology to protect contacts from KOJIRI action damage.
- Supports use with .070 terminals for power circuits and .040 terminals for signal circuits.
Product Description
TE Connectivity 1-174952-1 MULTILOCK 070 Male Connector Housing is an automotive-grade connector designed for wire-to-wire and wire-to-board applications. It features a 3.5 mm pitch, 20 contact positions arranged in 2 rows, and a straight orientation for cable mounting. The housing uses Polybutylene Terephthalate material known for durability and resistance to mechanical stress.
The MULTILOCK 070 series is miniaturized with a compact design for high-density applications, providing reliable and secure electrical connections in automotive powertrain, safety, convenience, and chassis systems. Its housing lance design protects contacts against damage caused by rocking motions (KOJIRI action) during mating and unmating.
With an integral double locking mechanism on the wire side, it ensures secure contact retention and prevents partial insertion. The locking mechanism utilizes a two-piece double lock plate for enhanced reliability. The connector is compatible with .070 terminals for power circuits and mixed .040 terminals for signal circuits.
This connector housing is ideal for demanding automotive and industrial electrical systems requiring high performance and ruggedness. It offers efficient contact protection, ease of handling, and secure locking essential for modern electronic assemblies.
Compact and durable design for automotive applications. High-density 3.5 mm pitch with 20 contacts in 2 rows. Polybutylene Terephthalate housing material for reliability. Housing lance design protects contacts against KOJIRI action damage.
Integral double lock system prevents partial insertion of contacts. Compatible with .070 terminal for power and .040 terminal for signal circuits.
Choose this TE Connectivity MULTILOCK 070 Connector Housing for secure, reliable, and compact electrical connections in automotive and industrial wiring systems. Explore similar connector solutions and wiring accessories at EnvMart for enhanced electronic assembly productivity.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The pitch of the MULTILOCK 070 Male Connector Housing is 3.5 mm.
This model features 20 contact positions arranged in 2 rows.
The housing is made from Polybutylene Terephthalate, which provides durability and resistance to mechanical stress.
It is compatible with .070 terminals for power circuits and a mixture of .040 terminals for signal circuits.
The connector is designed with a straight orientation for cable mounting.
The dimensions of the connector housing are 45.8 mm in length and 26 mm in width.
The connector features an integral double locking mechanism that secures contact retention and prevents partial insertion.
This connector is designed for automotive and industrial electrical systems, particularly in powertrain, safety, convenience, and chassis systems.
The mounting type for this connector is cable.
The housing lance design protects the contacts against damage caused by KOJIRI action during mating and unmating.
The connector housing is manufactured in India.
This connector belongs to the MULTILOCK 070 series.
