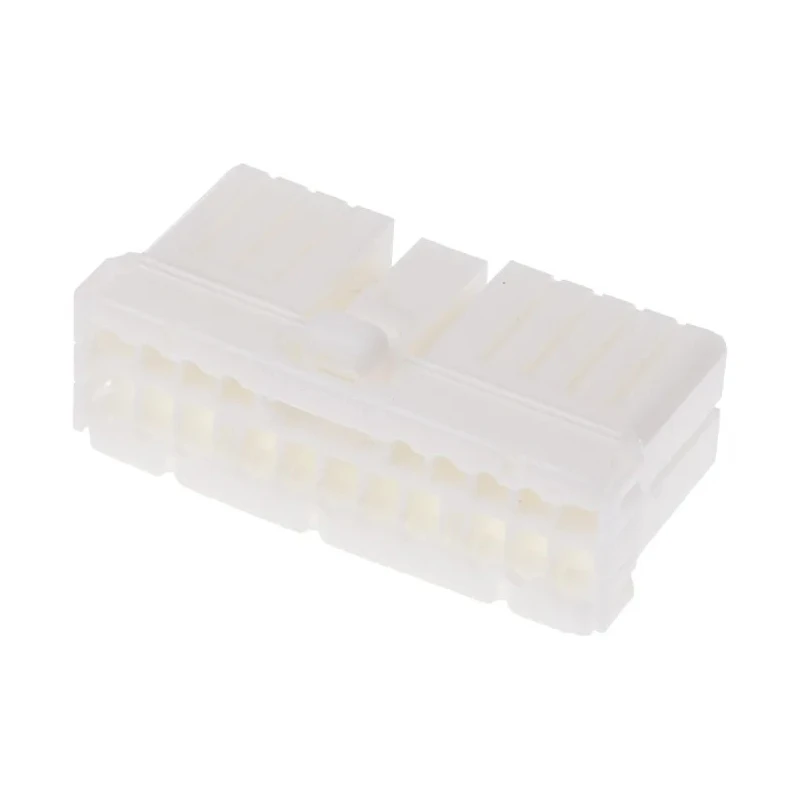

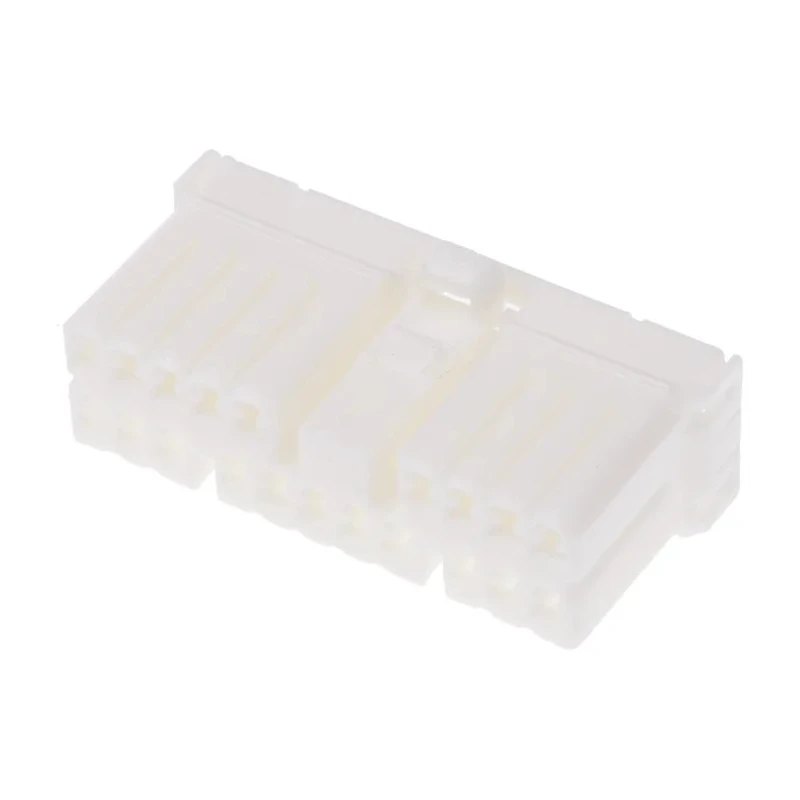

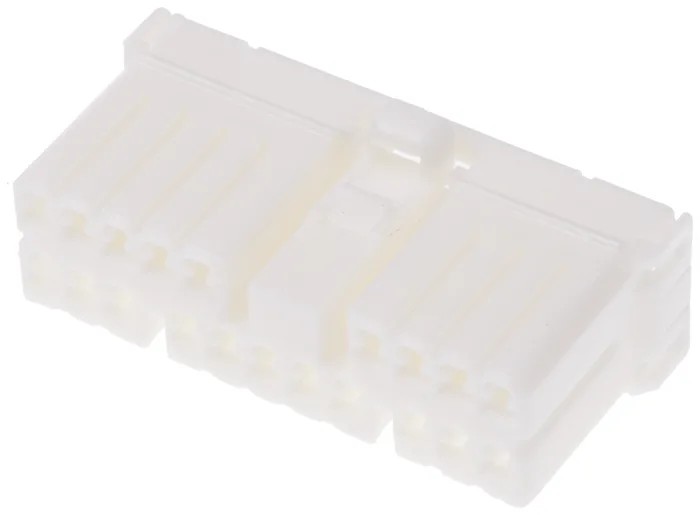

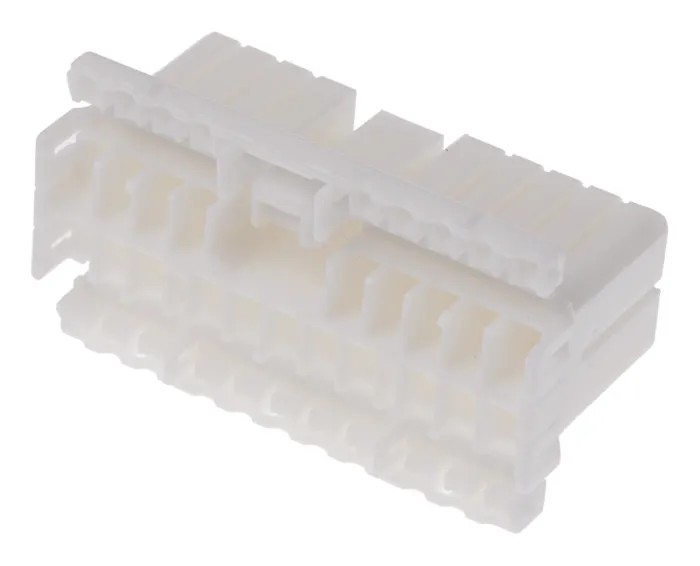

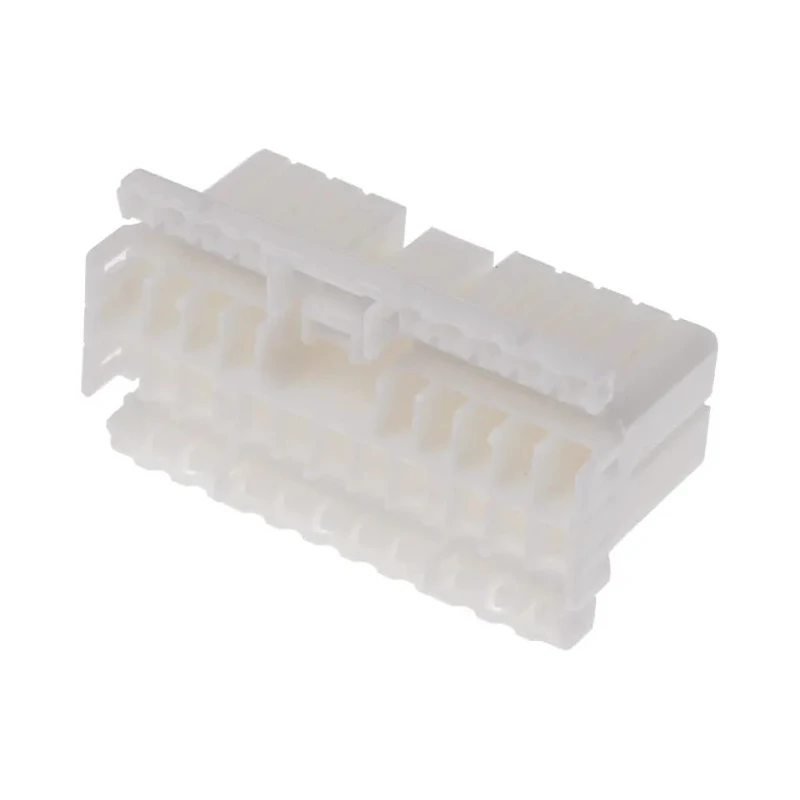

TE Connectivity MULTILOCK 070 Male Connector Housing 3.5 mm Pitch 20 Way 2 Row Straight 1-174952-1
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Orientation | Straight |
| Length | 45.8mm |
| Width | 26mm |
| Mount Type | Cable |
| Housing Material | Polybutylene Terephthalate |
| Series | MULTILOCK 070 |
| Interfaces | lance design |
| Number of Rows | 2 |
| Pitch | 3.5mm |
| For Use With | .070 Terminal For Power Circuit, Mixture of .040 Terminal For Signal Circuit |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 720-1178Brand: TE ConnectivityManufacturers Part No.: 1-174952-1 |
| Number of Contacts | 20 |
| Connector Gender | Male |
Key Features
- The connector features a compact and durable design suitable for wire to wire and wire to board connections.
- It has a secure integral double locking system ensuring reliable contact retention.
- The housing is made of Polybutylene Terephthalate providing robust mechanical and environmental protection.
- The 3.5 mm pitch and high density 20 contact layout facilitate miniaturized designs.
- The locking mechanism prevents partial insertion and secures contacts effectively.
- This connector is designed for use with .070 terminal power circuits and .040 terminal signal circuits.
- The straight orientation and cable mount type support versatile installation.
- Suitable for automotive powertrain, safety, security, and convenience systems.
Product Description
TE Connectivity 1-174952-1 MULTILOCK 070 Male Connector Housing is engineered for automotive and electronic components, offering a high-density 20-way 2-row configuration with a 3.5 mm pitch. This Connector Housing suits cable mount applications and accommodates both power (.070 terminal) and signal (.040 terminal) circuits for robust and reliable electrical connections.
The compact and durable design ensures ease of handling and installation in confined spaces. Built from Polybutylene Terephthalate, the housing delivers strong mechanical resilience and protection against environmental factors.
Featuring an integral double locking system, the connector provides secure contact retention and prevents partial insertions. The housing lance design supports lanceless contacts, minimizing deformation and tangling typically encountered during assembly.
Additionally, the housing safeguards contacts from KOJIRI Action damage, a rocking motion effect common during mating and unmating, thus enhancing long-term connection reliability.
The MULTILOCK 070 series covers automotive powertrain systems, safety, security, convenience, driver information, body, and chassis applications. Its versatile straight orientation with cable mounting facilitates flexible integration in complex wiring harnesses.
Compact, durable housing design for automotive connectors. High density 3.5 mm pitch with 20 contacts in 2 rows. Integral double locking mechanism for secure retention. Polybutylene Terephthalate material for robust protection.
Protects contacts against KOJIRI Action damage in use. Lance design supports use of lanceless contacts. Supports power and signal circuits with mixed terminals. Suitable for wire to wire and wire to board applications. Enables reliable connections in automotive electrical systems.
Facilitates safety, convenience, and driver information uses.
This product is ideal for industrial, automotive, and manufacturing sectors requiring compact, secure, and high-density connector solutions. Explore related TE Connectivity connectors and components on EnvMart for comprehensive electrical integration needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The pitch of this connector housing is 3.5 mm.
It supports a total of 20 contacts in a 2-row configuration.
The housing is made of Polybutylene Terephthalate, providing mechanical and environmental protection.
It is designed for use with .070 terminal power circuits and .040 terminal signal circuits.
The connector housing has a straight orientation.
The dimensions are 45.8 mm in length and 26 mm in width.
It is designed for cable mounting applications.
It features an integral double locking system that ensures secure contact retention and prevents partial insertions.
It is suitable for automotive powertrain, safety, security, and convenience systems.
The connector gender is male.
The housing is designed to protect contacts against KOJIRI Action damage during mating and unmating.
Yes, the lance design of the housing supports the use of lanceless contacts.
