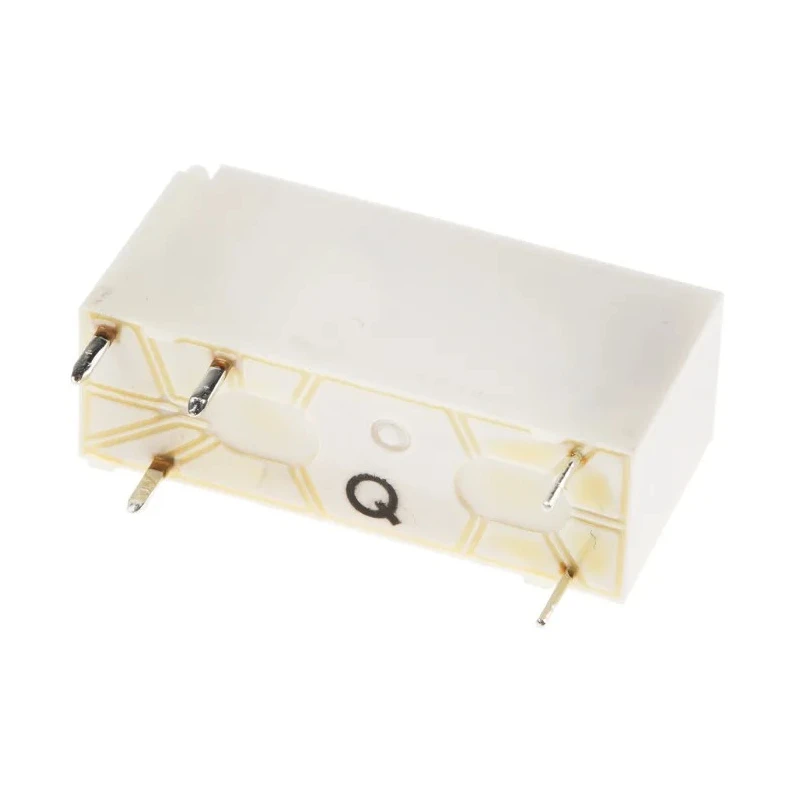

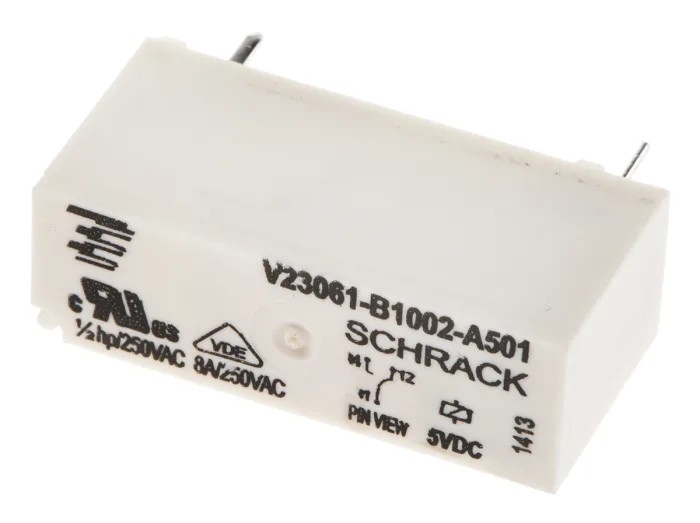

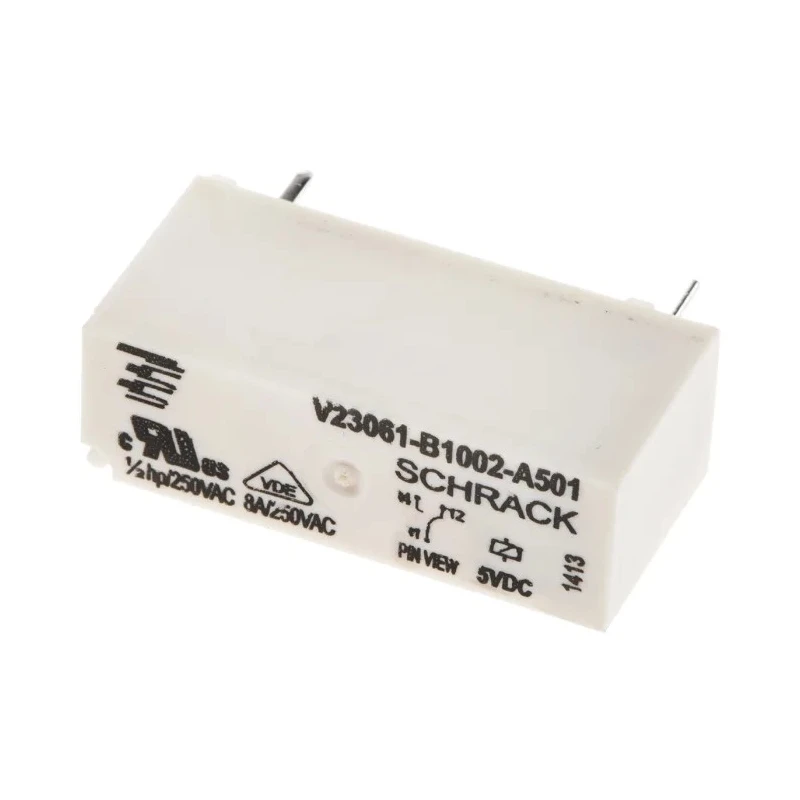

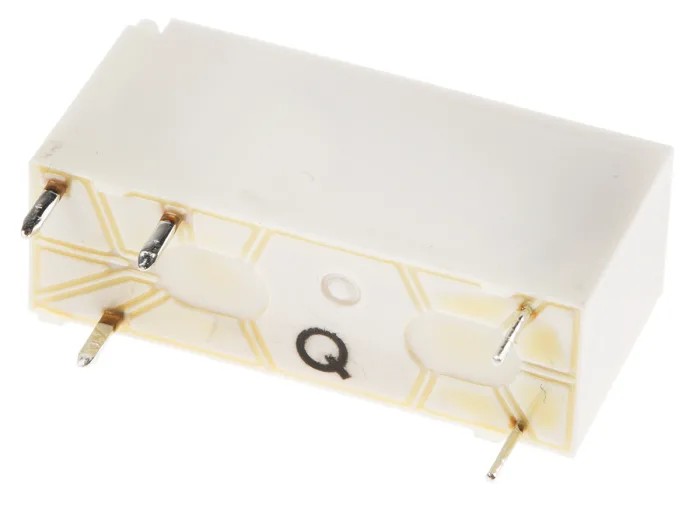

TE Connectivity PCB Power Relay 5V DC Coil 8A Switching Current SPDT V23061B1002A501
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Height | 15mm |
| Length | 30mm |
| Model | V23061B1002A501 |
| Width | 10mm |
| Mount Type | PCB |
| Contact Material | Silver Alloy |
| Series | MSR |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 8A |
| Terminal type | Solder |
| Standards/Approvals | VDE, UL, RoHS, REACH |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 719-6335Brand: TE ConnectivityManufacturers Part No.: V23061B1002A501 |
| Coil Resistance | 118Ω |
| Coil Voltage | 5V dc |
| Switching AC Voltage | 400V ac |
| Coil Power | 220mW |
Key Features
- Operates with a coil voltage of 5V DC for efficient power control.
- Features SPDT contact configuration providing versatile switching options.
- Capable of handling a maximum switching current of 8A and switching AC voltage up to 400V AC.
- Compact PCB mount design measures 30mm x 15mm x 10mm for space-saving installation.
- Durable silver alloy contact material ensures high performance and longevity.
- Wide operating temperature range from -40°C up to 85°C supports various industrial environments.
- Low coil power consumption of 220mW promotes energy efficiency.
- Terminal type suited for soldering enables secure PCB connection.
Product Description
TE Connectivity V23061B1002A501 PCB Power Relay is a high-quality miniature power relay specifically designed for printed circuit board applications requiring reliable switching of loads up to 8A. The relay features a 5V DC coil voltage and SPDT (Single Pole Double Throw) contact configuration, making it versatile across diverse electrical and automation systems.
This relay offers robust performance with a maximum switching AC voltage of 400V and a switching power capacity of 2kVA. Its durable silver alloy contacts enable excellent conductivity and withstand high inrush currents, ensuring consistent operation in demanding industrial settings.
The relay's compact dimensions of 30 mm length, 15 mm height, and 10 mm width allow for efficient PCB mounting in space-constrained environments. It operates reliably across a wide temperature range from -40°C to +85°C, making it suitable for industrial, commercial, electrical panels, manufacturing control systems, and automation equipment.
Energy-efficient coil design consumes only 220mW power and mounts through-hole with solder terminals, facilitating easy assembly. The white plastic enclosure provides wash-tight protection to ensure durability and protection against environmental effects.
The V23061B1002A501 model complies with international safety and environmental standards including VDE, UL, RoHS, and REACH, confirming its quality assurance and regulatory compliance.
Operates with 5V DC coil voltage for power efficiency. SPDT contact configuration for versatile switching applications. Supports 8A switching current and 400V AC switching voltage. Compact PCB mount form factor, 30mm x 15mm x 10mm dimensions.
Silver alloy contacts ensure reliable conductivity and durability. Wide operational temperature from -40°C to 85°C for harsh environments. Low coil power consumption at 220mW conserves energy. Solder terminal type for secure mounting and electrical connection.
Meets VDE, UL, RoHS, and REACH standards for safety and compliance.
This TE Connectivity PCB Power Relay is widely used in industrial automation, electrical equipment control, HVAC systems, manufacturing machinery, and similar electronic control applications requiring dependable relay switching performance. Browse additional Power Relays and contactors in the Electronics & Electricals category on EnvMart for more solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The relay is capable of handling a maximum switching current of 8A.
It operates with a coil voltage of 5V DC.
This model features a Single Pole Double Throw (SPDT) contact configuration, providing versatile switching options.
It can switch AC voltage up to 400V AC.
The compact PCB mount design measures 30mm in length, 15mm in height, and 10mm in width.
The coil power consumption is low at 220mW, promoting energy efficiency.
It operates reliably across a wide temperature range from -40°C to +85°C.
It has solder terminals, which enable secure PCB connections.
The contacts are made of durable silver alloy, ensuring reliable conductivity.
It complies with international safety and environmental standards including VDE, UL, RoHS, and REACH.
This relay is widely used in industrial automation, electrical equipment control, HVAC systems, and manufacturing machinery.
The model number is V23061B1002A501.
