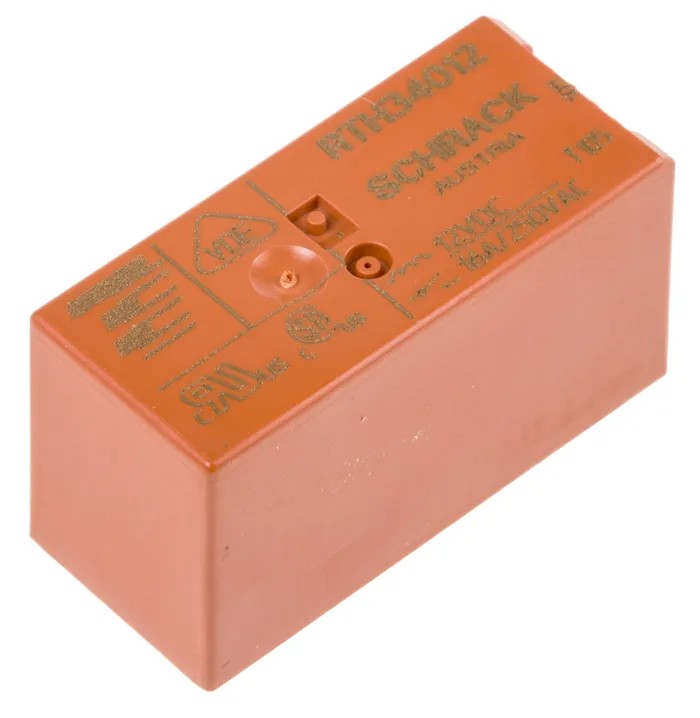

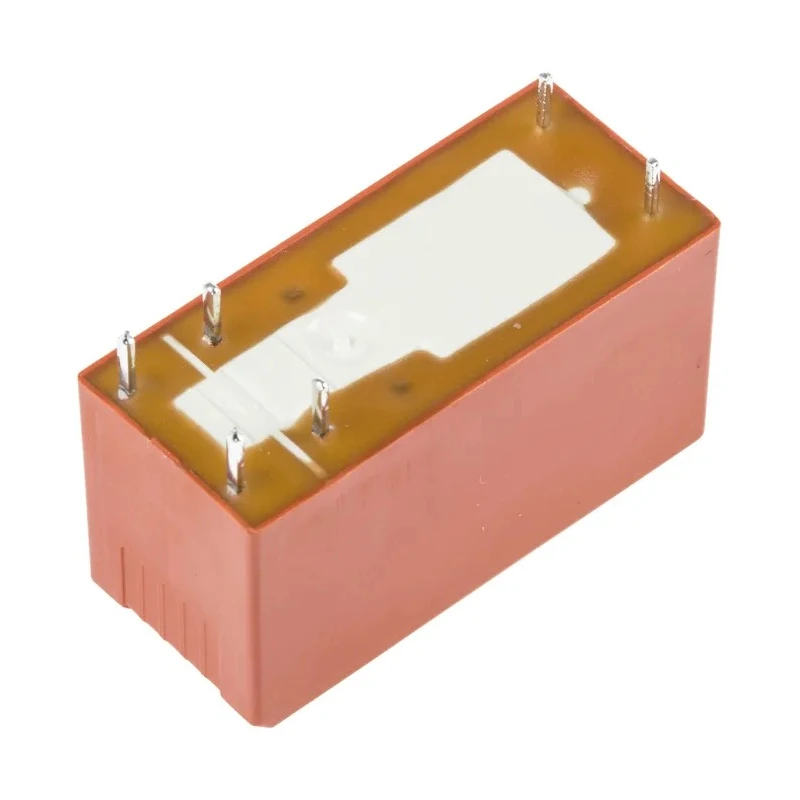

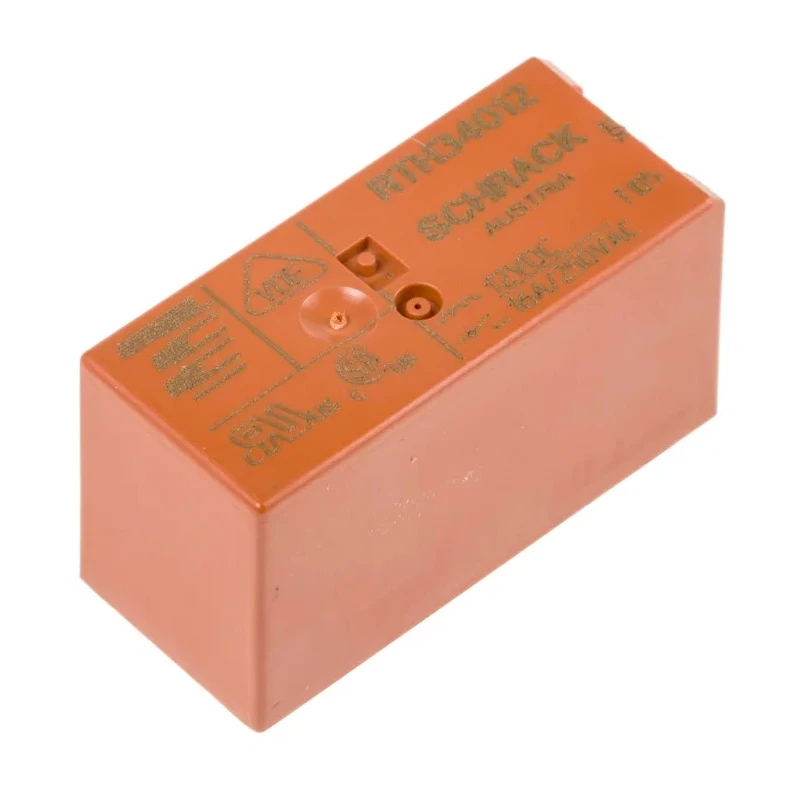

TE Connectivity PCB Power Relay, 12V dc Coil, 16A Switching Current, SPST RTH34012
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Height | 15.7mm |
| Length | 29mm |
| Model | RTH34012 |
| Width | 12.7mm |
| Mount Type | PCB |
| Contact Material | Silver Alloy |
| Series | RTH |
| Maximum Operating Temperature | 105°C |
| Contact Configuration | SPST |
| Minimum Operating Temperature | -40°C |
| Switching Current | 16A |
| Terminal type | Solder |
| Standards/Approvals | REACH, ELV, CSA, VDE, UL, RoHS |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 718-1759PBrand: TE ConnectivityManufacturers Part No.: RTH34012 |
| Coil Resistance | 360Ω |
| Coil Voltage | 12V dc |
| Switching AC Voltage | 400V ac |
| Coil Power | 400mW |
Key Features
- High temperature PCB power relay suitable for up to 105°C ambient operation.
- Through hole PCB mount with 5mm pinning and flux tight orange enclosure.
- Sensitive coil rated at 400mW power consumption.
- Reinforced insulation with RTII flux proof design and creepage clearance of 10mm.
- Contact material made of silver alloy ensuring reliable conductivity.
- Switching power rating of 4kVA and switching AC voltage rated at 400V AC.
- Applications include oven control and cooking plate control for industrial use.
- Coil resistance of 360Ω for efficient operation.
Product Description
TE Connectivity RTH34012 PCB Power Relay features a 12V dc coil voltage and supports a switching current of 16A with SPST contact configuration. The relay is designed for demanding industrial, laboratory, and commercial applications including oven and cooking plate control where high temperature operation up to 105°C ambient is required.
This RTH series relay offers reliable through hole PCB mounting with 5mm pinning and a flux tight orange enclosure ensuring protection against flux contamination. Its sensitive coil requires only 400mW power making it energy efficient for PCB designs.
The relay’s reinforced insulation and RTII flux-proof design provide enhanced safety, supported by creepage and clearance distances of 10mm. Contact material is silver alloy ensuring excellent electrical conductivity and durability in switching operations.
With a switching power of 4kVA and switching AC voltage capacity of 400V AC, this relay is suitable for robust electrical loads. Precise dimensions of length 29mm, width 12.7mm, and height 15.7mm facilitate installation in compact PCB layouts. The coil resistance of 360Ω contributes to its optimal performance.
High temperature operation capability up to 105°C. Through hole PCB mount with 5mm pinning and flux tight enclosure. 400mW sensitive coil power consumption. Reinforced insulation and RTII flux proof design. 10mm creepage and clearance for enhanced safety.
Silver alloy contact material for reliable conductivity. 4kVA switching power and 400V AC switching voltage. Dimensions: 29mm length, 12.7mm width, 15.7mm height. Coil resistance of 360Ω. Certified to REACH, ELV, CSA, VDE, UL, and RoHS standards.
TE Connectivity offers this RTH34012 power relay as a reliable and high-performance solution for industrial automation and electrical control systems. Explore more Power Relays and electrical components at EnvMart for your demanding industrial projects.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating temperature of this relay is 105°C.
This model has a switching current capacity of 16A.
It features a Single Pole Single Throw (SPST) contact configuration.
The relay requires a coil voltage of 12V DC.
The coil resistance of this relay is 360Ω.
The dimensions are 29mm in length, 12.7mm in width, and 15.7mm in height.
It has a switching AC voltage rating of 400V AC.
The coil power consumption is 400mW.
The contact material is made of silver alloy, ensuring reliable conductivity.
This relay is certified to REACH, ELV, CSA, VDE, UL, and RoHS standards.
It uses a through hole PCB mount with 5mm pinning.
It is suitable for applications such as oven control and cooking plate control in industrial settings.
