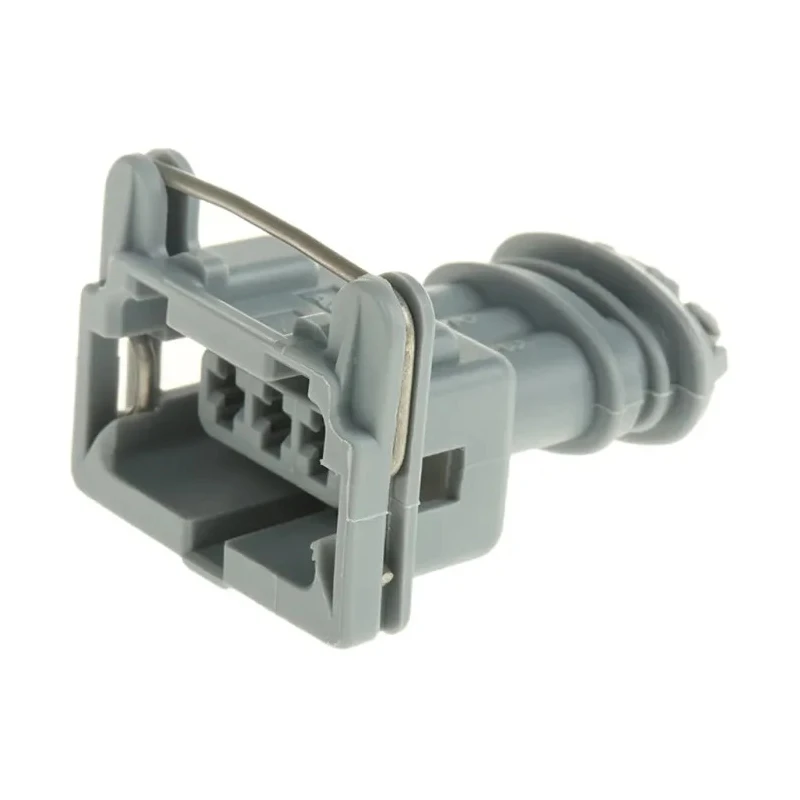

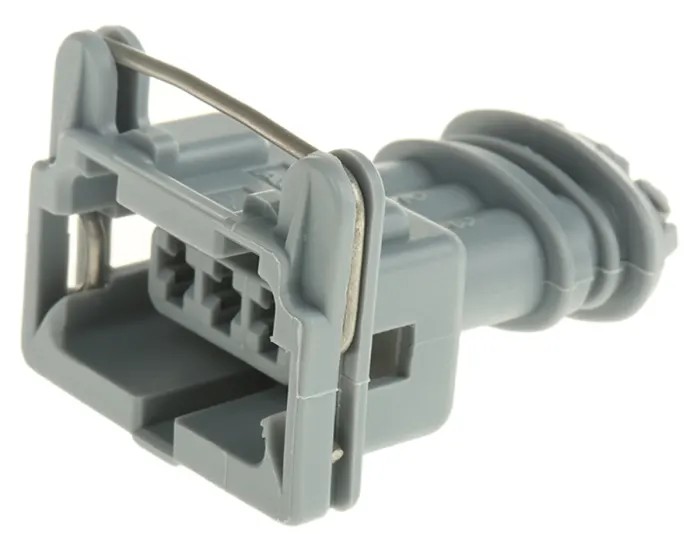

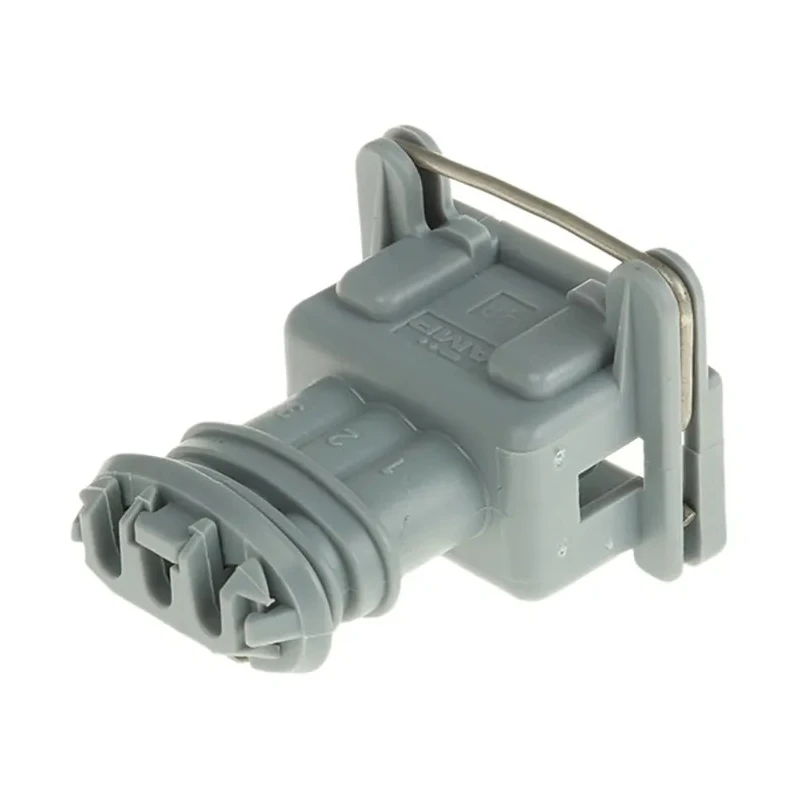

TE Connectivity Junior Power Timer Automotive Connector Female Grey Cable 3 Way Crimp Termination 282191-2

TE Connectivity presents the 282191-2 Junior Power Timer Automotive Connector, a female 3-way crimp termination housing designed for demanding automotive electrical connections. This connector is built with a robust grey nylon housing, ensuring mechanical strength and electrical insulation suitable for harsh automotive environments.

The Junior Power Timer series connector housings feature a secondary locking mechanism for enhanced terminal retention, maintaining reliable electrical contacts during vehicle operation. The receptacle style housings accommodate socket contacts with a 5 mm pitch and are designed for precise and secure connections in wire-to-board and wire-to-device applications.

The connector supports a high current rating of 30A and is constructed to meet stringent ingress protection standards including IPx9K, IP54K, IP64K, IP67, IP69K, and IP6K9K, making it resistant to water, dust, and other environmental contaminants. Its operating temperature range from -30°C up to 125°C makes it well suited for automotive and industrial environments with wide thermal variations.

With compact dimensions of approximately 24.5 mm height, 30.4 mm width, and 38.2 mm depth, this connector easily fits into complex wiring layouts. It is ideal for use in automotive electrical systems requiring reliable, sealed connections and conforms to industry standards for performance and durability.

Applications span automotive wiring harnesses, power distribution modules, and other rugged electrical interconnects requiring sealed, secure, and maintainable connections. The Junior Power Timer connector series is widely recognized for its quality and compatibility within automotive connector solutions.

The connector has 3 contact positions suitable for automotive applications. It features a female crimp termination type with cable mount. Rated for a current of 30A for reliable electrical performance. Constructed with grey nylon housing material for durability and insulation.

Designed with IP ratings including IPx9K, IP54K, IP64K, IP67, IP69K, and IP6K9K for high ingress protection. Operates in temperature range from -30°C minimum to 125°C maximum. Includes a secondary locking mechanism ensuring secure terminal retention.

Compact size with dimensions approximately 24.5mm height, 30.4mm width, and 38.2mm depth. Compatible with Junior Power Timer series contacts and connectors, pitch 5 mm. Suitable for wire-to-board and wire-to-device connector systems in automotive use.

Explore the TE Connectivity Junior Power Timer Automotive Connector 282191-2 in EnvMart’s comprehensive electrical Connector category to enhance your automotive electrical design capabilities with trusted high-quality solutions.
